ZM-18H

Product catalog summary

Product Overview: The Z-LASERZM-18H is a high-end laser product designed for advanced applications in various fields such as science, bio photonics, optical data transmission, and more. It offers a range of optics including line, cross, parallel lines, dotted line, dot matrix, square, circle, and 10 circles.

Mounting: The product features an H8-M18 mounting system, ensuring easy integration into different setups.

Applications: This laser is suitable for a wide array of applications including machine vision, medical science, automotive industry, 3D measurement, metrology, spectroscopy, and alignment/positioning.

Features: The laser operates on 5-30VDC and can deliver powers up to 200mW. It supports red, infrared, and blue wavelengths, with Gaussian, uniform, and DOE optics available. It includes a simple external hand focusing mechanism and supports up to 20MHz analogue and TTL modulation. The device is IP67 rated, indicating full waterproof capability, and includes features like APC mode with current limit, temperature logging, built-in microcontroller, and serial interface. It also offers over-voltage and reverse polarity protection.

Mechanical Specifications: The laser has dimensions of 128mm x Ø 20mm, with a housing made of chromed brass and an anodised aluminium optic head. It weighs approximately 87g and offers electrical isolation with a potential-free housing.

Optical Specifications: The laser provides optical stability of 0.15% per °C and a wavelength shift of 0.25nm per °C. It has a focus range from 100mm to infinity and a beam divergence of ≤ 1mrad with dot optics. Pointing stability is maintained at < 15μrad per °C.

Environmental Conditions: The operating case temperature ranges from -10°C to +50°C, with a storage temperature range of -10°C to +80°C. It can handle humidity levels up to 90% non-condensing.

Electrical Specifications: The laser operates with a supply voltage of 5-30VDC, supporting APC and CC modes of operation. It includes modulation capabilities up to 20MHz and protection against reverse polarity, transient/ESD, and over-temperature.

Optics: The laser offers various optical configurations, including Gaussian and non-Gaussian profiles, elliptical or circular points, and DOE options.

Order Code: The order code structure includes family name, power, optic, wavelengths, and focus options.

Catalog excerpts

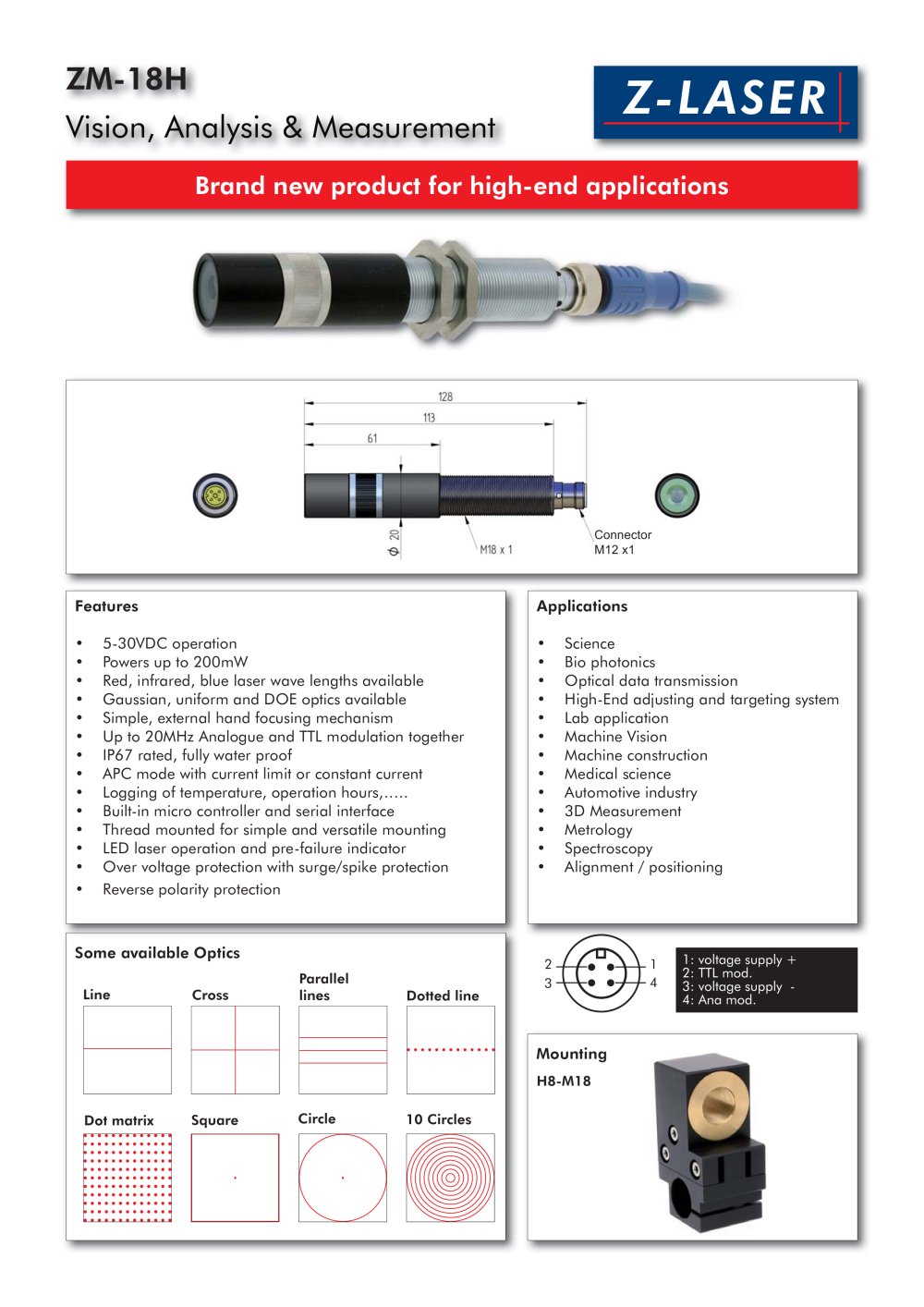

1234 1: voltage supply +2: TTL mod. 3: voltage supply - 4: Ana mod. LineCrossParallellinesDotted lineDot matrixSquareCircle10 Circles >

Open the catalog to page 1

Optical Optical stability0,15% / C Wavelength vs. temperatureTyp. 0,25nm / аC (635nm - 980nm) Range of focus100mm up to Divergence of beam 1mrad (with dot optic) Pointing stability< 15rad / C Optics Line (Gaussian profile)60а, 90, symmetrical or asymmetrical Line (Non Gaussian profile)10а, 20, 30а, 45, 60а,90 Pointelliptical or circular DOEsee examples on front side Standard wavelengths and power (other on request) 405nm, 440nm, 635nm, 640nm, 643nm, 660nm 785nm, 808nm, 850nm, 980nmup to 200mW depending on wavelengths Electrical Supply voltage5-30VDC Mode of operationAPC with current limiting...

Open the catalog to page 2
