Motorized Filter Wheel
Product catalog summary

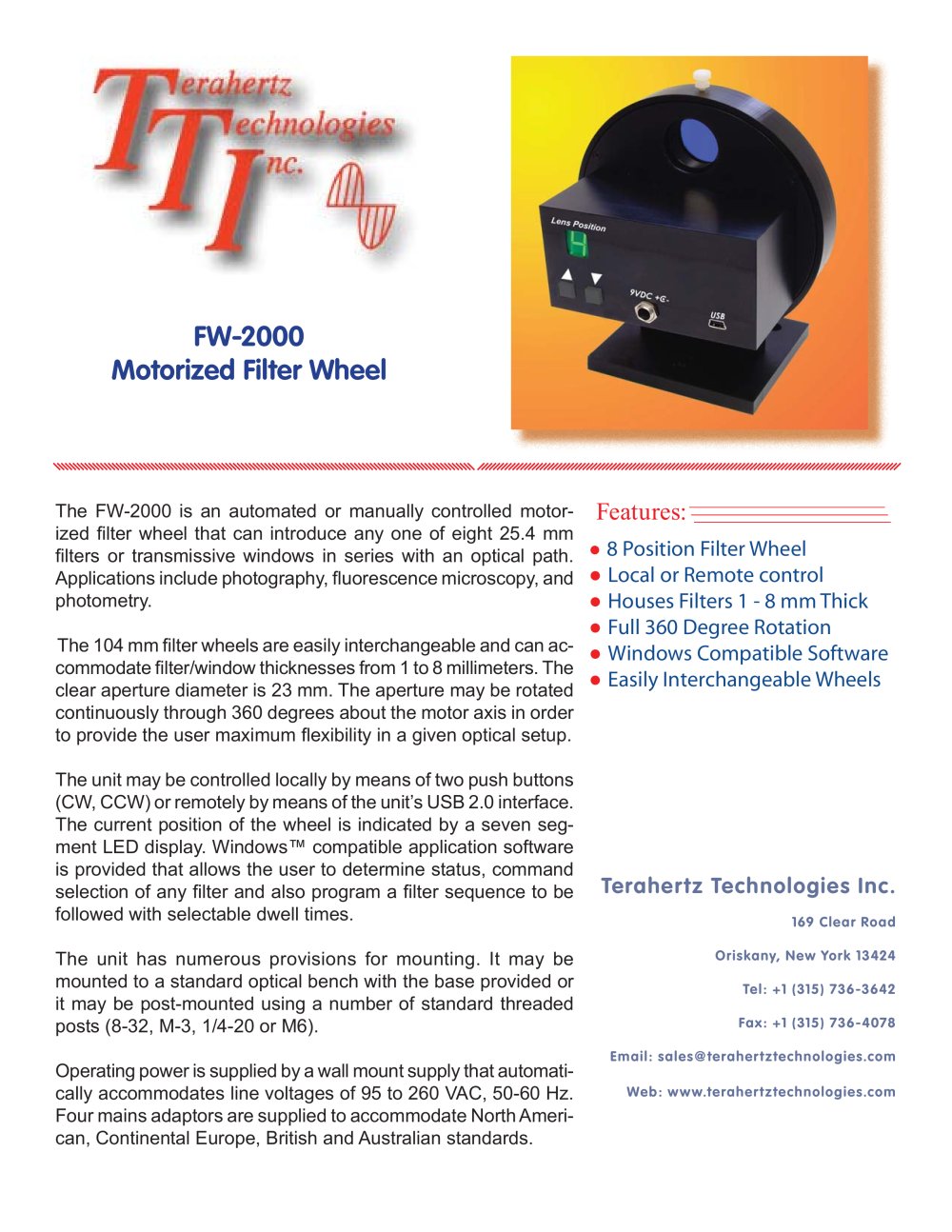

Overview: The FW-2000 is a motorized filter wheel designed for applications such as photography, fluorescence microscopy, and photometry. It supports both automated and manual control, allowing for the introduction of any one of eight 25.4 mm filters or transmissive windows into an optical path.
Specifications: The filter wheel accommodates filters/windows with thicknesses from 1 to 8 mm and has a clear aperture diameter of 23 mm. It allows for full 360-degree rotation about the motor axis, providing flexibility in optical setups. The unit is controlled via local push buttons or remotely through a USB 2.0 interface, with position indicated by a seven-segment LED display.
Features: The FW-2000 includes Windows-compatible software for status monitoring, filter selection, and programming filter sequences with selectable dwell times. It can be mounted on a standard optical bench or post-mounted using various threaded posts. The power supply accommodates global standards with mains adaptors for North America, Europe, Britain, and Australia.
Technical Details:
- Filter Settling Time: < 0.25 sec. to adjacent location, < 0.62 sec. to move 4 locations
- Power Requirements: < 10vA, 95-260VAC, 50-60Hz
- Dimensions: 4.8” Dia., 5.5”H, wheel house 0.75” thick
- Weight: 1.5 lbs.
- Operating Temperature Range: 0-40°C
Accessories: The package includes a USB cable, wall mount power supply, 8 retaining rings, manual, and application software.
Contact Information: Terahertz Technologies Inc., 169 Clear Road, Oriskany, New York 13424. Tel: +1 (315) 736-3642, Fax: +1 (315) 736-4078, Email: [email protected], Web: www.terahertztechnologies.com
