Serie VS
Serie VS
- Thrust capacity up to 5000 N.
- Insulation class II.
- Available in 230V AC / 50Hz and 120V AC / 60Hz configurations.
- Stroke lengths range from 100 mm to 300 mm, with 50 mm graduations.
- Protection class IP 54.
- Operating temperature range: -15°C to +40°C.
- Integral limit-switches for enhanced safety.
- Thermal overload protection.
- Modular design allows for customization.
- Recyclable materials used in manufacturing.
- Adjustable stroke or closed length options available.
- Linear feedback system with pulse-generator or potentiometer.
- Pneumatic control or extra-low-voltage safety control.
- Parallel connection mode for multiple drives.
- VS 18: Thrust 1800 N, Speed 10 mm/s, Power 1.5 A, Weight 4-5 kg.
- VS 25: Thrust 2500 N, Speed 14 mm/s, Power 2.0 A, Weight 8-9 kg.
- VS 40: Thrust 4000 N, Speed 16 mm/s, Power 3.2 A, Weight 9-10 kg.
- VS 50: Thrust 5000 N, Speed 16 mm/s, Power 3.6 A, Weight 10-11 kg.
Catalog excerpts

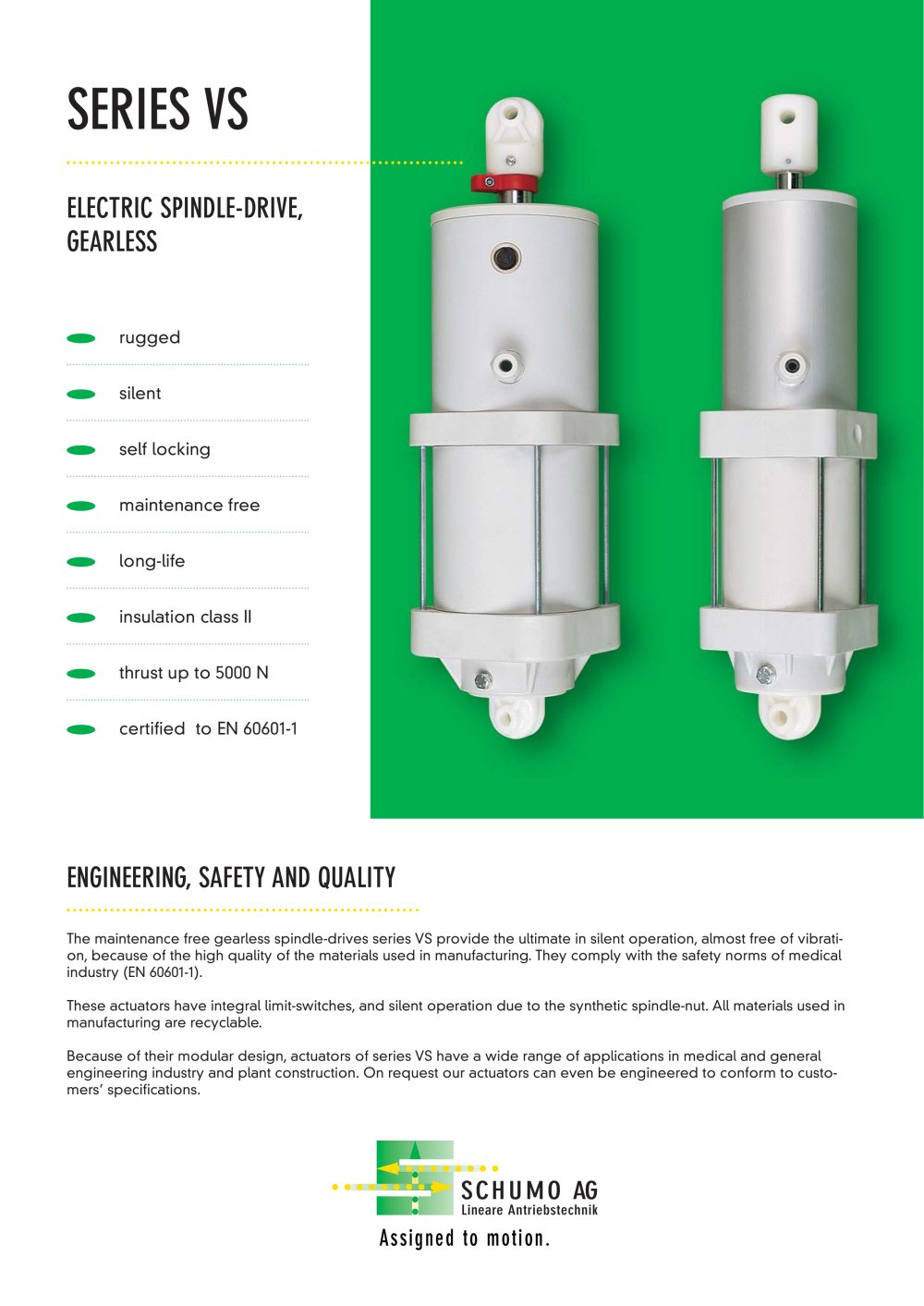

ELECTRIC SPINDLE-DRIVE, GEARLESS > ruggedsilent self locking maintenance free long-life insulation class II thrust up to 5000 N certified to EN 60601-1 ENGINEERING,SAFETY AND QUALITY > The maintenance free gearless spindle-drives series VS provide the ultimate in silent operation,almost free of vibrati-on,because of the high quality of the materials used in manufacturing. They comply with the safety norms of medical industry (EN 60601-1).These actuators have integral limit-switches,and silent operation due to the synthetic spindle-nut. All materials used inmanufacturing are recyclable.Because of their modular design,actuators of series VS have a wide range of applications in medical and generalengineering industry and plant construction. On request our actuators can even be engineered to conform to custo- mers specifications. SCHUMO AG Lineare Antriebstechnik Assigned to motion. size="-2">
