Overview

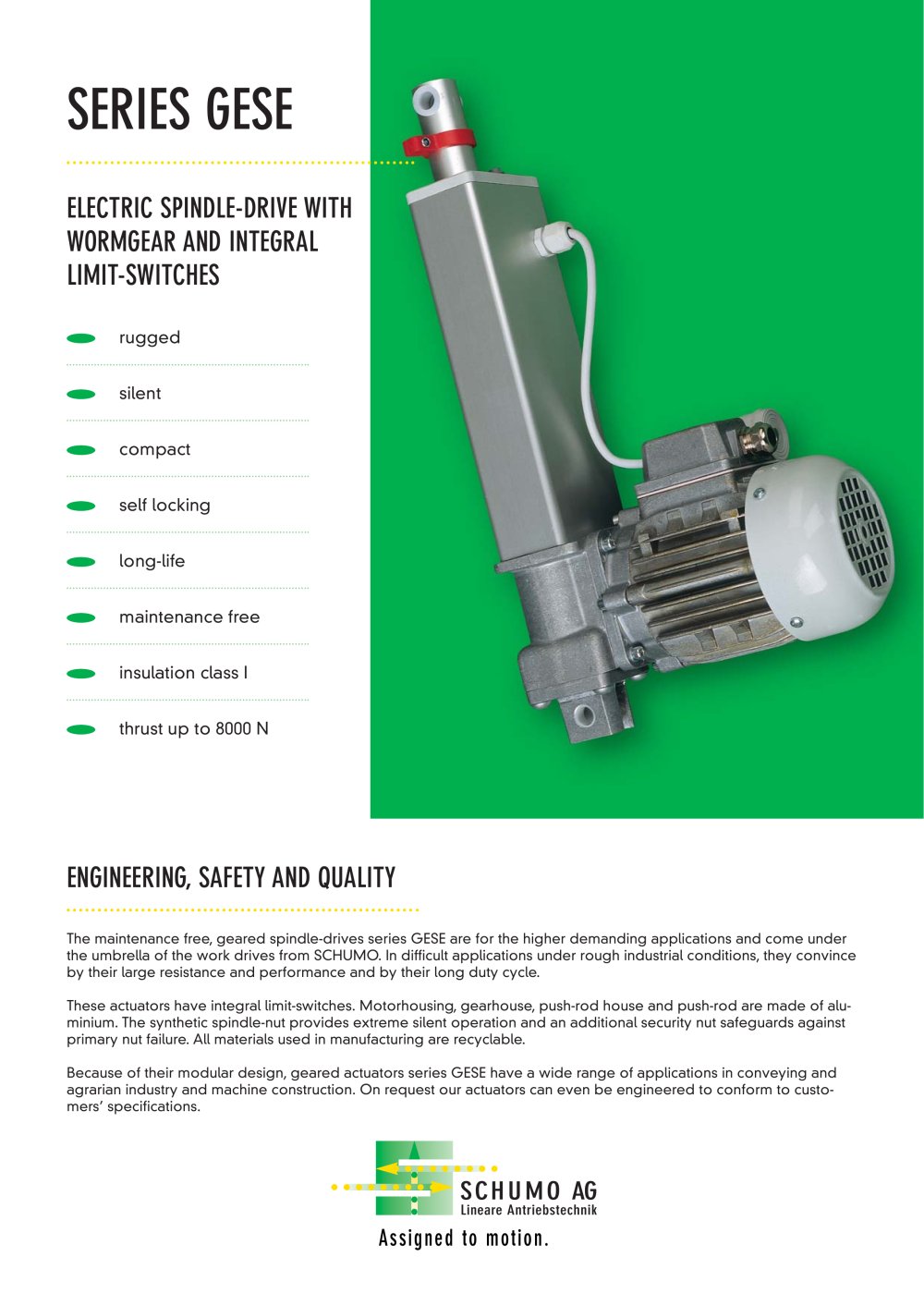

The GESE series geared spindle-drives by SCHUMO AG are designed for demanding applications, particularly in harsh industrial environments. These actuators are maintenance-free, durable, and offer high performance with a long duty cycle. They feature integral limit-switches and are constructed from recyclable materials, including aluminum for the motor housing, gearhouse, push-rod house, and push-rod.

Specifications

• Thrust capacity: Up to 8000 N
• Insulation class: I
• Protection class: IP 54
• Operating temperature: -15°C to +40°C
• Weight: 6 - 8 kg
• Stroke range: 100 - 400 mm
• Closed length: Stroke + 195 mm
• Short duty cycle: 15 min. operation / 45 min. pause
• Intermittent duty cycle: 30% based on service S2: 10 min.

Features

• Rugged, silent, compact, and self-locking design
• Thermal overload protection
• Adjustable switchring on push-rod
• Aluminum forked clevis on motor side

Options

• 400V / 230V (three-phase)
• Reduced speed
• Stroke reduction
• Custom stroke lengths and closed lengths
• Forkhead on push-rod side
• Pulse-generator
• Handcrank

Performance Types

• N00-60: 8000N thrust, 7 mm/s speed, 1.6A power
• N02-60: 6000N thrust, 14 mm/s speed, 2.2A power
• N04-80: 8000N thrust, 5 mm/s speed, 1.6A power

Applications
The modular design of the GESE series makes them suitable for a wide range of applications in the conveying, agrarian industry, and machine construction. Custom engineering is available to meet specific customer requirements.

Contact Information
SCHUMO AG, Lineare Antriebstechnik, Industriestr. 18, Postfach 778, CH-8910 Affoltern a. Albis
Phone: +41 (0)1 - 761 84 40
Fax: +41 (0)1 - 761 84 67
Email: [email protected]
Website: www.schumo.ch
