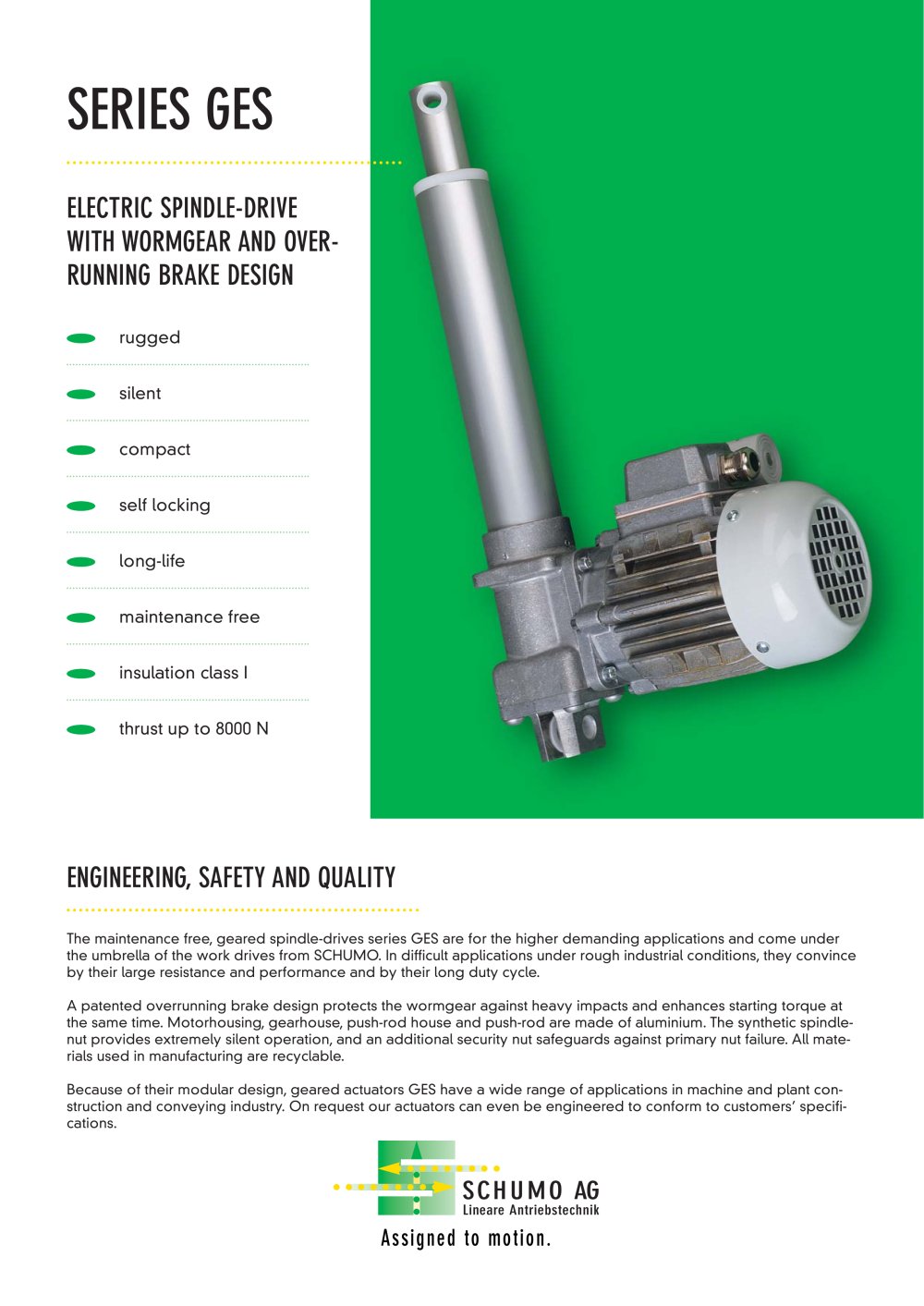

Overview: The GES series of maintenance-free geared spindle drives from SCHUMO are designed for demanding applications in harsh industrial environments. They are known for their durability, performance, and long duty cycles. The series features a patented overrunning brake design that protects the worm gear and enhances starting torque.

Materials and Design: The motor housing, gear house, push-rod house, and push-rod are made of aluminum, while the synthetic spindle nut ensures quiet operation. An additional security nut provides safety against primary nut failure. All materials used are recyclable. The modular design allows for a wide range of applications in machine and plant construction and the conveying industry.

Performance: The series includes various models with different thrust directions, speeds, and power requirements. For example, the M00-60 model provides a push thrust of 8000N at 7 mm/s with a power consumption of 1.6A.

Standard Fittings and Options: Standard fittings include thermal overload protection, a motor housing with a fan, and a push-rod with a drilled fixing hole. Optional features include three-phase power, reduced speed, varying stroke lengths, and additional accessories like a pulse-generator and hand crank.

Contact Information: SCHUMO AG, Lineare Antriebstechnik, Industriestr. 18, Postfach 778, CH-8910 Affoltern a. Albis. Phone: +41 (0)1 - 761 84 40, Fax: +41 (0)1 - 761 84 67, Email: [email protected], Website: www.schumo.ch
