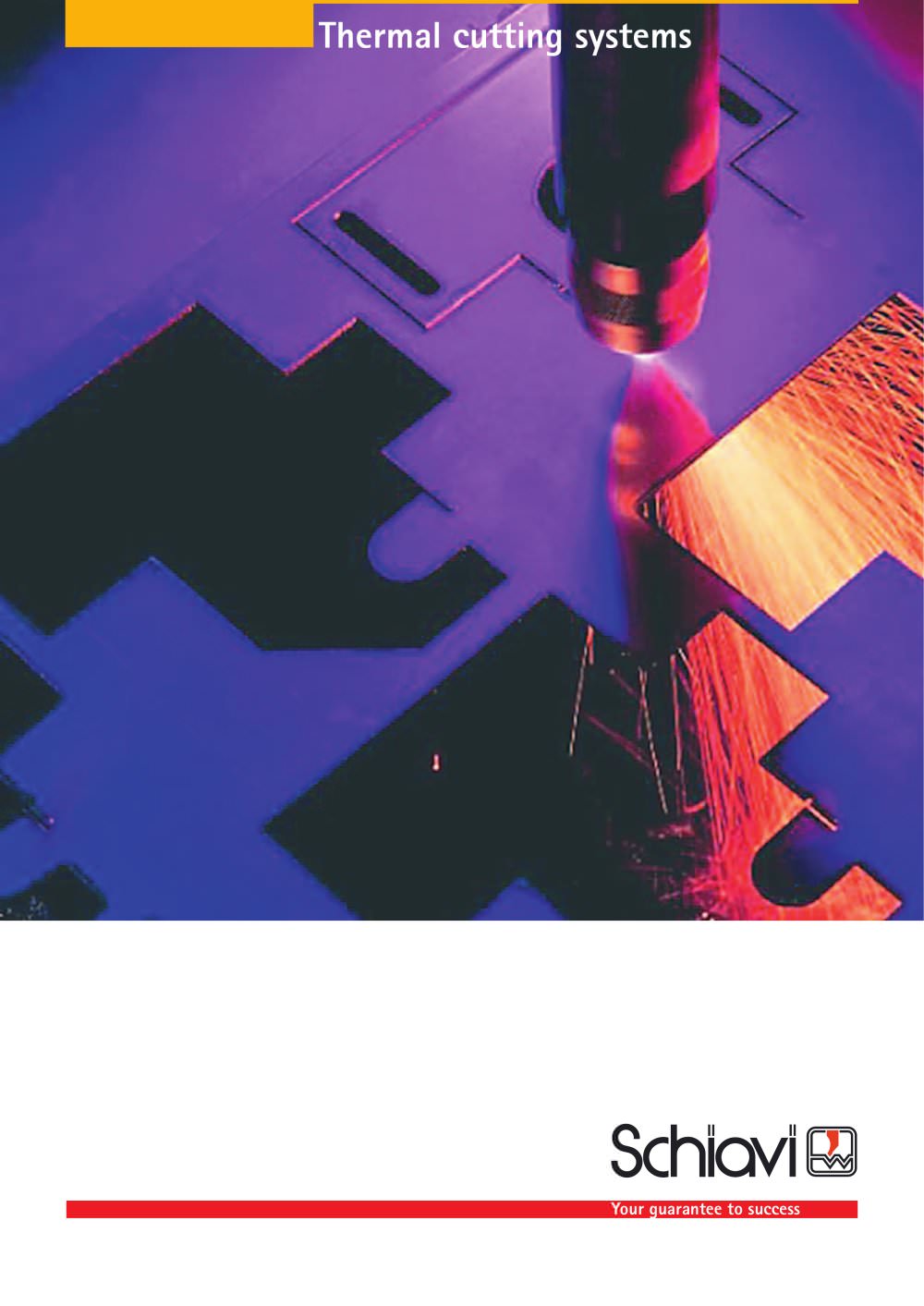

Thermal cutting systems

Product catalog summary

Overview: Schiavi Macchine Industriali provides advanced thermal cutting systems that integrate multiple manufacturing processes, enhancing production efficiency and flexibility. These systems are designed to meet diverse customer needs by combining cutting, punching, drilling, threading, and marking on a single machine.

Key Features:

Production Planning: Supports 'Just in Time' production, minimizing the need for storage of semi-processed materials.
Cost Control: Automation helps reduce handling and storage costs.
Operational Flexibility: Capable of processing large sheets with thicknesses ranging from 1 to 35 mm.
Quick ROI: Cycle time reduction by up to 40% ensures a fast return on investment.

Product Range: Schiavi offers a variety of models, including Blitz, Quasar, Beam, Flag, Space, Titan, ST40, Twin60, and Twin80, each designed for specific applications in industries such as railways, shipbuilding, and automotive.

Technological Advancements:

Plasma and Oxyfuel Technology: Provides high precision and quality cuts at competitive costs, comparable to laser technology.
Advanced Components: Incorporates brushless motors, digital drives, and NC for precise contouring.
Environmental Compliance: Equipped with systems to capture plasma dust and fumes, meeting antipollution standards.

Model Highlights:

Blitz: Suitable for medium/light plate processing with efficient dust and fume management.
Quasar: Designed for heavy plate processing with high-definition plasma options.
Beam: Offers high operational flexibility and precision for complex contouring.
Flag: Features a modular design for easy expansion and high-quality cuts.
Space: Ideal for large plates, suitable for railways and shipyards.
Titan: Focused on oxyfuel technology for thick plate processing.

Customer Support: Schiavi emphasizes customer care through training courses, a permanent showroom, and a well-stocked spare parts store to ensure machine reliability and quick problem resolution.

Plasma Cut Machines:

Technical Characteristics:

Models: Blitz, Quasar, Beam, Flag, Space
Working Range: Length from 3000 mm to 30000 mm; Width from 1500 mm to 3000 mm
Plasma Generators: Various amperage levels for cutting thicknesses up to 25 mm and piercing up to 38 mm
Dust Collection: Includes systems like movable troughs and aspirated tables
Torch Stand Off Control: Options include mechanical/pneumatic and automatic torch height control (THC)
Options: Drilling head, plasma marking, pneumatic marking

Oxyfuel Machine:

Technical Characteristics:

Model: Titan
Working Range: Length from 4000 mm upward; Width from 2500 to 4000 mm
Oxyfuel Head: Configurable as required
Options: Can be combined with plasma generators from 100 to 200 ampere

Combined Punch/Plasma Machines:

Technical Characteristics:

Models: ST 40ATC Twin, 60ATC Twin, 80ATC
Maximum Working Plate Size: Up to 6000 x 2000 mm
Minimum Working Plate Size: From 300 x 300 mm to 1000 x 1000 mm
Plate Thickness: From 1 mm to 25 mm
Maximum Plate Weight: Up to 2000 kg
Punching Force: Ranges from 400 kN to 800 kN
Hits Per Minute: Approximately 120
Positioning Precision: ± 0.2 mm
Repetitiveness Precision: ± 0.05 mm
Automatic Tool Changer: 8 to 12 tools
Dimensions and Weight: Varies by model, up to 14000 x 8000 mm and 26000 kg
Installed Power: Up to 80 kW
Options: Threading head, retractable clamps

Note: Characteristics are subject to change without notice.
