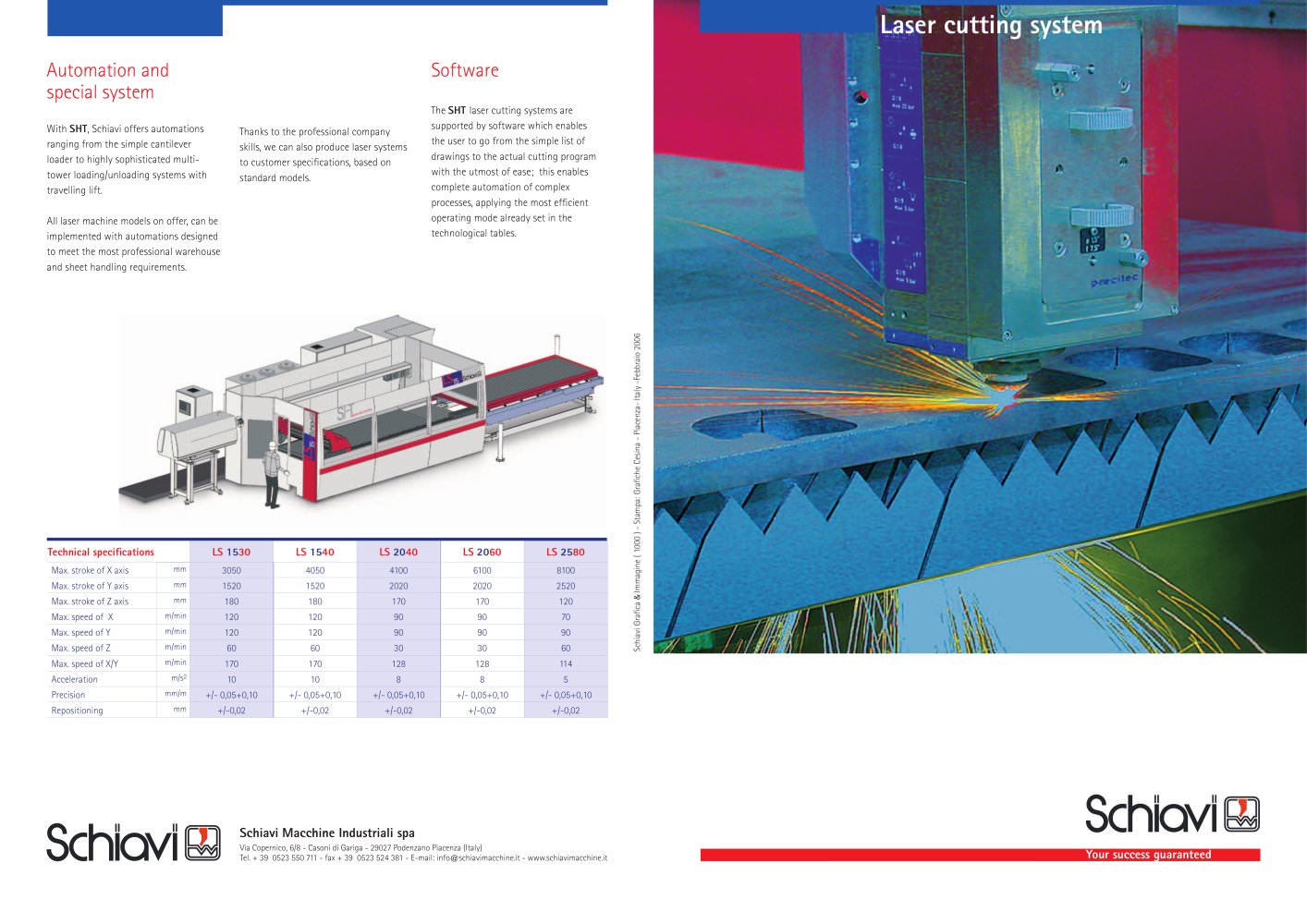

Technical Specifications
The document outlines the specifications for various laser cutting models: LS 1530, LS 1540, LS 2040, LS 2060, and LS 2580. Key parameters include maximum stroke dimensions for X, Y, and Z axes, maximum speeds, acceleration, precision, and repositioning accuracy. For instance, the LS 2580 offers a maximum X-axis stroke of 8100 mm and a speed of 114 m/min.

Automation and Special Systems
Schiavi provides automation solutions ranging from simple loaders to complex multi-tower systems. These systems can be customized to meet specific warehouse and sheet handling needs, enhancing the versatility of the laser machines.

Software
The SHT laser cutting systems are supported by software that simplifies the transition from design to cutting, enabling full automation of complex processes. This software optimizes operations using pre-set technological tables.

Accuracy for Large Thickness and Plate Sizes
The LS 2580 model is designed for processing large and thick plates, featuring a 2500x8000 mm operating range without repositioning. It includes a 4000 kg capacity table and a quick piercing system with a plasma sensor to reduce cycle time.

Tailor-Made Cuts
The new SHT line offers a comprehensive range of laser systems for cutting flat steel sheets, providing targeted solutions for the ironworking industry. These systems are made in Italy and ensure high performance and reliability.

Productivity and Performance
The LS models are designed for high productivity, featuring a stable electro-welded base and a gantry driven by digital motors. They achieve speeds up to 170 m/min with accelerations over 1g. Models like LS 2040 and LS 2540 are optimized for handling large sheets, with features like a low pallet change zone and customizable options.

Standard Features
All LS models include a capacity step suction system with independent chambers, automatic pallet changers, and options for loading/unloading with or without a sheet magazine.
