High Precision Lathe 140R-CNC

Product catalog summary

Overview: The document provides detailed technical specifications and features of the 140R-CNC high precision lathe, designed for industries such as automotive, aerospace, medical, and dental. It emphasizes the machine's high precision, rigidity, and flexibility.

Specifications: The lathe features a high rigidity construction with linear guideways and a counter-spindle. It supports a maximum turning diameter of 300 mm and a spindle speed range of 50 to 6,000 min-1. The main spindle is driven by an AC motor with continuous/intermittent power of 7.5 kW/11 kW and torque of 47.7 Nm/70 Nm. The machine includes a 12-position turret with all driven positions and supports various tooling options.

Technical Data: The lathe's headstock accommodates Schaublin and Hainbuch collets, with a maximum throughbore of 24 mm. It features a pneumatic chucking system with adjustable axial clamping force and a maximum spindle speed without restriction. The C-axis allows for programmable increments and interpolation. The carriage offers a transverse stroke of 210 mm and a longitudinal stroke of 370 mm, with high-resolution positioning.

Additional Features: The lathe includes a Renishaw arm for automatic zero setting of tools for the counter-spindle, integrated cooling, and indexing in both directions. The machine is compliant with European Community safety regulations and is subject to continuous improvements, which may affect technical data and illustrations.

Dimensions and Weight: The machine has an approximate net weight of 3,040 kg and overall dimensions of 2,650 x 1,400 x 1,840 mm. It features a coolant supply system with a tank capacity of 180 liters and a pump pressure of 6 bars.

Catalog excerpts

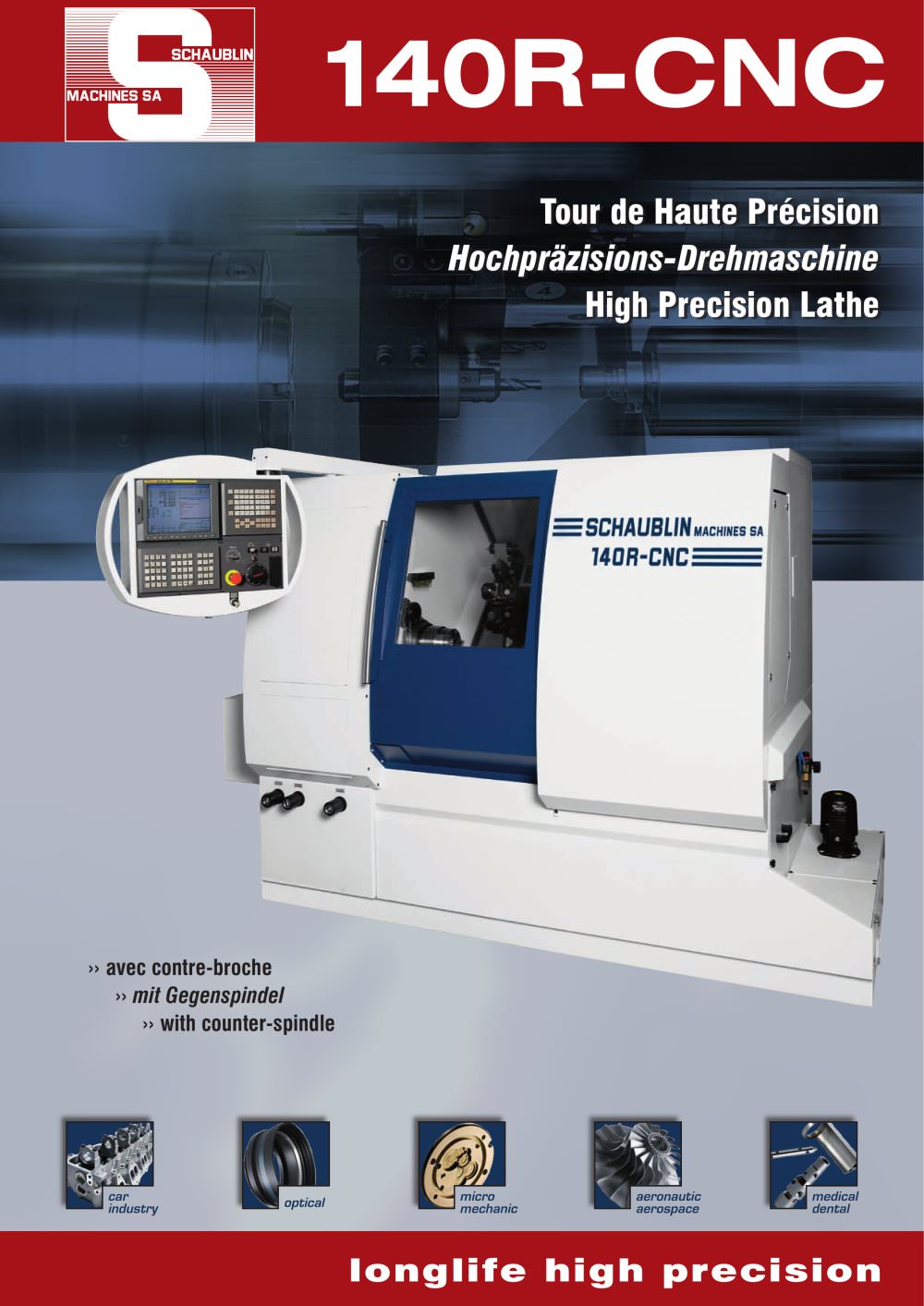

140R-ONC SCHAUBLINl Tour de Haute Prcision Hochprzisions-Drehmaschine 頗High Prcision Lathe longlife high prcision

Open the catalog to page 1

Contre-broche A2-3 Tourelle 12 positions toutes entranes Gegen-Spindel A2-3 Revolver 12 Positionen alle angetrieben Counter-spindle A2-3 Turret 12 positions all driven Diverses options - Verschiedene Optionen - Various options Bras RENISHAW pour mise  zro automatique des outils Bras Renishaw pour mise z頩ro auto. des outils pour la contre broche RENISHAW-Arm fur automatische Werkzeug-Nullpunktstellung Renishaw-Arm fur autom. Werkzeug-Nullpunktstellung fur Gegen-Spindel RENIshAw arm for automatic zero setting of the tool Renishaw arm for autom. zero setting of the tool for counter-spindle 8900-09907-000 Օ...

Open the catalog to page 3

Donnes techniques Technische Hauptdaten Capacit錩s Arbeitsbereiche Diamtre maximum de tournage Maximaler Drehdurchmesser Distance de la face du nez de broche l'蠩cran de poupe Broche principale; entranement par moteur AC Hauptspindel; AC-Motorantrieb Puissance continu / intermittent Leistung Dauer- / Unterbrochen Couple continu / intermittent Drehmoment Dauer- / Unterbrochen Poup鮩e Spindelstock Broche pour pinces «SCHAUBLIN» Spindel fur Spannzangen SCHAUBLIN" Passage de barre maximum en pince, 0 Maximaler Stangendurchlass, 0 Broche pour pinces «HAINBUCH» Spindel fur Spannzangen ĄHAINBUCH" Broche...

Open the catalog to page 4

Technical data Capacities nL-t nL-u Maximum turning diameter 300 mm 300 mm Distance from Spindle nose to headstock screen 54 mm 64 mm Principal spindle; by AC motor drive Power continuous / intermittent 7,5 kW / 11 kW 7,5 kW / 11 kW Torque continuous / intermittent 47,7 Nm / 70 Nm 47,7 Nm / 70 Nm Headstock Spindle for collets "SCHAUBLiN" B32 B32/B45 Maximum throughbore, 0 24 mm ■ 24 mm / 36 mm Spindle for collets "HAiNBUCH" Gr. 32 Gr. 42 Spindle for automatical chuck 0 140 mm ■ 0 170 mm Spindle speed 50 - 6'000 min-1 50 - 5'000 min-1 Spindle throughbore (without drawbar) 39 mm ■ 51 mm Maximum...

Open the catalog to page 5

« Il 60-CNC / 100-CNC / 160-CNC Centres d'usinage verticaux Vertikale Bearbeitungszenter Vertical Machining Centers 48V / 48V-15K / 51-5AX Centres d'usinage verticaux Vertikale Bearbeitungszenter Vertical Machining Centers Tour CNC de haute prcision CNC Hochprazisions-Drehmaschine High Precision CNC Lathe 'J3 n 140-CNC / 140R-CNC* < 125-CCN ^ Tours CNC de haute prcision CNC Hochpr驠zisions-Drehmaschinen High Precision CNC Lathes Tours CNC de haute prcision CNC Hochprzisions-Drehmaschinen High Precision CNC Lathes *Contre-broche / Gegenspindel / Sub spindie Tours CNC de haute pr頩cision CNC Hochprzisions-Drehmaschinen...
