Workshop Press Model WSP 60
1 / 1 PageView full catalog
Workshop Press Model WSP 60
Product catalog summary
Workshop Press Model WSP 60 Overview
This document provides technical specifications for the Workshop Press Model WSP 60, a powerful hydraulic press designed for industrial applications. Key features include a hydraulic pump with two speeds, adjustable press settings, and a moveable cylinder.
This document provides technical specifications for the Workshop Press Model WSP 60, a powerful hydraulic press designed for industrial applications. Key features include a hydraulic pump with two speeds, adjustable press settings, and a moveable cylinder.
Specifications
- Type: WSP 60
- Capacity: 60 tons
- Stroke: 400 mm
- Power: 1.1 kW
- Voltage: 400/3~
- Frequency: 50/60 Hz
- Delivery Flow: 3.3/13.5 L/min
- Oil Tank Capacity: 20 dm3 (Tellers 46)
- Working Speed: 4 mm/s
- Approaching Speed: 9.2 mm/s
- Return Speed: 12.7 mm/s
- Pressing Force: 588 KN
- Maximum Pressure: 235 bar
- Weight: 685 kg
Manufacturer Information
Scantool A/S, located at Industrivej 3-7, 9460 Brovst, Denmark, is the manufacturer of the WSP 60. For inquiries, they can be contacted via phone at +45 98 23 60 88, fax at +45 98 23 61 44, or email at [email protected]. More information is available on their website: www.scantool-group.com.
Scantool A/S, located at Industrivej 3-7, 9460 Brovst, Denmark, is the manufacturer of the WSP 60. For inquiries, they can be contacted via phone at +45 98 23 60 88, fax at +45 98 23 61 44, or email at [email protected]. More information is available on their website: www.scantool-group.com.
See more
Catalog excerpts

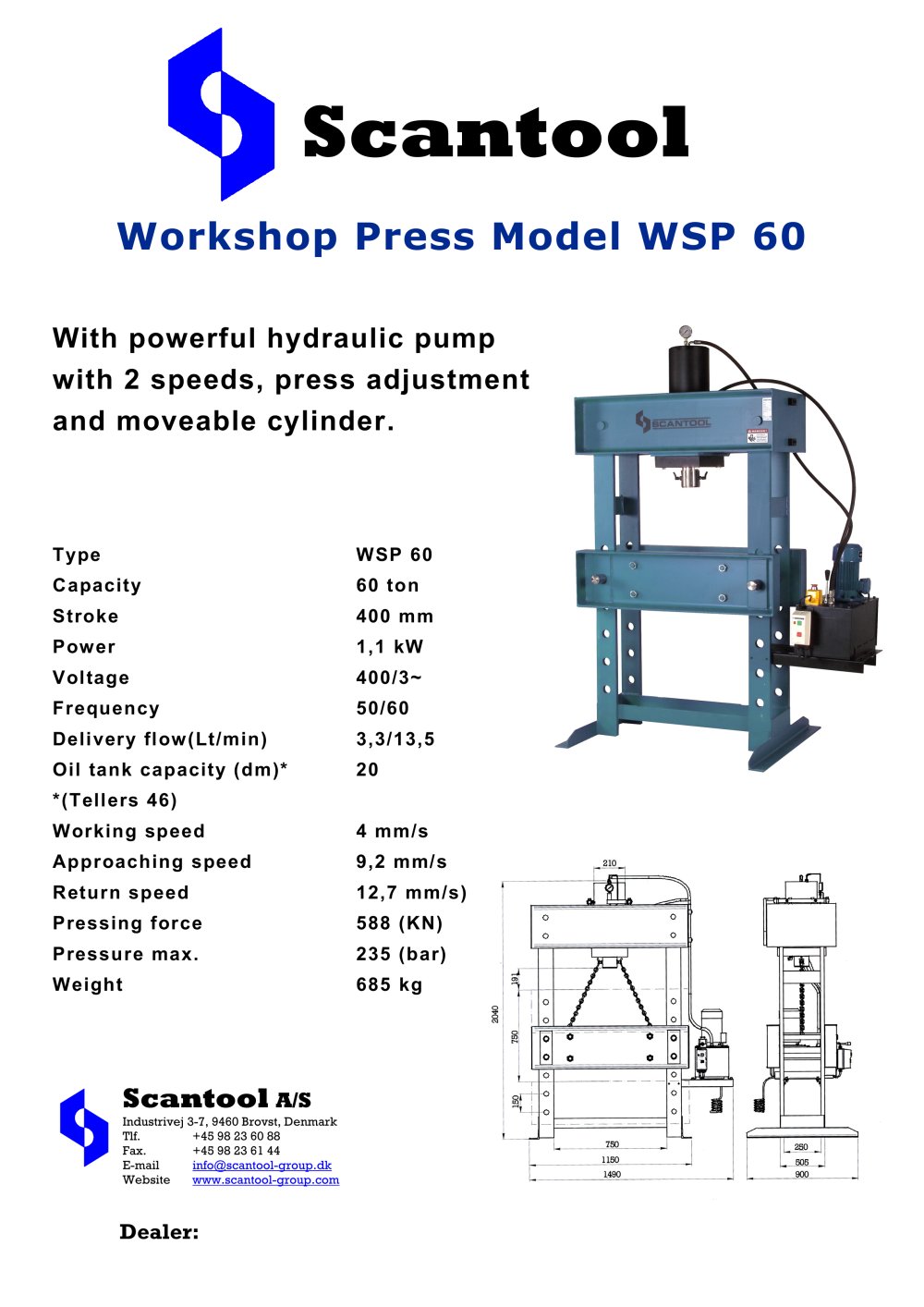

Type WSP 60 Capacity 60 ton Stroke 400 mm Power 1,1 kW Voltage 400/3~ Frequency 50/60 Delivery flow(Lt/min) 3,3/13,5 Oil tank capacity (dm)* 20 *(Tellers 46) Working speed 4 mm/s Approaching speed 9,2 mm/s Return speed 12,7 mm/s) Pressing force 588 (KN) Pressure max. 235 (bar) Weight 685 kg A/S > Industrivej 3-7, 9460 Brovst, Denmark Tlf. +45 98 23 60 88 Fax. +45 98 23 61 44 E-mail [email protected] Website www.scantool-group.com Dealer: >
