Product catalog summary

Overview: The document provides technical specifications and operational details for the SMEC autonomous filter, designed for the extraction and filtration of welding fumes, aerosols, and gaseous emissions. It highlights the filter's compact design, ease of mobility, and versatility across various industrial applications.

Specifications: The SMEC filter is constructed with zinc-plated steel panels, ensuring airtight assembly. It includes an extraction section and multiple filtration sections that can be customized based on the type of fumes and desired filtration level. The standard configuration for welding fumes includes three filtration stages: metal pre-filters, rigid-pocket filters, and active carbon filters.

Operational Principle: The filter operates by using a centrifugal fan with backward blades to draw in air, which is then directed through a decantation chamber to slow down and separate coarse particles. The air subsequently passes through a series of progressively efficient filters, tailored to the specific pollutants being extracted. The filtered air is reintroduced into the environment at low speed to minimize noise.

Key Features: The filter is equipped with wheels for easy movement and can accommodate an articulated exhauster arm with a patented system (SNODASPIR). It is essential to specify the required mains voltage when ordering.

Performance Data: The document includes a table detailing models, airflow capacity, motor specifications, filtering efficiency, sound levels, arm dimensions, and overall dimensions and weight. For example, the SMEC/1.5/1B model has a delivery rate of 1800 m3/h, a motor power of 1.1 kW, and a filtering efficiency of 99%.

Catalog excerpts

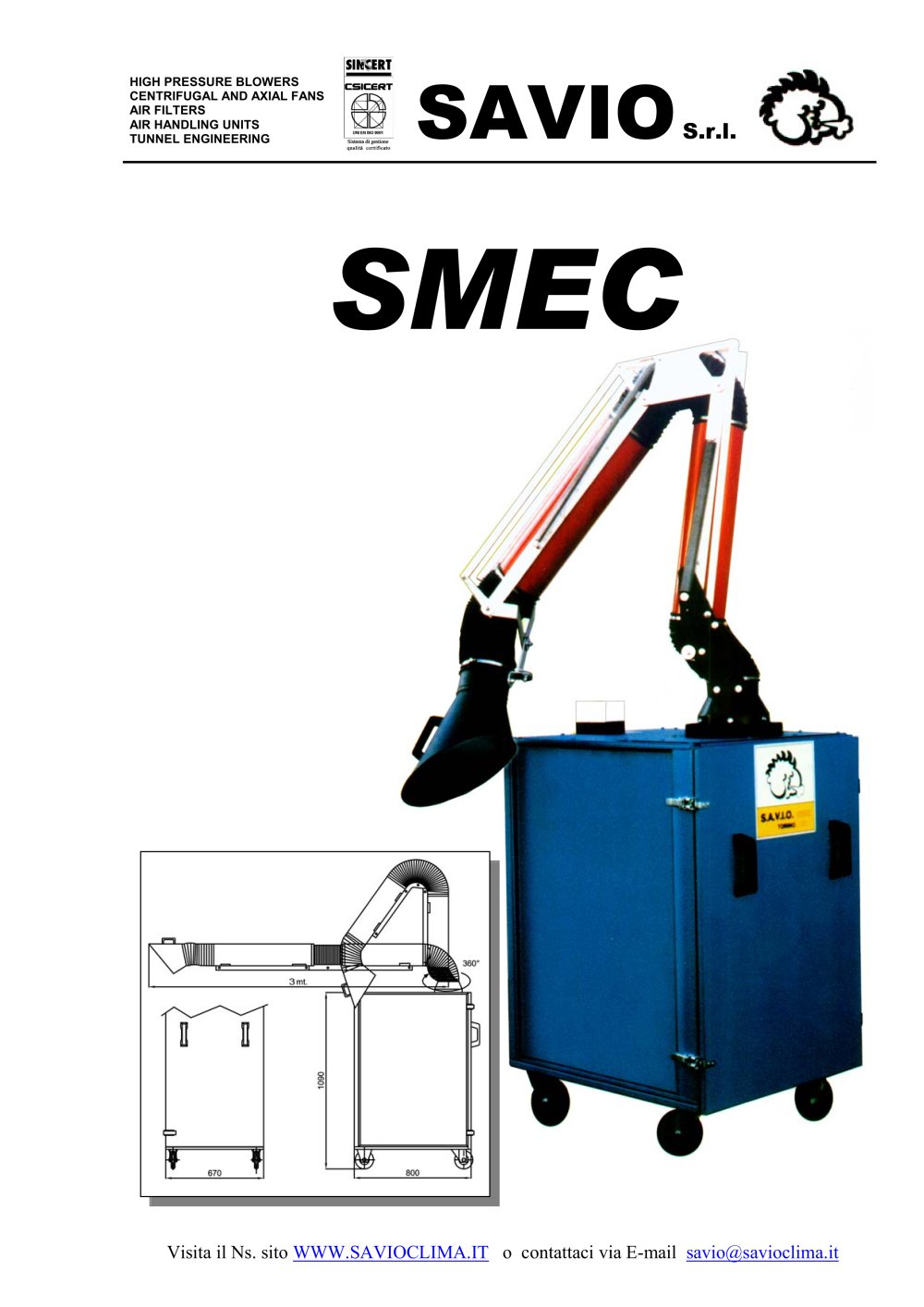

HIGH PRESSURE BLOWERS CENTRIFUGAL AND AXIAL FANS AIR FILTERS AIR HANDLING UNITS TUNNEL ENGINEERING Visita il Ns. sito WWW.SAVIOCLIMA.IT o contattaci via E-mail [email protected] size="-1">

Open the catalog to page 1

Performance principle: The fluid extracted by the centrifugal backward blades fan is carried by means of a descending vertical flux, first in the decantation chamber, which slows down the air speed, and followed by the change direction, the pollution flow is compelled to decant, the coarse suspended parti- cles into an appropriate container. Consequently, the air is intercepted by a series of filters having a progressive efficiency which, according to the typology of the ex- tracted fumes, may be installed in different ways, in fact the range of filters varies extremely from EU3 metal filters,...

Open the catalog to page 2

SMEC

SMEC
