Serie SCLKT/Serie CA-SCLKT

Product catalog summary

General Principles of Fan Design

Parameters:
The document identifies four key parameters for fan characterization: Capacity, Pressure, Efficiency, and Speed of Rotation.

Capacity:
This is the volume of fluid moved by the fan per unit time, measured in m3/h, m3/min., or m3/sec.

Pressure:
Total pressure is the sum of static and dynamic pressures, with dynamic pressure depending on fluid speed and specific gravity.

Efficiency:
Efficiency is defined as the ratio of energy output by the fan to the energy input to the motor.

Speed of Rotation:
This is the number of revolutions needed by the fan impeller to meet performance requirements, affecting capacity, total pressure, and power.

Sizing:
Guidelines for fan sizing are provided, assuming operation with air at +15°C and 760 mm Hg barometric pressure. Noise data is measured at 1.5 m distance at maximum efficiency, with tolerances of ±5% for capacity and +3 dB(A) for noise. Changes in fluid conditions, such as temperature and barometric pressure, affect specific gravity, impacting pressure and power. A formula for specific gravity calculation and a table for air weight at various temperatures and altitudes are included.

Catalog excerpts

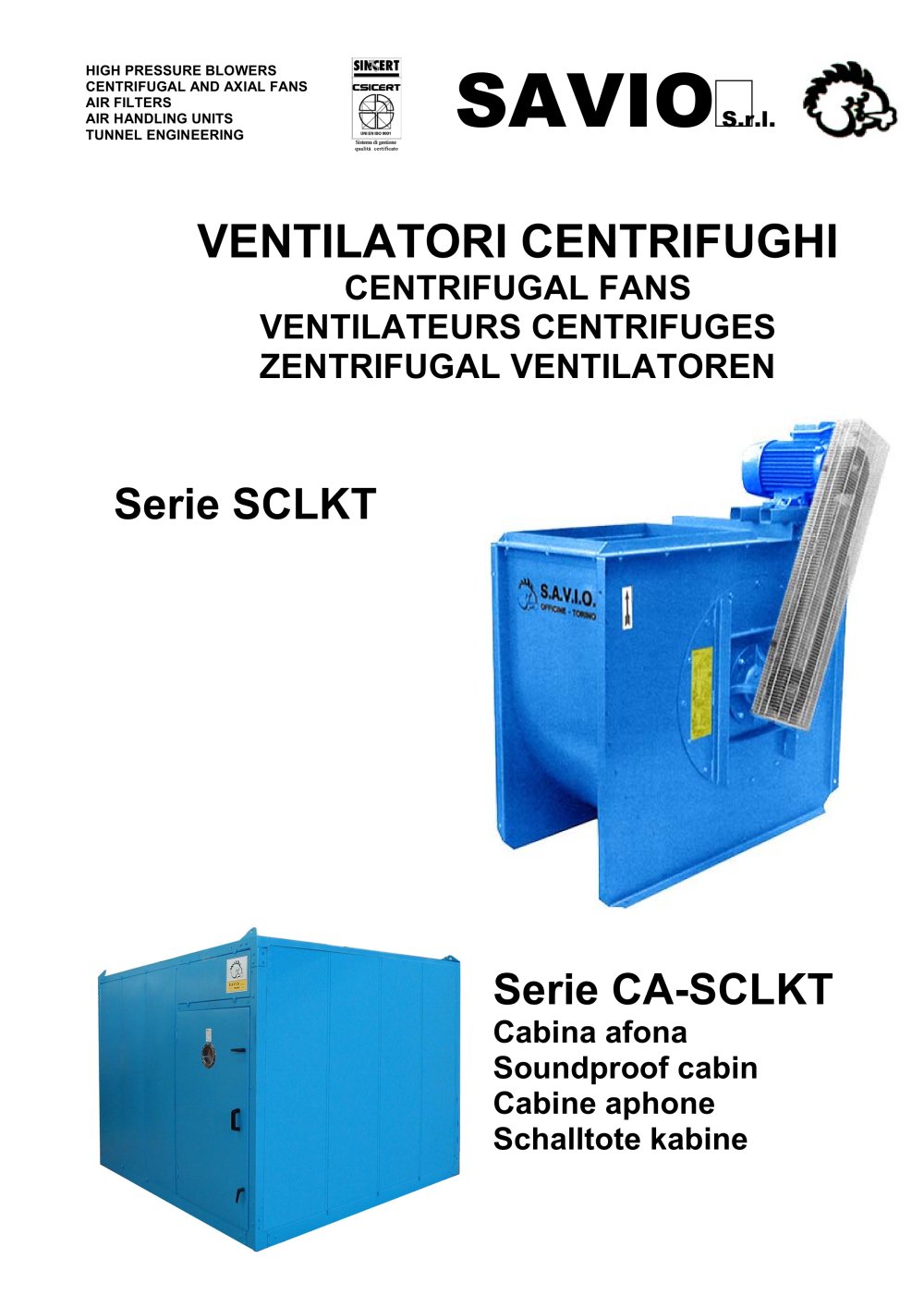

HIGH PRESSURE BLOWERS CENTRIFUGAL AND AXIAL FANS AIR FILTERS AIR HANDLING UNITS TUNNEL ENGINEERING

Open the catalog to page 1

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:10.00pt "Arial", sans-serif; } .font3 { font:13.00pt "Arial", sans-serif; } .font4 { font:14.00pt "Arial", sans-serif; } .font5 { font:15.00pt "Arial Black", sans-serif; } .font6 { font:5.00pt "Times New Roman", serif; } .font7 { font:8.00pt "Times New Roman", serif; } 2 SAVIO Sri. concetti general! sui ventilatori 1) PARAMETRI I principali parametri che distinguono un ventilatore sono quattro: Velocit di rotazione (n° min.-1) Portata (V) Pressione...

Open the catalog to page 2

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:10.00pt "Arial", sans-serif; } .font3 { font:14.00pt "Arial", sans-serif; } .font4 { font:23.00pt "Arial", sans-serif; } .font5 { font:15.00pt "Arial Black", sans-serif; } .font6 { font:5.00pt "Times New Roman", serif; } .font7 { font:8.00pt "Times New Roman", serif; } SAVIO S.i-.I. general principles of the fan design 1) PARAMETERS The main parameters, characteristic to a fan, are four in number: Capacity (V) Pressure (p) Efficiency (n) Speed...

Open the catalog to page 3

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:7.00pt "Arial", sans-serif; } .font3 { font:9.00pt "Arial", sans-serif; } .font4 { font:10.00pt "Arial", sans-serif; } .font5 { font:14.00pt "Arial", sans-serif; } .font6 { font:15.00pt "Arial Black", sans-serif; } .font7 { font:7.00pt "Georgia", serif; } .font8 { font:25.00pt "Impact", sans-serif; } .font9 { font:5.00pt "Times New Roman", serif; } .font10 { font:8.00pt "Times New Roman", serif; } .font11 { font:5.00pt "Trebuchet MS", sans-serif;...

Open the catalog to page 4

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:7.70pt "Arial", sans-serif; } .font2 { font:9.00pt "Arial", sans-serif; } .font3 { font:14.00pt "Arial", sans-serif; } .font4 { font:23.00pt "Arial", sans-serif; } .font5 { font:15.00pt "Arial Black", sans-serif; } .font6 { font:5.00pt "Times New Roman", serif; } .font7 { font:6.00pt "Times New Roman", serif; } .font8 { font:8.00pt "Times New Roman", serif; } (^SAVIO Sri. 5 allgemeine angaben uber die ventilatoren 1) PARAMETER Die hauptschlichen Parameter, die einen Ventilator auszeichnen,...

Open the catalog to page 5

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:11.00pt "Arial", sans-serif; } .font3 { font:15.00pt "Arial Black", sans-serif; } 6 SAVIO Sri. caratteristiche tecniche Srie di ventilatori con accoppiamento a trasmissione e portate tra 2.000 e 50.000 m3/h e pressioni da 300 a 6.000 Pa, idonei per il trasporto di fumi e polveri, in miscela con l'aria fino alla temperatura massima di + 80°C. Per temperature fino a +170°C la serie SFLKT viene dotata di coclea saldata, supporto prolungato, distanziale,...

Open the catalog to page 6

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:9.00pt "Arial", sans-serif; } .font3 { font:10.00pt "Arial", sans-serif; } .font4 { font:11.00pt "Arial", sans-serif; } .font5 { font:21.00pt "Arial", sans-serif; } .font6 { font:15.00pt "Arial Black", sans-serif; } (^SAVIO Sri. 7 - Dimensioni d'ingombro e pesi. - Overall dimensions and weights. - Dimensions d'encombrement et poids. - Abmessungen und Gewichte. N°4 Fori 012 N°4 Bores 012 N°4 Forures 012 N°4 Bohrungen 012 Dalla grandezza 225, il...

Open the catalog to page 7

PRESSIONE TOTALE -TOTAL PRESSURE - PRESSION TOTAL - GESAMTDRUCKP PORTATA - VOLUME - DEBIT FORDERLEISTUNG m3/h > OTENZA ASSORBITA - POWER ABSORBED - PUISSANCE ABSORBEE - GESAMTE LEISTUNG PORTATA - VOLUME - DEBIT֖ FORDERLEISTUNG m3/h >
