Multistage blower MICO

Product catalog summary

Overview: The document provides technical details about multistage blowers, specifically the MICO model, highlighting their efficiency, applications, and manufacturing process.

Specifications: The MICO blowers are designed for high efficiency and proportional energy consumption, with low sound levels. They are customizable to fit specific plant requirements.

Applications: MICO blowers are versatile and used in various applications such as pneumatic cleaning, liquid agitation, tunnel ventilation, cooling, drying, and gas line boosting. They are also used in biogas installations and air pumping rooms.

Manufacturing Process: The blowers are manufactured using sophisticated numerical control machines. The process includes determining the optimal number of impellers and blades, their inclination, and rotation speed for maximum efficiency.

Testing and Quality Assurance: Each blower undergoes rigorous testing in a laboratory. Data collected during testing is analyzed and visualized, with characteristic curves plotted to ensure performance standards are met.

Catalog excerpts

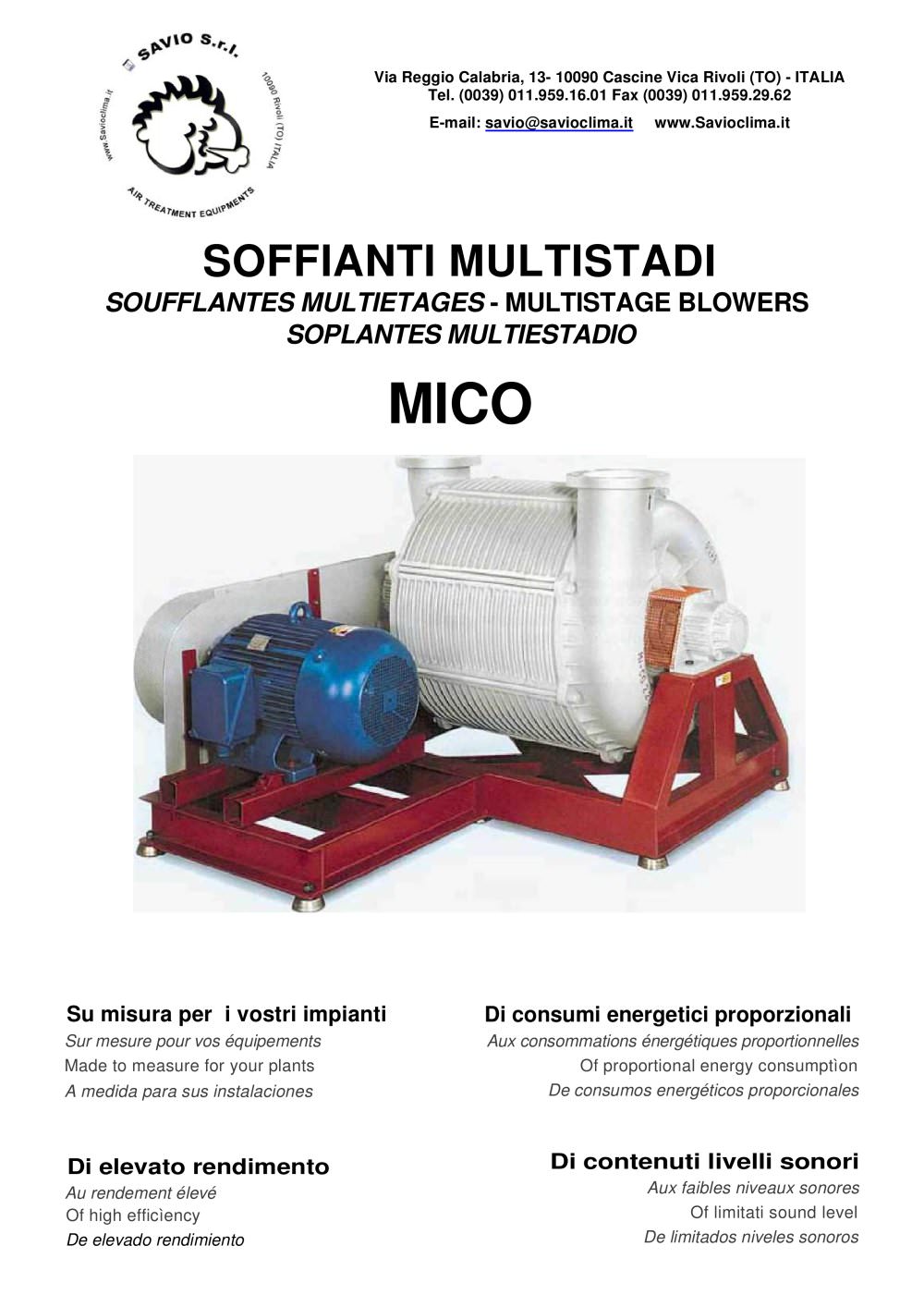

Via Reggio Calabria, 13- 10090 Cascine Vica Rivoli (TO) - ITALIA Tel. (0039) 011.959.16.01 Fax (0039) 011.959.29.62 E-mail: [email protected] SOFFIANTI MULTISTADI SOUFFLANTES MULTIETAGES - MULTISTAGE BLOWERS SOPLANTES MULTIESTADIO Su misura per i vostri impianti Di consumi energetici proporzionali Sur mesure pour vos équipements Made to measure for your plants Aux consommations énergétiques proportionnelles Of proportional energy consumptìon De consumos energéticos proporcionales A medida para sus instalaciones Di elevato rendimento Au rendement élevé Of high efficìency De elevado rendimiento Di contenuti livelli sonori Aux faibles niveaux sonores Of limitati sound level De limitados niveles sonoros

Open the catalog to page 1

Installazione tipica in vasca di ossigenazione per depurazione acqua Installation typique en cuve d'oxygénation pour épuration d'eau Typical installation in oxygenation tank for purifitionof water instalación tipica en balsa para depuración de agua Installazione soffianti biogas installation typique pour biogas Typical installation for biogas instalación tipica de biogas Sala di pompaggio aria - Salle de pompage d'alr - Air pumping room - Sala de bombeo aire

Open the catalog to page 2

DIAGRAMMA PRESTAZIONI «MICO» / DIAGRAMMES DES PERFORMANCES «MI-CO» PERFORMANCE DIAGRAM «MICO» / DIAGRAMA PRESTACIONES «MI-CO» Prevalenza totale / Pression totale / Total pressure /Presión total Portata / Débit / Capacity / Caudal (mc/s) Gruppo albero - girante Ensemble arbre – rotor Shaft - impeller group Grupo eje - rotor I MICO trovano larghe applicazioni d'impiego e tra le altre citiamo: pulizia pneumatica - trasporti pneumatici - posta e campionatura pneumatica - agitazione di liquidi - rimozione di liquidi con getto di aria - cortine d'aria - ventilazione di gallerie - tempere d'aria - raffreddamento...

Open the catalog to page 3

Foto 1 Valutando il punto di maggiore rendimento l'elaboratore determina il numero delle giranti, il numero delle pale, l'inclinazione e il numero dei giri, ecc.. En évaluant le point de plus grand rendement, l'ordinateur détermine le nombre de rotors, le ombre de paies, i'inclinaison et le nom-bre de tours, etc.. Valuing the point of greater efficiency, the elaborator determines the number of impellers, the number ot blades, the inclination etc. Evaluando el punto de mayor rendimiento, el ordenador determina el nùmero de rotores, el nùmero de paletas, la inclinaciòn y nùmero de revoluciones,...

Open the catalog to page 4
