CENTRIFUGAL FANS

Product catalog summary

Overview: This document provides technical specifications and details for high-pressure blowers, centrifugal and axial fans, air filters, and air handling units, specifically focusing on the Series S and SCS centrifugal fans by SAVIO S.r.l. These fans are designed for clean or slightly dusty air applications, suitable for small suction and ventilation systems, cooling of electrical devices, motors, and machine tools.

Specifications:

Capacity: 60 to 2100 m3/h
Total Pressure: 5 to 120 da Pa
Maximum Air Temperature: 90°C
Motor Type: Three-phase induction motor, with an option for a single-phase motor upon request
Construction Material: Galvanized sheet iron for both structure and impeller

Design and Construction: The fans feature forward blades and are constructed from galvanized sheet iron, ensuring durability and resistance to environmental factors.

Performance and Noise Levels: Noise data is measured in a free field at a distance of 1.5 meters, with a tolerance of +3 dB(A). The fans operate efficiently at various RPMs, with specific noise levels and power requirements detailed for each model.

Dimensional and Weight Information: The document includes detailed tables of dimensions and weights for different fan models, specifying the number of bores and flange details.

Operational Conditions: The performance characteristics are based on air at +15°C, barometric pressure of 760 mm Hg, and a specific gravity of 1.226 kg/m3. There is a capacity tolerance of ±5%.

Additional Information: The document includes a table of discharge positions according to Eurovent standards, providing guidance on fan orientation relative to the motor side.

Catalog excerpts

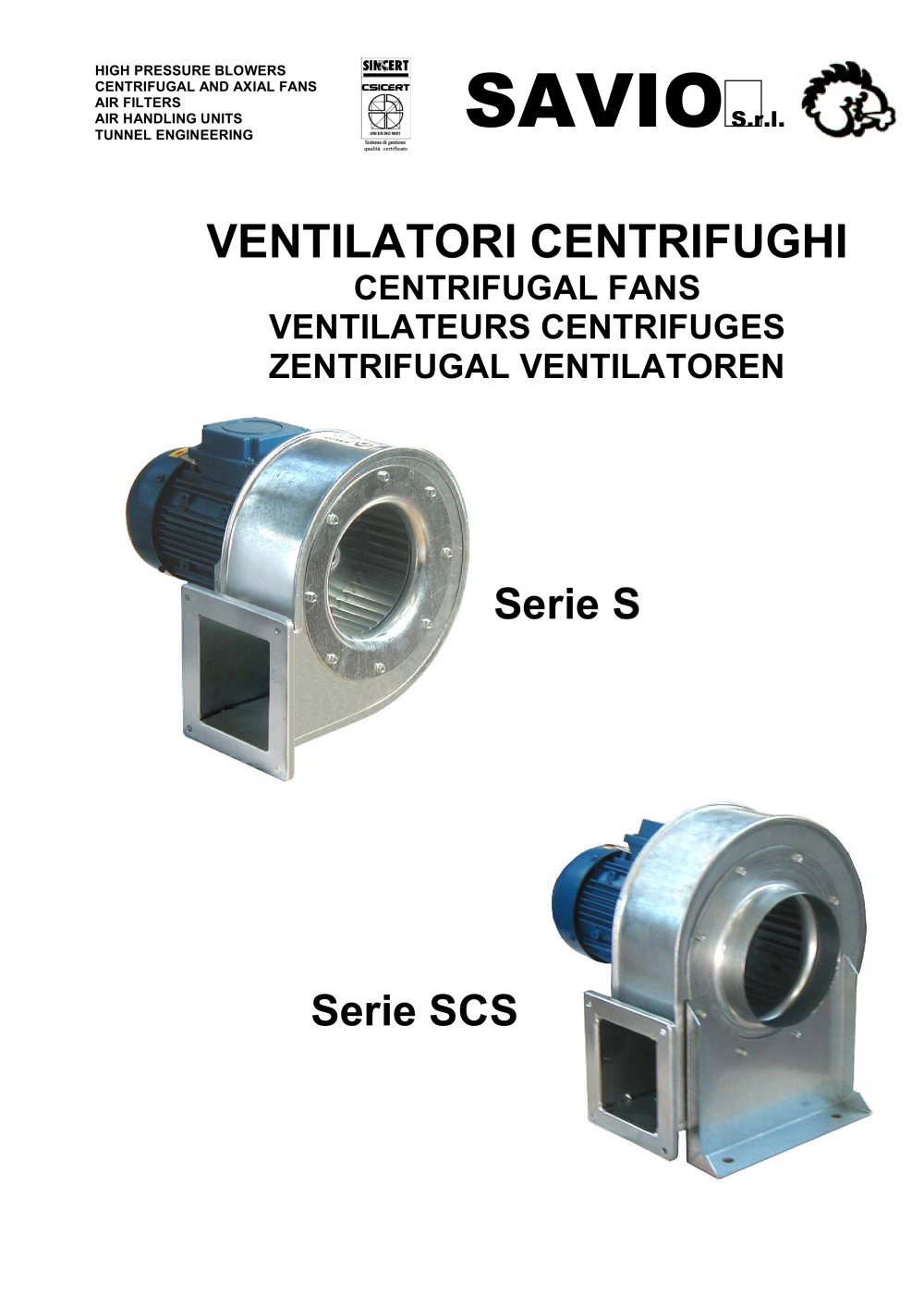

HIGH PRESSURE BLOWERS CENTRIFUGAL AND AXIAL FANS AIR FILTERS AIR HANDLING UNITS TUNNEL ENGINEERING

Open the catalog to page 1

CARATTERISTICHE SERIE S SCS Ventilatori per aria pulita o leggermente polverosa. Applicazioni : piccoli impianti di aspirazione e ventilazione, per raffredamento apparecchiature elettriche, motori, macchi-ne utensili. Portata: da 60 a 2100 m > 3 /h. Pressione totale: da 5 a 120 da Pa. Temperatura max aria trasportata 90ְ C. Gli aspiratori centrifughi della serie S˻ e SCS˻ installano ventole a pale in avanti e sono forniti di motore asincrono trifaseLa versione con motore monofase viene fornita su richiesta. La struttura realizzata in lamiera di acciaio zincato. Materiale girante, lamiera zincata....

Open the catalog to page 2

F = a a1 a2 = M D L L E Nذ 8 Fori 7.5 Nذ 8 Bores 7.5 Nذ 8 Forures 7.5Nذ 8 Bohrungen 7.5 G Ventilatore FanVentilateur Ventilator Basamento Base Chassis Sockel Flangia premente Outlet flangeBride en refoulement Flansch dryckseitig

Open the catalog to page 3

CENTRIFUGAL FANS
