SAVIO
AXIAL FANS

AXIAL FANS

Product catalog summary

General Principles of Fan Design

Parameters: Key parameters for fan design include capacity (volume of fluid moved per unit time), pressure (sum of static and dynamic pressures), efficiency (ratio of energy output to input), and speed of rotation. These parameters are crucial for determining fan performance.
Efficiency: Calculated using the formula η = (V * pt) / (1.02 * P), efficiency measures the effectiveness of the fan in converting energy input into useful work.
Speed of Rotation: Affects capacity, total pressure, and absorbed power, with specific formulas provided for calculating changes due to speed variations.

Sizing: Fan characteristics are standardized based on operation with air at +15°C and 760 mm Hg barometric pressure. Adjustments are necessary for variations in specific gravity.

Technical Features

SPM Series: Features steel casing and aluminum or resin blades, suitable for environments like foundries and cement plants. Capacity ranges from 240 to 33,600 m3/h with total pressure up to 115 daPa.
SPMD/SPMDR Series: Equipped with adjustable blades for polluted air extraction, with capacity ranging from 2,100 to 150,000 m3/h and total pressure up to 165 daPa.
SI/SIR Series: Designed for ducted applications, featuring a long casing and inspection door. Capacity ranges from 240 to 150,000 m3/h with total pressure up to 165 daPa.

General Notes: Motors comply with IEC standards, and standard painting is blue RAL 5007. Special executions are available upon request.

Technical Specifications:
Detailed specifications for various fan models by SAVIO S.r.l. are provided, focusing on polluted air extraction in industrial environments. Fans are constructed with high-gauge sheet steel and feature impellers made from aluminum alloy or resin.

SPM Model:
- Diameter: 315 to 710 mm
- Capacity: 240 to 33,600 m3/h
- Total Pressure: Up to 115 daPa
- Temperature Range: -10°C to +60°C

SPMD and SPMDR Models:
- Diameter: 800 to 1600 mm
- Capacity: 2,100 to 150,000 m3/h
- Total Pressure: Up to 165 daPa
- Temperature Range: -10°C to +60°C

SI and SIR Models:
- Diameter: 315 to 1600 mm
- Capacity: 240 to 150,000 m3/h
- Total Pressure: Up to 165 daPa
- Temperature Range: -10°C to +60°C

General Remarks:
Motors comply with IEC standards, with specifications varying based on power requirements. Standard painting is blue RAL 5007. Accessories are provided separately, except for specific components like safety netting and vibration dampers.

Performance Parameters:
Key parameters such as flow rate, pressure, efficiency, and rotational speed are outlined, explaining their interrelation and impact on fan performance.

Environmental Considerations:
A table shows the specific weight of air at various temperatures and altitudes, crucial for calculating performance under different environmental conditions.

Design and Application:
Fans are designed for easy integration into systems like exhaust plants and ventilation systems for tunnels and subways, suitable for applications requiring large flow rates and low pressure values.

Overall Dimensions and Weights
Dimensions and weights of various motor types are provided, including a non-binding table with fan weights in kilograms, including the motor. The standard painting color is RAL 5007, and the temperature range for conveyed fluids is -10°C to +60°C.

Specifications
Various motor types are listed with their respective RPM, noise levels in dB(A), and installed power in kW. A detailed table of static and total pressure values (Pst and Pt) for different motor types and configurations is included.

Materials
Blades are made from either resin (glass-charged polypropylene) or aluminum, emphasizing the material options for the blades.

Tolerances
Tolerances for capacity (±5%) and noise (+3 dB(A)) are specified.

Additional Notes
Some configurations are available only upon request. Multiple tables with detailed technical data for various motor series, including SPM 3000 rpm, SPM 450/C, and others, are included.

Catalog excerpts

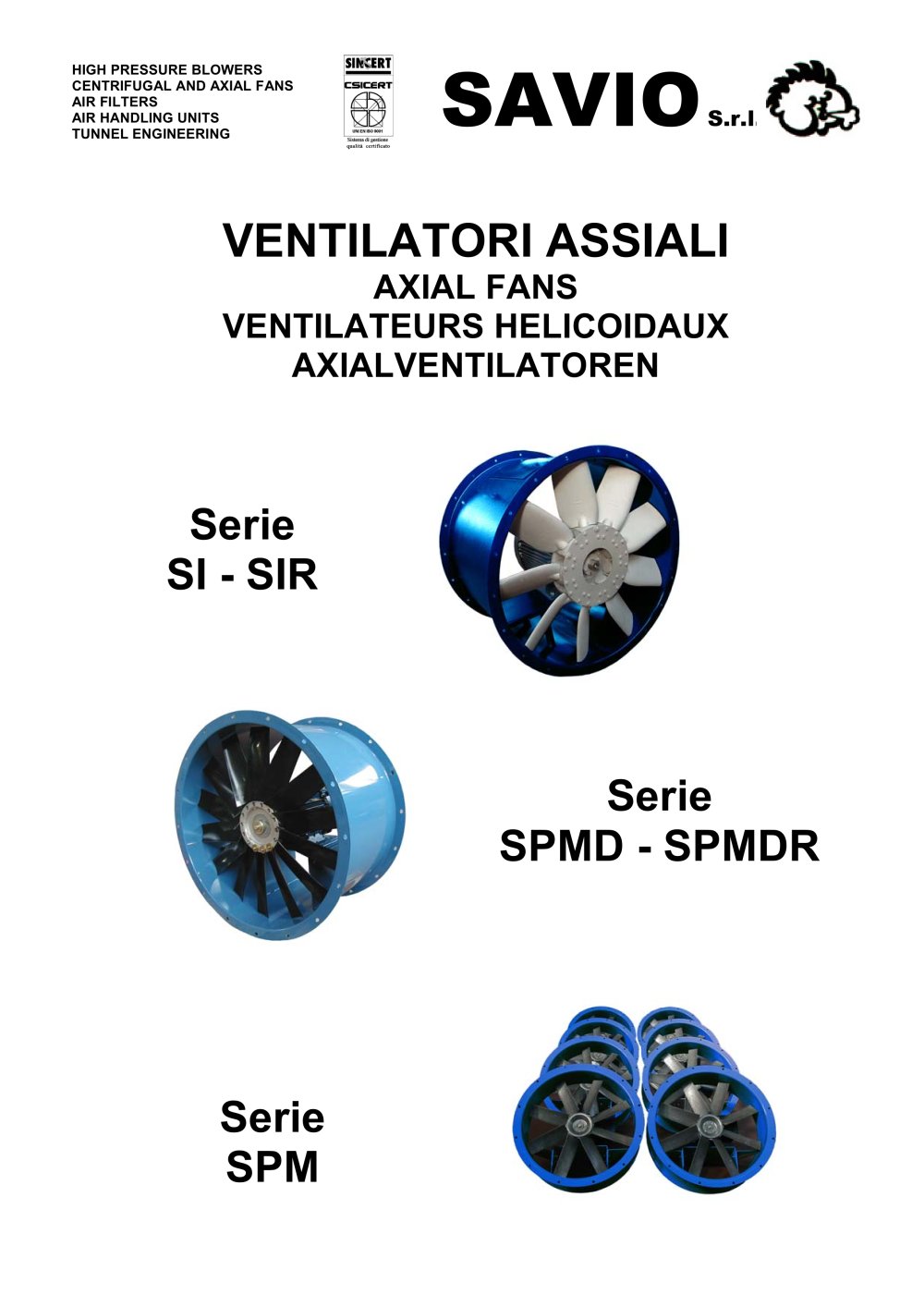

HIGH PRESSURE BLOWERS CENTRIFUGAL AND AXIAL FANS AIR FILTERS AIR HANDLING UNITS TUNNEL ENGINEERING AXIAL FANS VENTILATEURS HELICOIDAUX AXIALVENTILATOREN Serie SI - SIR Serie SPMD - SPMDR Serie SPM >

Open the catalog to page 1

Untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {}

Open the catalog to page 2

CONCETTI GENERALI SUI VENTILATORI Pag. 4 GENERAL PRINCIPLES OF THE FAN DESIGN Pag. 6 CARATTERISTICHE TECNICHE Pag. 5 TECHNICAL FEATURES Pag. 7 POSIZIONE MOTORE E FLUSSO DELLARIA Pag. 12 MOTOR AND AIR FLOW POSITION Pag. 12 METODO DI ORDINAZIONE Pag. 13 ORDER METHOD Pag. 13 DIMENSIONI DҒINGOMBRO E PESI SPM Pag. 14 OVERALL DIMENSIONS AND WEIGHT SPM Pag. 14 DIMENSIONI DINGOMBRO E PESI SPMD Pag. 15 OVERALL DIMENSIONS AND WEIGHT SPMD Pag. 15 DIMENSIONI DҒINGOMBRO E PESI SI Pag. 17 OVERALL DIMENSIONS AND WEIGHT SI Pag. 17 DIMENSIONI DINGOMBRO E PESI SPMDR Pag. 20 OVERALL DIMENSIONS AND WEIGHT SPMDR...

Open the catalog to page 3

1) PARAMETRI I principali parametri che distinguono un ventilatore sono quattro: Portata (V) Pressione (p) Rendimento () Velocit di rotazione (n min. > -1 ) 1.1) Portata: La portata న la quantit di fluido movimentata dal ventilatore, in termini di volume, nellunitҠ di tempo e si esprime normalmente in m > 3 /h, m > 3 /min., m > 3 /sec. 1.2) Pressione: La pressione totale (pt) la somma tra la pressione statica (pst), ovvero lenergia necessaria a vincere gli attriti opposti dall蒒impianto e la pressione dinamica (pd) o energia cinetica impressa al fluido in movimento (pt = pst + pd). La pressione...

Open the catalog to page 4

Cassa di convogliamento in lamiera dacciaio di forte spessore (Fe 37), dotata di boccaglio aerodinamico e di unica flangia Girante con pale in lega dҒalluminio o in resina (polipropilene caricato vetro). Mozzo in alluminio Diametri da 315 a 710 mm Applicazioni: Questi ventilatori sono particolarmente adatti per lestrazione di aria inquinata anche umida e/o polverosa e sono principalmente utilizzati nelle fonderie, nei cementifici, nelle cartiere, nelle falegnamerie, nei garage e nei locali pubblici. Inoltre, vengono anche impiegati negli aerotermi, nelle torri di raffreddamento ed in tutte quelle...

Open the catalog to page 5

1) PARAMETERS The main parameters, characteristic to a fan, are four in number: Capacity (V) Pressure (p) Efficiency () Speed of rotation (n min. > -1 ) 1.1) Capacity: The capacity > 3 3 is the quantity of fluid moved by the fan, in volume, within a unit of time, and it is usually expressed in m > 3 /h, m /min., m /sec. 1.2) Pressure: The total pressure (pt) is the sum of the static pressure (pst), i.e. the energy required to withstand opposite frictions from the system, and the dynamic pressure (pd) or kinetic energy imparted to the moving fluid (pt = pst + pd). The dynamic pressure depends...

Open the catalog to page 6

Conveyance casing in high-gauge sheet steel (Fe 37), fitted with streamlined nozzle and single flange Impeller with blades in Aluminium alloy or resin (glass-charged polypropylene). Hub in Aluminium Diameter sizes: 315 through 710 mm Applications: These fans are particularly suitable for extraction of polluted air, even damp and/or dusty and they are specially used in foundries, cement factories, paper mills, joinery works , garages and public rooms. Moreover, they are used in unit heaters, cooling towers and all the applications where large flow rates and low pressure values are required. Performance:...

Open the catalog to page 7

1) PARAMETRES Les principaux paramtres qui identifient un ventilateur sont au nombre de quatre : Dbit (V) Pression (p) Rendement () Vitesse de rotation (n詰 min. > -1 ) 1.1) Dbit : Le dbit est la quantit驩 de fluide mise en mouvement par le ventilateur, en terme de volume dans lunitҩ de temps, et sexprime gҩnralement en m > 3 /h, m > 3 /min, m > 3 /s. 1.2) Pression : La pression totale (pt) est la somme de la pression statique (pst), cest-钠-dire lҩnergie ncessaire pour vaincre les frottements dus l頒installation, et de la pression dynamique (pd) ou nergie cintique imprim驩e au fluide en mouvement...

Open the catalog to page 8

Caisson de refoulement en tle dacier de forte 䒩paisseur (Fe 37), muni dune tuyҨre arodynamique et dune bride unique Roue avec aubes en alliage d钒aluminium ou en rsine (polypropylne charg騩 de fibres de verre). Moyeu en aluminium. Diamtres de 315 710 mm. Applications : Ces ventilateurs sont particuli蠨rement adapts l頒extraction dair viciҩ, mme humide et/ou poussireux et sont principalement utilisꩩs dans les fonderies, les cimenteries, les fabriques de papier, les menuiseries, les garages de mcanique et dans les locaux publics.Par ailleurs, ils sont galement employ驩s dans les arothermes, les tours...

Open the catalog to page 9

Frderkasten aus sehr starkem Stahlblech (Fe 37), versehen mit aerodynamischer Ausflud柼se und Einzelflansch Laufrad mit Flgeln aus Aluminiumlegierung oder aus Kunstharz (Polypropylen, glasbeschickt). Nabe aus Aluminium Durchmesser von 315 bis 710 mm Anwendungsgebiete : Diese Ventilatoren eignen sich besonders fr die Absaugung von verunreinigter Luft, auch wenn sie feucht u/o staubig ist und kommen insbesondere in Gie켟ereien, Zementwerken, Papierfabriken, Schreinereien, Garagen und ffentlichen Rumen zum Einsatz. Au椟erdem werden dieselben bei Lufterhitzungsanlagen, Khltrmen und 켼berall dort verwendet,...

Open the catalog to page 11

S.r.l. - POSIZIONE MOTORE E FLUSSO DELL'ARIA - MOTOR AND AIR FLOW POSITION - - POSITION DU MOTEUR ET DE L'ECOULEMENT D'AIR - MOTORPOSITION UND LUFTSTROM - A ADAU B BDBU > - FLUSSO DELL'ARIA - AIR FLOW - ECOULEMENT DE L'AIR - LUFTSTROM - ROTAZIONE - ROTATION - ROTATION - DREHUNG - "RD" ROTAZIONE - ROTATION - ROTATION - DREHUNG - "LG" Flusso aria da girante a motore B-BD-BUFlusso aria da motorea girante A-AD-AU Air flow from motorto impeller A-AD-AUEcoulement d'air du moteur vers la roueA-AD-AULuftstrom von Motor zumLaufrad A-AD-AUAir flow from impellerto motor B-BD-BUEcoulement d'air de la roue...

Open the catalog to page 12

flusso aria materiale pale ti serie ventilatore identifica vent. po d i v e ntil a t o r e > SPM SI SIR SPMD SPMDR SPM SI SIR PMD MDR Resina Resina rinforzata Alluminio Alluminio speciale R P A S da motore a girante (vedi pag.12) da girante a motore (vedi pag.12) A B > air flow blade material f fan series identifies axial fans a n t ype > SPM SI SIR SPMD SPMDR SPM SI SIR PMD MDR Resin Resin reinfor. Aluminium Special Aluminium R P A S From motor to impeller (see page 12) From impeller to motor (see page 12) A B > flux dҒair matriau des aubes t srie du ventilateur identification de ventilateur...

Open the catalog to page 13
