AXIAL EXHAUST ROOF FANS

Product catalog summary

Technical Specifications: The document details the STA series of axial exhaust roof fans designed for horizontal air extraction. These fans are suitable for removing stale air from large spaces such as warehouses and industrial buildings, with air flow capacities up to 34,000 m3/h. They are available in single-phase and three-phase versions, capable of operating continuously with fluids up to 40°C. An explosion-proof motor version is available upon request, certified by C.E.S.I. Installation of a gravity shutter reduces capacity by approximately 10%.

Construction: The fans are constructed with a base, uprights, and a motor mounting plate made of galvanized sheet metal. The dome is made of fiberglass-reinforced plastic, and the helical impeller features wing-shaped blades made of polypropylene.

Performance Table: The performance table provides data on static pressure, noise levels, and power requirements for various fan models. The table indicates a tolerance of ±5% for capacity and +3dB(A) for noise levels, based on operation at 15°C and a barometric pressure of 760 mmHg.

Dimensions and Weights: The document includes a table listing the overall dimensions and weights for different fan models, providing specific measurements for installation purposes.

Accessories: A gravity shutter is available as an accessory, with specific dimensions provided for each fan model.

Catalog excerpts

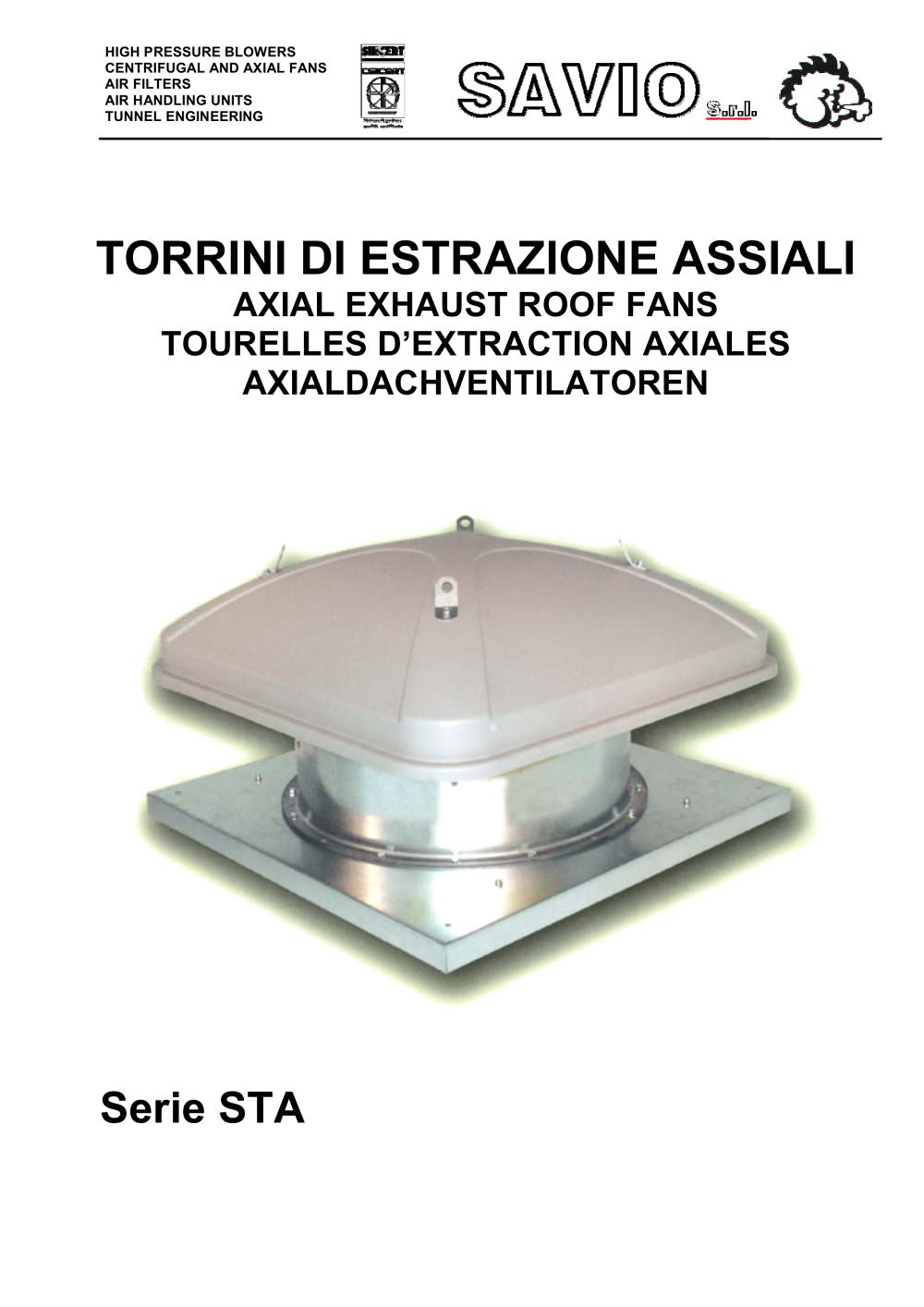

HIGH PRESSURE BLOWERS CENTRIFUGAL AND AXIAL FANS AIR FILTERS AIR HANDLING UNITS TUNNEL ENGINEERING AXIAL EXHAUST ROOF FANSTOURELLES DEXTRACTION AXIALES AXIALDACHVENTILATOREN Serie STA >

Open the catalog to page 1

CARATTERISTICHE TECNICHE Serie di torrini assiali di estrazione a getto orizzontale, particolarmente adatti allestrazione di aria viziata da capanoni, magazzi-ni, grandi ambienti civili o industriali ed in ogni luogo dove necessitano grandi portate dҒaria con pressioni relativamente basse. Lampia gamma disponibile, con portate fino a 34.000 m > 3 /h, permette di scegliere il modello piҹ consono alle varie problemati-che.Disponibile sia in versione monofase che trifase (ad una o due velocit) pu trasportare fluidi con una temperatura max di 40ರC in servizio continuo. A richiesta pu essere fornito...

Open the catalog to page 2

AXIAL EXHAUST ROOF FANS

AXIAL EXHAUST ROOF FANS
