Product catalog summary
Overview: The AL800 series is designed for efficient and user-friendly label application. Key features include easy label loading, a versatile LCD display, and user-friendly operation with a rotary jog dial.
Specifications: The AL800 series offers two label feed directions: Right-to-Left (AL800) and Left-to-Right (AL801). It supports various application methods such as Roller, Cylinder, Cylinder Jet, and Press Jet, with application directions including Top, Lateral, and Bottom. The label feed speed varies by method, with R type ranging from 5m/min to 30m/min and others from 5m/min to 15m/min.
Environmental Conditions: The operating environment is 0 ~ 35˚C with 25 ~ 85% humidity, while storage conditions are -5 ~ 60˚C with 20 ~ 90% humidity. The machine is designed to operate without condensation and in dust-free environments.
Options and Accessories: Available options include a label near-end sensor, alarm beacon light, individual installation stand, mechanical print head, label unwinding unit, speaker, transparent label detect sensor, product detect sensor, and air blow applying method.
Power and Dimensions: The main unit dimensions are L250mm x W540mm x H600mm, weighing 11.3Kg. The controller measures L270mm x W260mm x H145mm, weighing 5.0Kg. Power requirements are 200V Max 139W 190VA or AC100V 50/60Hz 140W.
Contact Information: SATO Asia Pacific and its regional offices in Malaysia, Thailand, and China provide support and sales services.
See more

Catalog excerpts

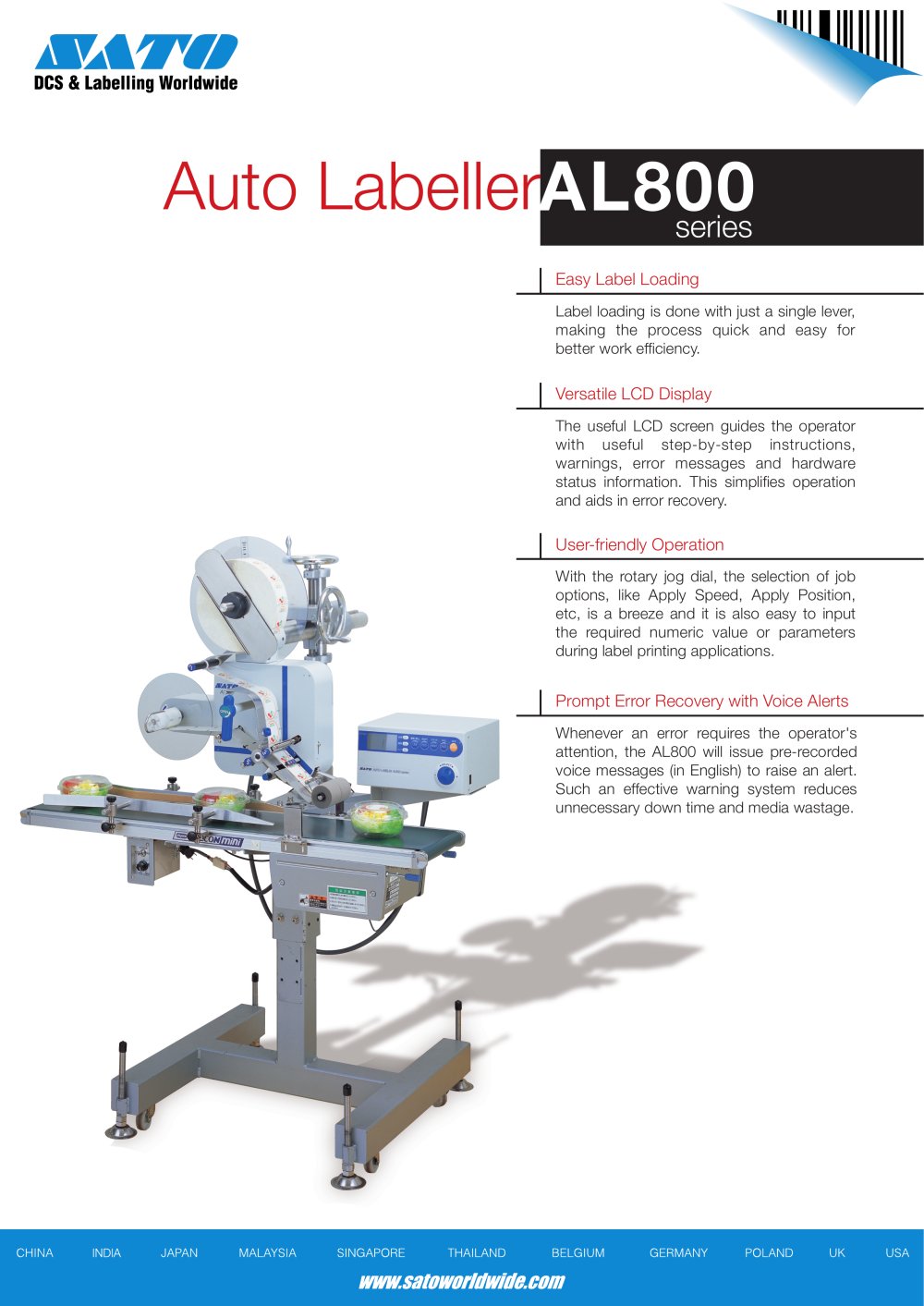

auto labeler-1

Label loading is done with just a single lever, making the process quick and easy for better work efficiency. > The useful LCD screen guides the operator with useful step-by-step instructions, warnings, error messages and hardware status information. This simplifies operation and aids in error recovery. > With the rotary jog dial, the selection of job options, like Apply Speed, Apply Position, etc, is a breeze and it is also easy to input the required numeric value or parameters during label printing applications. > Whenever an error requires the operator's attention, the AL800 will issue pre-recorded voice messages (in English) to raise an alert. Such an effective warning system reduces unnecessary down time and media wastage. >

 Open the catalog to page 1
