Product catalog summary

General Overview: The XL 400e is a high-tech tag and label printer designed for high-volume printing with features like a movable sensor, strong cutter, and easy connectivity. It is compatible with Windows™ and offers optional accessories like a rewinder and stacker.

Recommended Applications: The printer is suitable for retail and department stores for in-store price marking and product labeling, especially with thick media. It is also ideal for the garment industry, where RFID tags can be used for labeling high-quality textiles, enhancing traceability and theft deterrence.

Printing Specifications: The printer supports direct thermal and thermal transfer methods with resolutions of 203dpi and 305dpi. It has a maximum print area of 100 mm width and up to 300 mm length, with print speeds ranging from 101 to 203 mm/sec.

Consumables Specifications: The printer uses a fixed reflective sensor and adjustable see-through sensor for various media types, including labels, tags, and fan-fold. Media sizes range from 32 mm to 105 mm in width and up to 240 mm in length, with a maximum thickness of 0.31 mm for tags.

Font and Symbologies: It supports various internal and downloadable TrueType fonts, and a wide range of 1D and 2D barcode symbologies, including QR Code and Data Matrix.

Interface Characteristics: The printer is equipped with a 32-bit RISC processor and standard RS-232C interface, with optional interfaces like LAN, WLAN, USB, and more.

Operating Characteristics: It operates within a temperature range of -5 to 40ºC and requires AC110/220 V power. The dimensions are W302 x D552 x H294 mm, weighing approximately 14Kg.

Accessories and Features: Optional accessories include a stacker, rewinder, and memory expansion. Useful features include batch separator, automatic media detection, intelligent print head control, and self-diagnosis capabilities.

Catalog excerpts

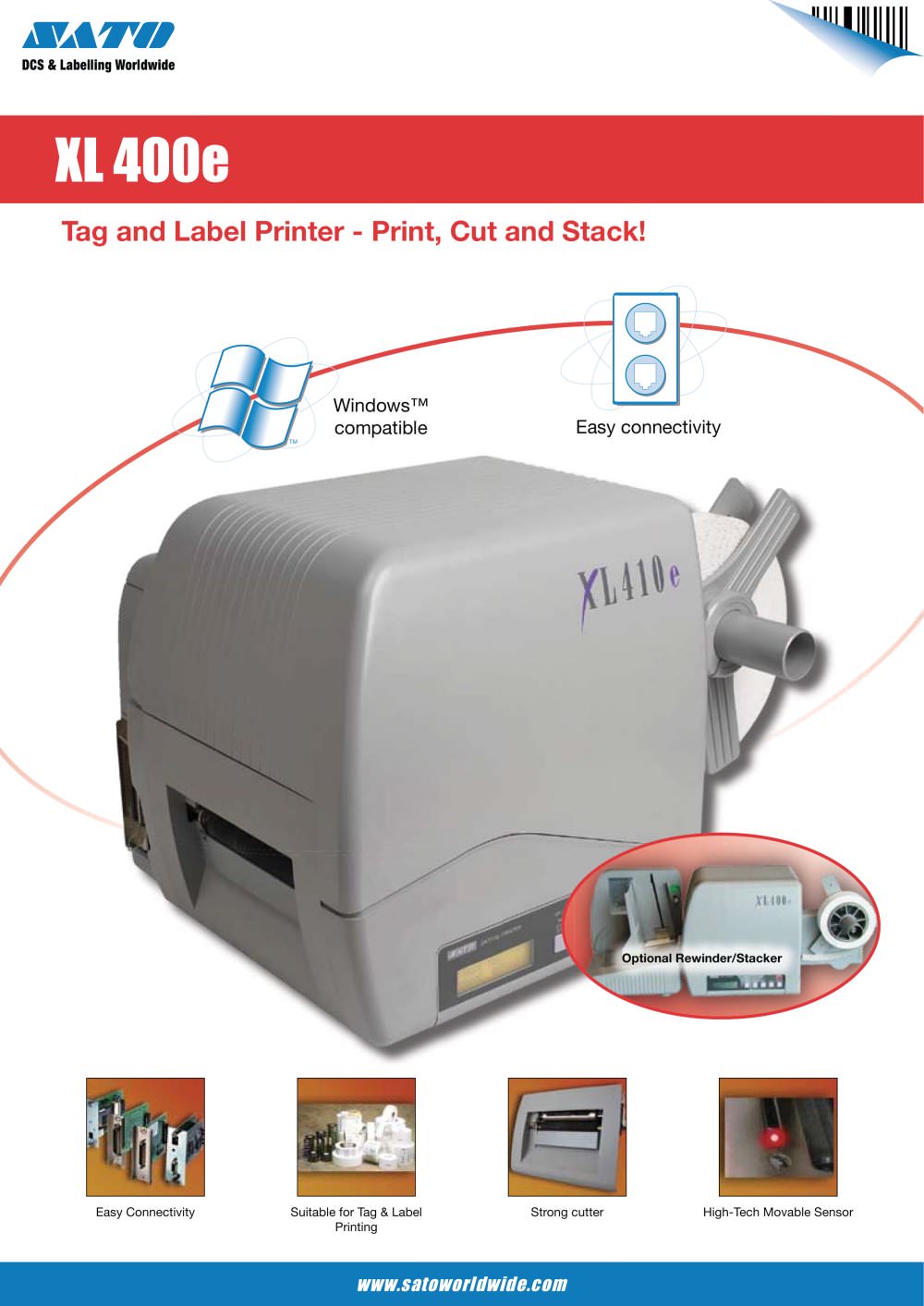

Windowscompatible > TM Easy connectivity > Optional Rewinder/Stacker High-Tech Movable SensorStrong cutterSuitable for Tag & Label PrintingEasy Connectivity www.satoworldwide.com >
