SATO America
S84 (OEM Print Engine) printer

S84 (OEM Print Engine) printer

Product catalog summary

Overview: The document provides detailed specifications and features of the SATO S84xx series, a high-end OEM print engine designed for small to mid-sized manufacturers with high-throughput requirements. It highlights the system's suitability for labor-intensive production lines.

Product Features: Key features include tool-less replacement of parts, a 1000-meter ribbon, a backlit icon-driven programmable display, and the ability to handle complex label formats. The system supports multiple host communication options and works with SATO's industry-leading programming language, SBPL.

Printing Specifications: The print engine supports both direct thermal and thermal transfer methods, with print resolutions of 203, 305, and 609 dpi. It offers a maximum print area width of 104 mm and various print speeds depending on the resolution.

Consumables Specifications: Recommended to use SATO-certified supplies, the system supports media widths from 10 to 128 mm and ribbon lengths up to 1000 meters. It includes features like ribbon saver and cassette options.

Font and Symbology: The engine supports a variety of internal fonts, TrueType fonts, and barcode symbologies, including 1D and 2D codes like QR Code and Data Matrix.

Interface Characteristics: The system is equipped with a 32-bit RISC processor and offers multiple interface options, including RS-232C, USB, LAN, and wireless LAN. It also supports memory interface options like CF Card Board.

Operating Characteristics: The print engine operates within a temperature range of 5 to 40ºC and supports a humidity range of 15 to 80% RH. It requires AC100 - 240V power and has dimensions of W245 x D408 x H300 mm, weighing approximately 16 kg.

Additional Features: The system includes automatic head resolution detection, status return function, graphics print, and self-diagnosis features like head check and paper end detection.

Model Variants: The document lists model variants S8408, S8412, and S8424, each available in left-hand (LH) and right-hand (RH) configurations.

Catalog excerpts

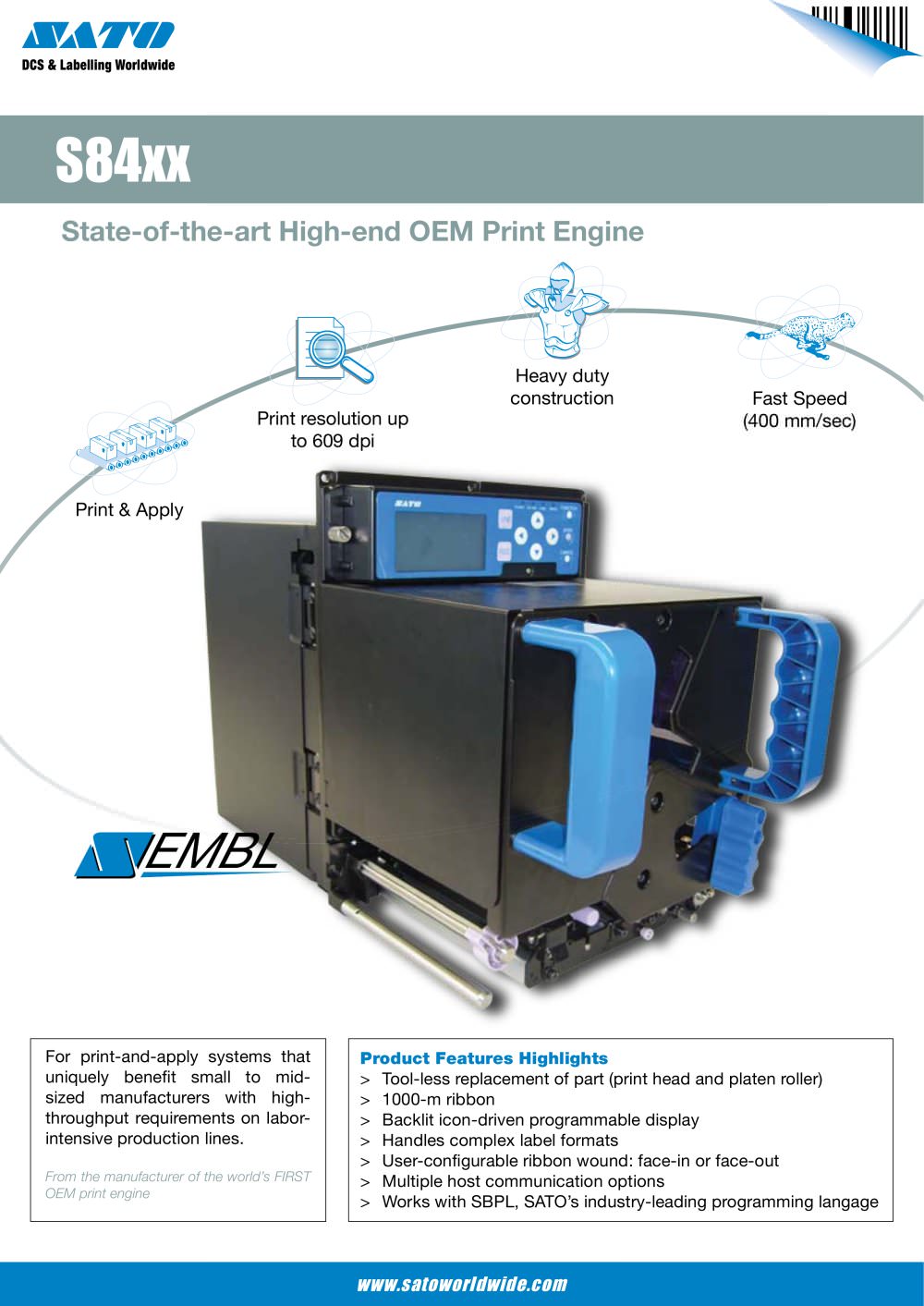

For print-and-apply systems that uniquely benefit small to mid- sized manufacturers with high- throughput requirements on labor- intensive production lines. Product Features Highlights > Tool-less replacement of part (print head and platen roller) > 1000-m ribbon > Backlit icon-driven programmable display > Handles complex label formats > User-configurable ribbon wound: face-in or face-out > Multiple host communication options > Works with SBPL, SATOs industry-leading programming langage > From the manufacturer of the worldҒs FIRST OEM print engine

Open the catalog to page 1

Printing MethodDirect Thermal or Thermal TransferPrinting ModeContinuous / Dispenser / Linerless (when selecting linerless media) Print Resolution, dots/mm (dpi)8 dots/mm (203dpi)12 dots/mm (305dpi)24 dots/mm (609dpi) Max. Print AreaWidth, mm (inch)104 mm (4.1)Pitch, mm (inch)2.500 mm (98.43Ԕ)1.500 mm (59.10)400 mm (15.7Ԕ)Print Speed, mm/sec100 - 400 mm/sec100 - 350 mm/sec50 - 150 mm/sec CONSUMABLES SPECIFICATION* (Recommended to use printer supplies manufactured or certified by SATO) Sensor TypeToggles sensor between reflective / transmissive sensors Volume for adjustmentI-mark sensor / Gap...

Open the catalog to page 2
