SATO America
RWG500 printer

RWG500 printer

Product catalog summary

Overview: The RWG500 is an intelligent and silent rewinder designed to automatically adjust its winding speed to match the label print speed. It operates with a noise level below 60dB, ensuring a quiet working environment.

Operation Characteristics:

Environment: Operating temperature ranges from 0 to 40°C with humidity levels between 30% and 80% without condensation. Storage conditions are -5 to 60°C with 30% to 90% humidity.
Regulatory Approvals: The device complies with UL/C-UL, FCC, CE, TUV, and CCC standards.
Dimensions and Weight: The rewinder measures 280 mm x 320 mm x 230 mm and weighs approximately 7.5 kg.
Power and Connectivity: It requires a DC 24V, 2A power input and connects to SATO printers using a dedicated connection cable.

Winding Characteristics:

Speed and Method: The maximum winding speed is 381 mm/sec (15 inch/sec), with external winding directly on a 40 mm spindle or a 3-inch paper core.
Direction and Monitoring: Winding can be face-out or face-in, monitored by the tension arm position.
Media Specifications: Supports media widths from 25 mm to 131 mm (optionally up to 180 mm), with a pitch of 8 to 400 mm and thickness between 0.08 to 0.27 mm.

Options: Various rewinder kits are available, including 1-inch, 1.5-inch, 2-inch, and 3-inch core paper or plastic core rewinding options.

Printer Compatibility: Compatible with SATO printer models CL6xxe, CL4xxe, M-84Pro, M5900VRVe, and GTe408e.

Note: Features may not be available in all models, and specifications are subject to change without notice.

Catalog excerpts

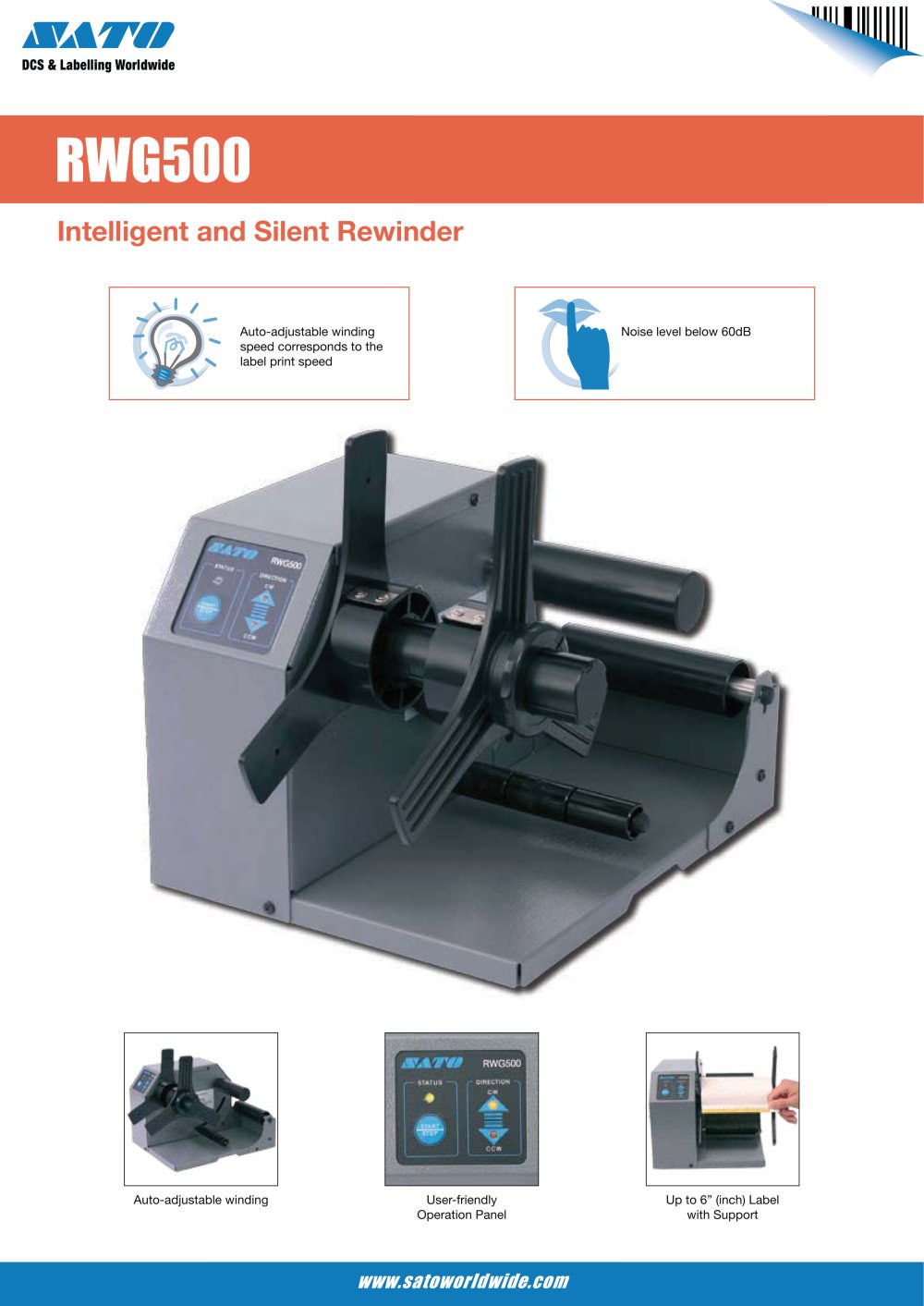

Auto-adjustable winding speed corresponds to the label print speed Noise level below 60dB Auto-adjustable winding User-friendly Operation Panel Up to 6 (inch) Label with Support >

Open the catalog to page 1

OPERATION CHARACTERISTICS EnvironmentOperating0 ~ 40C / 30 ~ 80% (without condensation)Storage-5 ~ 60аC / 30 ~ 90% (without condensation)Regulatory approvalsUL/C-UL, FCC, CE, TUV, CCC Dimension (W x D x H), weight280 mm x 320 mm x 230 mm, ~7.5kg Noise levelLess than 60 dBInput powerDC_24V, 2APrinter connectionConnection cable dedicated for SATO PRINTER: EXT cable joint plate: Yes (sup-port following models as standard) (M-5900RVe / CL4XXe / M-84Pro / GTe4XXe / CL6XXe) (CL6XXe can be used only when media width is 131 mm or less) WINDING CHARACTERISTICS Winding speedMaximum 381 mm/sec (max. 15...

Open the catalog to page 2
