M84 (OEM Print Engine) printer

M84 (OEM Print Engine) printer

Product catalog summary

Overview: The document provides detailed specifications for SATO's industrial printers, specifically designed for Print & Apply systems. These printers are ready for RFID, offer easy connectivity, and are built for high throughput with a heavy-duty design.

General Specifications: The printers are available in both right and left-hand models, with print speeds up to 12 inches per second. They are equipped with SATO's superior technology and online labeling modules.

Printing Specifications: The printers support both thermal transfer and direct thermal print methods. They offer print resolutions of 8 dots/mm (203 dpi) and 12 dots/mm (305 dpi), with maximum print areas ranging from 112 mm to 152 mm in width. The print speed varies from 125 mm/sec to 300 mm/sec depending on the model.

Consumables Specification: Recommended media types include continuous and die-cut materials, with media sizes ranging from 22 mm to 162 mm in width. The ribbon can be up to 600 meters in length and is available in black and color.

Font and Symbologies: The printers support a variety of internal fonts and downloadable TrueType fonts. They can print 1D and 2D barcodes, including QR Code, PDF417, and Data Matrix.

Interface Characteristics: The printers feature a 32-bit RISC processor and offer multiple interface options, including Serial RS232C, Parallel IEEE 1284, LAN, and USB 1.1.

Operating Characteristics: The printers operate within a temperature range of 5 to 40ºC and have regulatory approvals such as CE, TÜV-GS, UL, and CSA. They also feature self-diagnosis capabilities and useful functions like hex dump and custom character design.

Accessories: Available accessories include memory expansion, keyboard, and plug-in interface modules.

Catalog excerpts

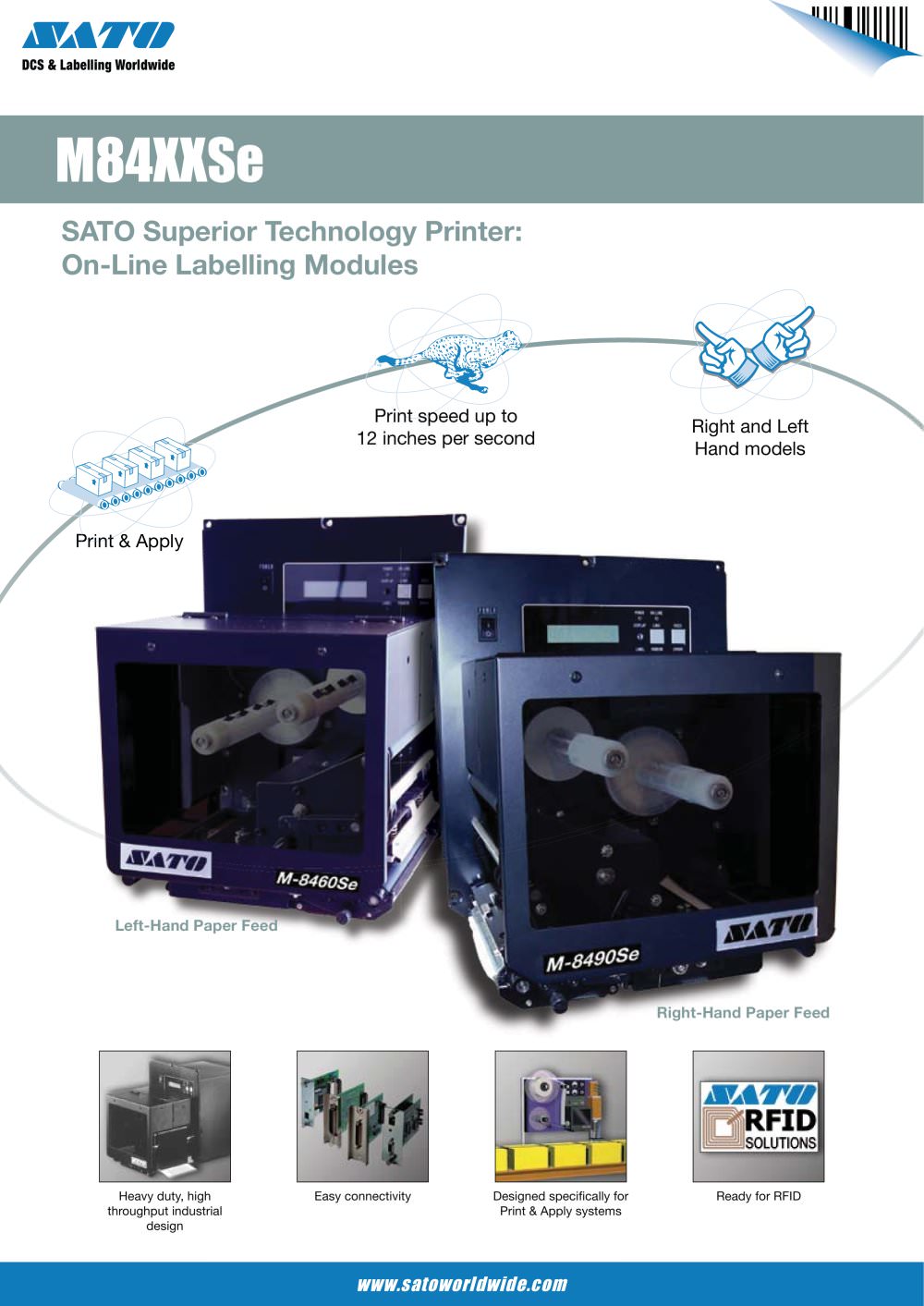

Print speed up to 12 inches per second Right and Left Hand models Print & Apply Pr Pr i i int & Apply int& > Left-Hand Paper FeedRight-Hand Paper Feed Heavy duty, high throughput industrial design Designed specifically for Print & Apply systemsEasy connectivity Ready for RFID www.satoworldwide.com >

Open the catalog to page 1
