SATO America
M10e printer

M10e printer

Product catalog summary

General Overview: The M10e printer is designed for heavy-duty construction with multilingual display capabilities and is compatible with Windows™. It features ultra-fast processing and an extra-wide printing area of 267 mm, suitable for printing giant labels or multiple labels per page. The printer offers high-quality printing at up to 305 dpi and automatic label loading via a label edge sensor. It supports a fast print speed of up to 125 mm/sec.

Printing Specifications: The M10e utilizes both direct thermal and thermal transfer printing methods. It has a print resolution of 12 dots/mm (305 dpi) and a maximum print area width of 267 mm and length of 420 mm. The maximum print speed is 125 mm/sec.

Consumables Specifications: Recommended to use SATO-manufactured or certified supplies. It includes a reflective sensor for pre-printed marks and an adjustable see-through sensor for die-cut labels. Media types include roll die-cut labels, pre-printed labels, plain paper stock, and tag stock. Media sizes range from 131 to 300 mm in width and 43 to 422 mm in length.

Font and Symbologies: The printer supports various internal fonts and downloadable TrueType fonts. It can print 1D barcodes like EAN, UPC, CODE 39, and 2D barcodes like PDF417, QR Code, and Data Matrix.

Interface Characteristics: The M10e is equipped with a 32-bit RISC processor and offers optional interfaces including SERIAL, Parallel, LAN, WLAN, USB, and RS-422/485.

Operating Characteristics: The printer operates within a temperature range of 5 to 40ºC and a humidity range of 30 to 80% RH. It requires AC 100-240V power with auto-switching capabilities.

Accessories: Available accessories include a cutter, unwinder, stacker, expansion memory, and PCMCIA add-on memory.

Additional Features: The M10e includes useful features such as hex dump, custom character design, graphic printing, sequential numbering, and form storage. It also has self-diagnosis capabilities for head check, paper end detection, and ribbon near-end detection.

Catalog excerpts

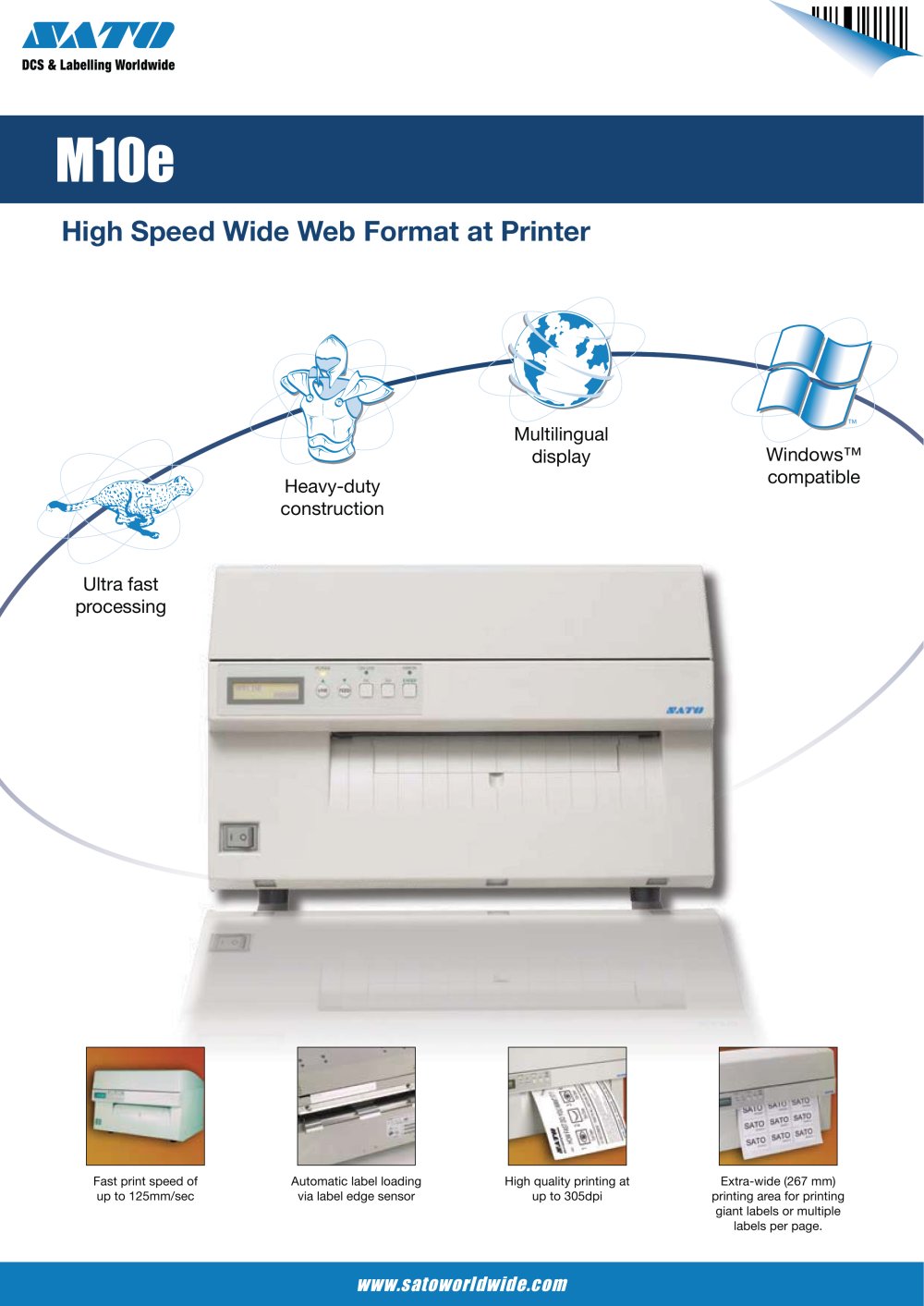

TM Multilingual display WindowscompatibleUltra fastprocessing Heavy-dutyconstruction > Extra-wide (267 mm) printing area for printing giant labels or multiple labels per page.High quality printing at up to 305dpiAutomatic label loading via label edge sensorFast print speed of up to 125mm/sec www.satoworldwide.com >

Open the catalog to page 1
