LT printer

Product catalog summary

Overview: The SATO Lt408 is a print engine designed for Print & Apply systems, offering both left-hand and right-hand models. It features a large LCD display with graphical icons for user-friendly operation and multifunction buttons for easy navigation. The printhead can be replaced and adjusted without tools, and the device offers easy connectivity.

General Specifications: The printer is available in various European countries and is designed for applications such as pallet and box labeling. It supports both direct thermal and thermal transfer printing methods.

Printing Specifications: The printer has a resolution of 203 dpi, with a maximum print area width of 104 mm and a print speed of up to 150 mm/sec. It supports continuous, dispenser, and non-separate printing modes.

Consumables Specifications: Recommended to use SATO-certified supplies, the printer supports media widths from 10 mm to 112 mm and lengths from 15 mm to 1252 mm. It accommodates ribbon lengths up to 450 m.

Font and Symbologies: The printer supports various fonts and barcode symbologies, including 1D and 2D codes like QR Code and PDF417. It allows for character and barcode magnification and direction adjustments.

Interface Characteristics: The printer is equipped with a 32-bit RISC processor and offers multiple interface options, including USB, LAN, and wireless LAN.

Operating Characteristics: The printer operates within a temperature range of 5 to 40°C and requires AC100-240V power. It has dimensions of 330 x 271 x 270 mm and weighs 9.7 kg.

Additional Features: The printer includes useful functions such as status return, graphic functions, sequential numbering, and self-diagnosis capabilities like head check and paper end search functions.

Catalog excerpts

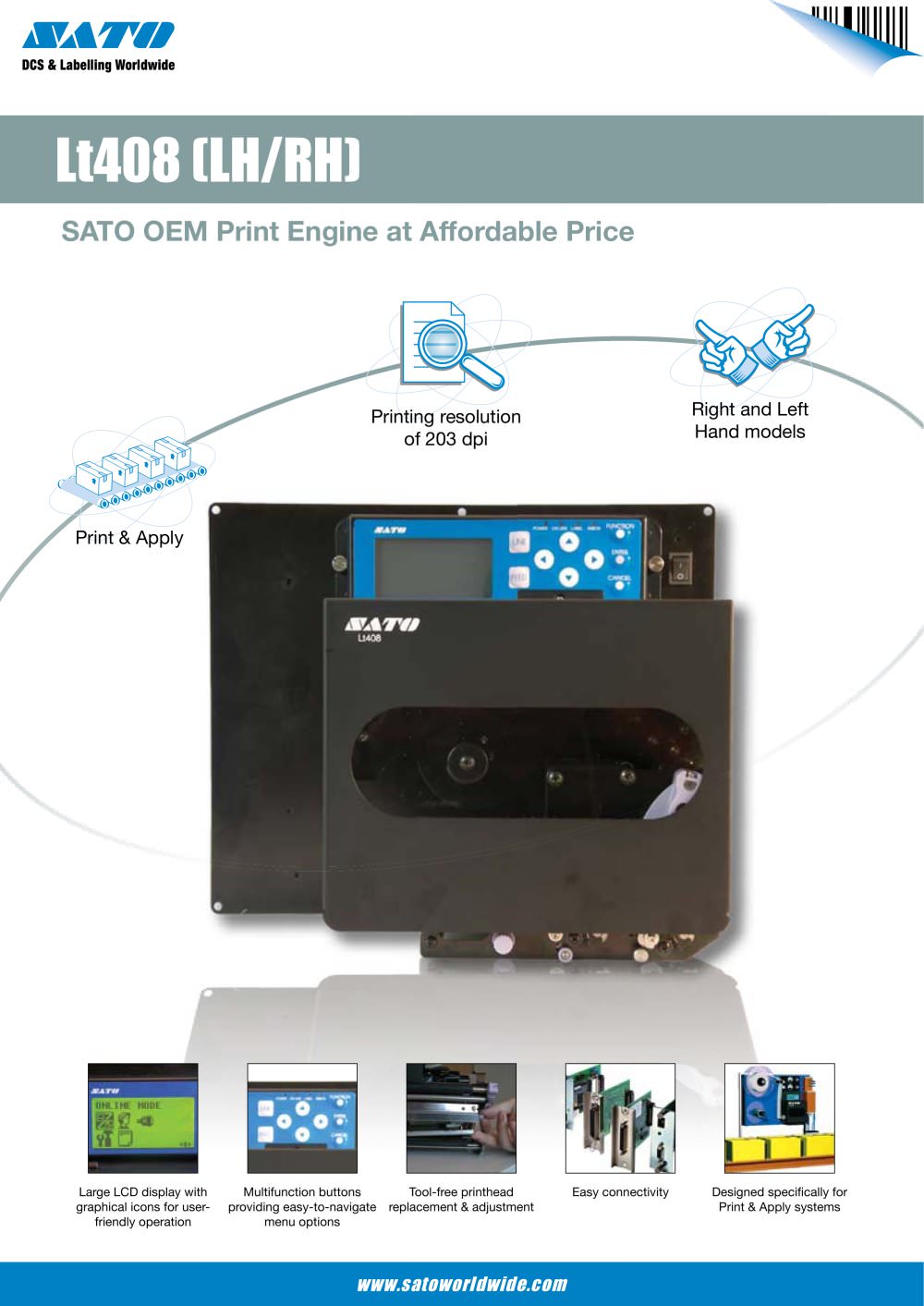

Large LCD display with graphical icons for user-friendly operation Multifunction buttons providing easy-to-navigate menu options Tool-free printhead replacement & adjustmentEasy connectivity Designed specifically for Print & Apply systems >
