LM4 serie printer

LM4 serie printer

Product catalog summary

Overview: The LM4XXe is a mid-range industrial printer designed for logistics and manufacturing industries. It features a sturdy metal chassis and heavy-duty construction, making it suitable for demanding environments.

General Specifications: The printer is available in various models, with specifications subject to change. It is distributed across multiple European countries.

Recommended Applications: The printer is ideal for compliance labeling, cargo freight labels, shipping and inventory management, and manufacturing processes. It supports a wide range of label types, including shipping, container, pallet, carton, and tracking labels.

Printing Specifications: The LM4XXe supports both direct thermal and thermal transfer printing methods. It offers print resolutions of 203 dpi and 305 dpi, with a maximum print area of 104 mm x 178 mm. Print speeds range from 51 mm/sec to 153 mm/sec.

Consumables Specifications: The printer is compatible with roll paper and fanfold media. It supports label widths from 22 mm to 128 mm and lengths from 6 mm to 178 mm. The maximum external diameter for media is 218.44 mm, with an inner diameter of 76.2 mm.

Font and Symbologies: The printer supports various fonts, including OCR-A and OCR-B, and offers options for Kanji characters. It can print 1D and 2D barcodes, including UPC, EAN, CODE39, PDF417, QR Code, and Data Matrix.

Interface Characteristics: The printer includes multiple connectivity options, such as IEEE 1284, RS232C, USB, LAN, and Wireless LAN boards.

Operating Characteristics: The printer operates within a temperature range of 5 to 40ºC and a humidity range of 30 to 80% RH. It requires AC power of 100-120/200-240V and weighs approximately 13 kg.

Additional Features: The printer offers useful features like status reports, graphic printing, sequential numbering, and custom character design. It includes self-diagnosis capabilities for head checks, paper end, and ribbon end detection.

Catalog excerpts

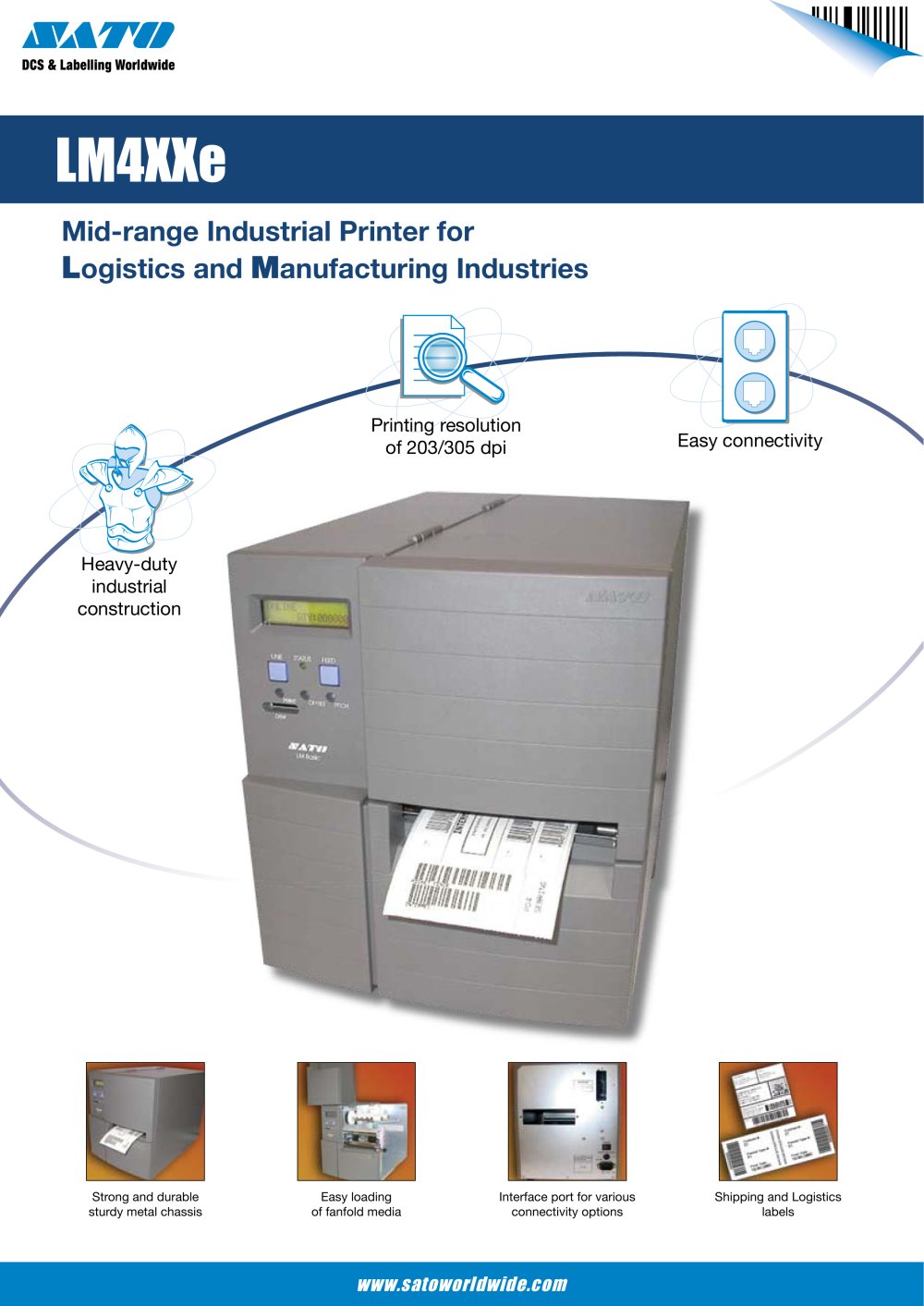

Printing resolutionof 203/305 dpi Easy connectivity Heavy-dutyindustrial construction > Shipping and Logistics labelsInterface port for various connectivity optionsEasy loading of fanfold mediaStrong and durablesturdy metal chassis www.satoworldwide.com >

Open the catalog to page 1

Printing MethodDirect Thermal, Thermal TransferPrint Resolution, dots/mm (dpi)8 dots/mm (203dpi)12 dots/mm (305dpi) Max. Print AreaWidth, mm (inch)104 mm (4,1)Length, mm (inch)178 mm (7Ԕ)Print Speed, mm/sec (ips)*From 51 mm/sec (2ips) to 153 mm/sec (6ips) CONSUMABLES SPECIFICATION (Recommended to use printer supplies manufactured or certified by SATO) Media TypeRoll paper and fanfoldMedia Size (with backing paper size)Width, mmLabel: 22 ~ 128 mm (Label with backing paper: 25 ~ 131 mm)Length, mmLabel: 6 ~ 178 mm (Label with backing paper: 9 ~ 181 mm) Thickness, mm0.08 ~ 0.26 mmMax. external diameter,...
