SATO America
HT200e printer

HT200e printer

Product catalog summary

General Overview: The HT 200e is a portable, battery-operated label dispenser designed for easy programming and low-cost operation. It features a large LCD panel and supports multilingual label design.

Recommended Applications: The device is ideal for retail environments, including promotional, shelf, and price labelling, as well as queue busting and stock taking. It supports EU-compliant fresh food labelling with features like real-time clock and automatic calculations.

Printing Specifications: The HT 200e uses direct thermal printing with a resolution of 8 dots/mm (203 dpi). It has a maximum print area of 48 mm x 96 mm and a print speed of 60 or 80 mm/sec, depending on power source.

Consumables Specifications: Recommended media includes roll or die-cut labels with pre-printed sensing eye-marks. Media sizes range from 25 to 48 mm in width and 13 to 100 mm in length.

Font and Symbologies: The device supports various fonts and barcode symbologies, including EAN8, EAN13, CODE39, and CODE128, among others.

Interface Characteristics: It features a 32-bit RISC processor and supports RS-232C for data transmission and scanner interface.

Operating Characteristics: The HT 200e operates in temperatures from 5 to 40ºC and has specific power requirements. It weighs approximately 2.5 kg with the battery installed.

Accessories: Available accessories include a battery, charger, SRAM card, rewinder, unwinder, barcode scanner, and RS-232C cable.

Additional Features: The device includes self-diagnosis functions, an operational panel with various switches, and an alphanumeric LCD display. Memory storage options include fixed and free formats, with additional capacity available via an SRAM card.

Catalog excerpts

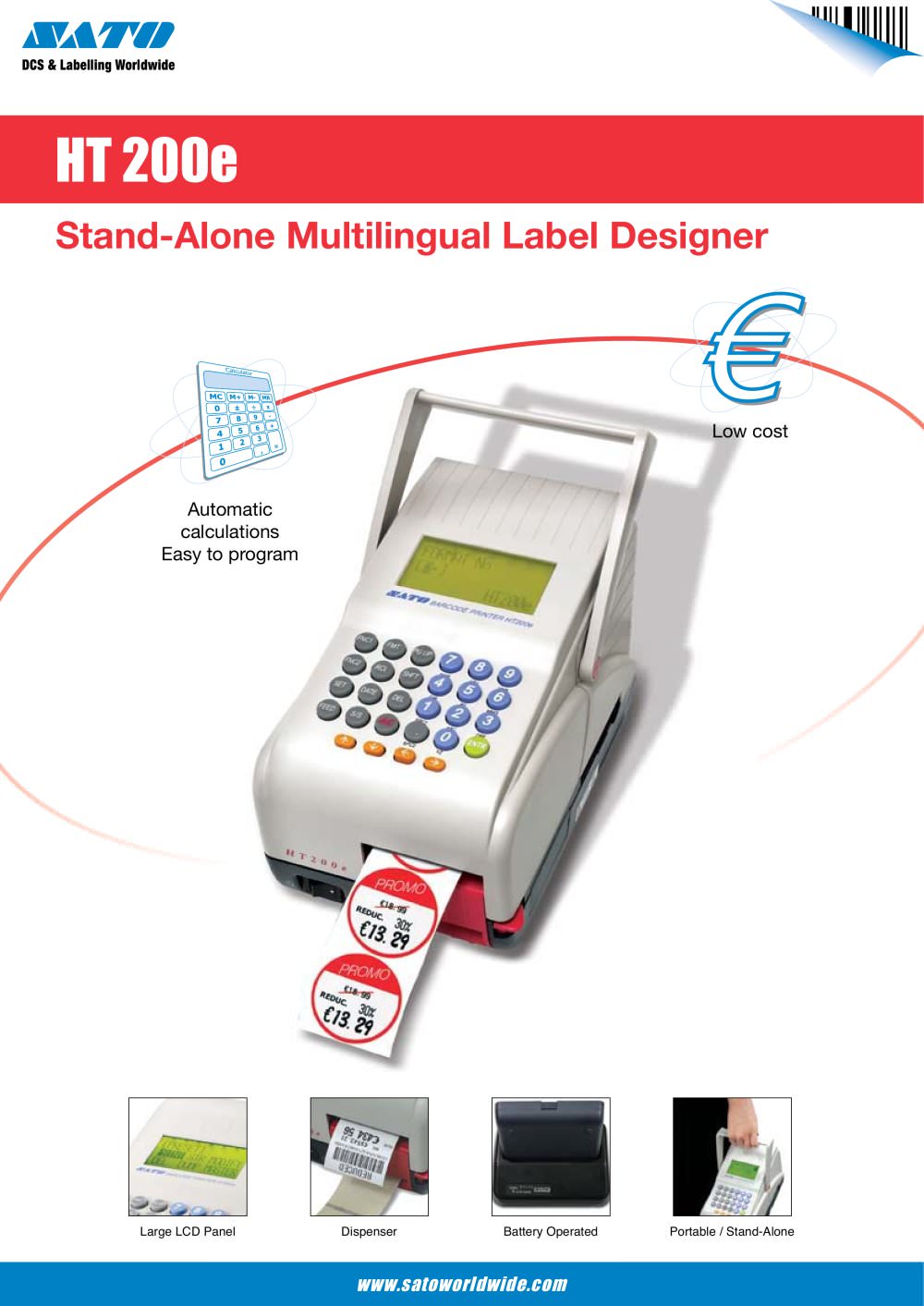

Large LCD Panel Dispenser Battery Operated Portable / Stand-Alone >

Open the catalog to page 1

PRINTING SPECIFICATION Printing MethodDirect ThermalPrint Resolution, dots/mm (dpi)8 dots/mm (203dpi) Max. Print AreaWidth, mm (inch)48 mm (1.89)Length, mm (inch)96 mm (3.78Ԕ)Print Speed, mm/sec60 or 80 mm/sec, 60 mm/s when used with battery CONSUMABLES SPECIFICATION (Recommended to use printer supplies manufactured or certified by SATO) Sensor TypeReflective sensor for use with pre-printed sensing eye-marksMedia TypeRoll, die-cut label with pre-printed sensing eye-marks. 2 colour direct thermal (E.g.: black/red) Media SizeWidth, mm25 ~ 48 mmLength, mm13 ~ 100 mm Thickness, mm0.14 ~ 0.19 mmOuter...

Open the catalog to page 2
