SATO America
GL4 serie printer

GL4 serie printer

Product catalog summary

Overview: The document provides detailed specifications and features of the SATO GL408e and GL412e printers, highlighting their capabilities in various industry applications such as aerospace, automotive, distribution, manufacturing, logistics, government, healthcare, and transportation.

Key Features: The printers support emulations, are RFID ready, and offer SATOnet CONNECTTM with Ethernet or Wireless IF. They feature a 3-port communication standard including USB, Parallel, and Serial, with a print speed of up to 10 ips.

Industry Applications: These printers are suitable for compliance labeling, service bureaus, shipping/receiving, asset tracking, WMS, logistic tracking, retail labeling, and laboratory applications.

Print Specifications: The printers use direct thermal/thermal transfer methods with resolutions of 203 dpi and 305 dpi. The maximum print area is 4.09" W x 98.98" L.

Media Specifications: They support various media types including roll and fanfold, paper, labels, and synthetics. Media sizes range from 0.87" to 5.04" in width and up to 98.98" in length.

Communication Interface: Standard interfaces include IEEE1284, RS232C, and USB 2.0, with optional wireless Ethernet and LAN.

Memory and Power: The printers have 32 MB DRAM and 8 MB Flash ROM, with power requirements of 100-120/200-240 Volts AC. Operating conditions range from 41° to 104°F.

Options: Additional options include label cutter, label dispenser, external rewinder, real-time calendar/clock, internal rewinder, and RFID capabilities.

General Specifications: The dimensions are 10.75" W x 18" D x 12" H, with a weight of 33 lbs. The document also notes that specifications are subject to change without notice.

Catalog excerpts

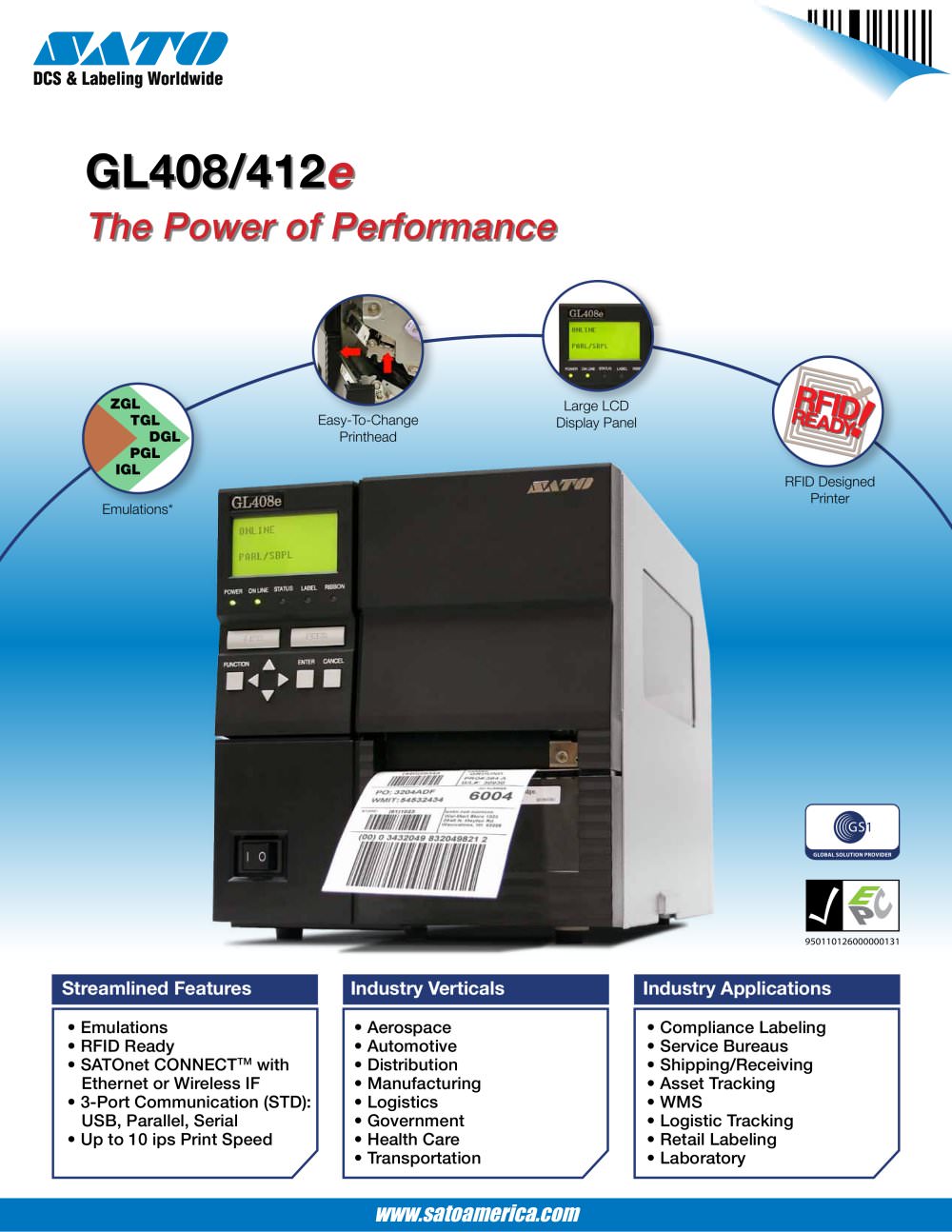

GL408/412e The Power of Performance ZGL TGL DGL PGL IGL Easy-To-Change Printhead Large LCD Display Panel RFID Designed Printer Emulations* GLOBAL SOLUTION PROVIDER 950110126000000131 Streamlined Features • Emulations • RFID Ready • SATOnet CONNECTTM with Ethernet or Wireless IF • 3-Port Communication (STD): USB, Parallel, Serial • Up to 10 ips Print Speed Industry Verticals Industry Applications • Aerospace • Automotive • Distribution • Manufacturing • Logistics • Government • Health Care • Transportation • Compliance Labeling • Service Bureaus • Shipping/Receiving • Asset Tracking • WMS • Logistic Tracking • Retail Labeling • Laboratory www.satoamerica.com

Open the catalog to page 1

General Specifications GL408/412e PRINTER MODEL GL408e GL412e PRINT SPECIFICATIONS Print Method Direct Thermal/Thermal Transfer Print Resolution 203 dpi (8 dots/mm) Print Speed 305 dpi (12 dots/mm) Up to 10 ips (254 mm/sec) Max. Print Area 4.09" (104 mm) W x 98.98" (2514 mm) L MEDIA SPECIFICATIONS Sensor Type Adjustable Reflective Sensor (for use with pre-printed marks) Adjustable See-Through Sensor (for die-cut labels with gap) Media Type Media Size Roll and Fanfold, Paper, Labels, Synthetics Width 0.87" (22 mm) - 5.04" (128 mm) Length (Continuous) 0.24" (6 mm) - 98.98" (2514 mm) Length (Tear-Off)...

Open the catalog to page 2
