SATO America
CT4i serie printer

CT4i serie printer

Product catalog summary

Overview: The document provides technical specifications for SATO's compact high-performance label and wristband printers, models CT408i, CT412i, and CT424i. These printers are designed for high-speed printing with resolutions of 203, 305, and 600 dpi, featuring antimicrobial casing and wireless connectivity.

Printing Specifications: The printers support both Direct Thermal and Thermal Transfer printing methods. They offer a maximum print area of 104 mm in width and 400 mm in length, with print speeds varying from 76 mm/sec to 150 mm/sec depending on the resolution.

Consumables Specifications: Recommended media includes roll paper and fanfold media with specific dimensions and thickness. The maximum external diameter for media rolls is 110 mm, and carbon ribbons have a maximum length of 100 m.

Fonts and Symbologies: The printers support various internal fonts and a wide range of 1D and 2D barcodes, including QRCode and PDF 417. Character rotation is available at 0º, 90º, 180º, and 270º.

Communication Interfaces: Standard interfaces include USB2.0 and RS232C, with optional WLAN and Bluetooth connectivity. The printers are equipped with a 32-bit RISC processor, 4MB Flash memory, and 16MB SDRAM.

Operating Characteristics: The printers operate within a temperature range of 5 to 35ºC and a humidity range of 30 to 80% RH. They have a power consumption of 90W and conform to various safety and regulatory standards, including CE and RoHS.

Accessories and Options: Available accessories include a cutter, dispenser, RFID, smart keyboard, unwinder, and rewinder.

Catalog excerpts

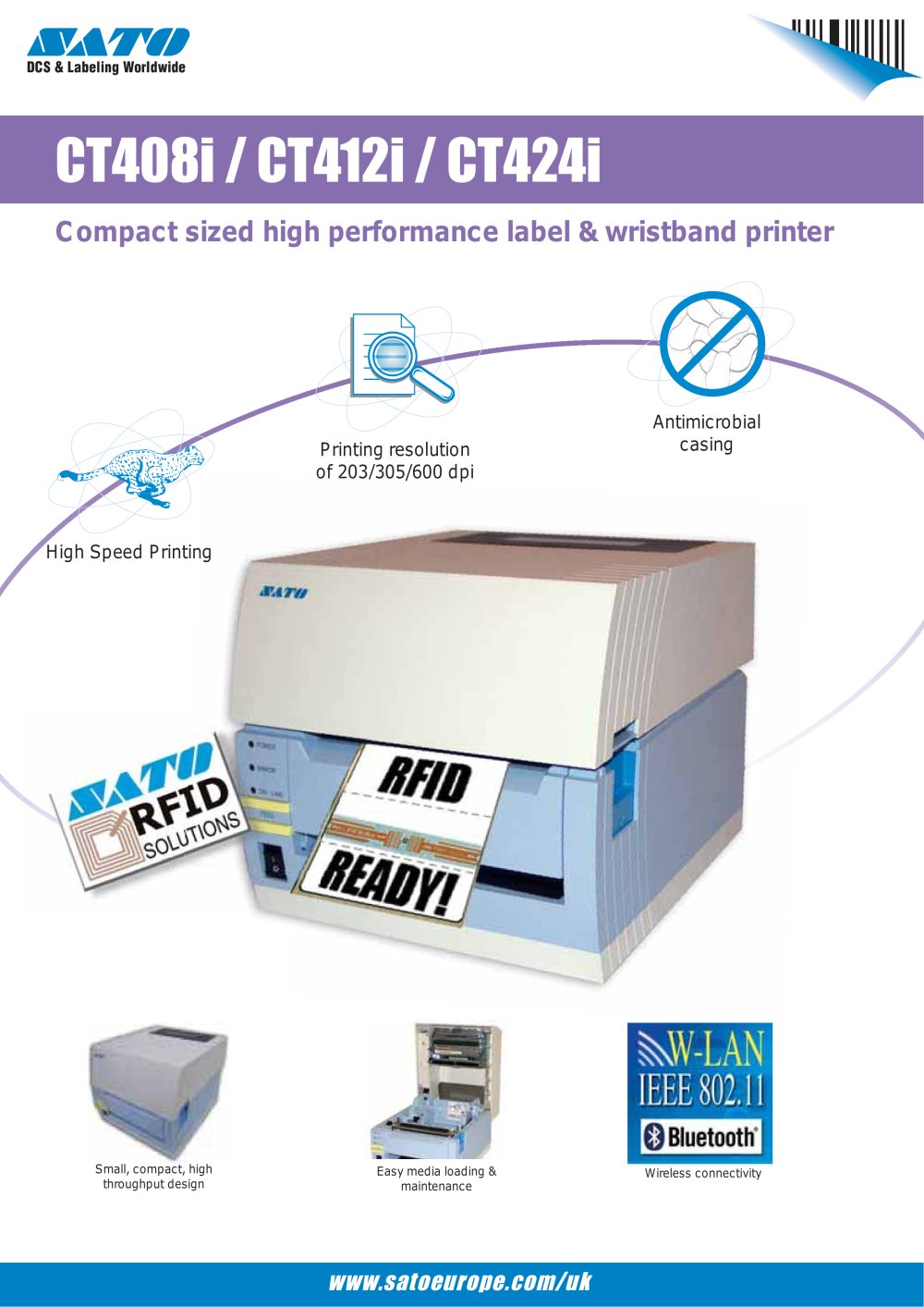

Antimicrobial casing of 2 03 High Speed PrintingPrinting resolutionof 203/305/600 dpi n g > Small, compact, high throughput designEasy media loading & maintenanceWireless connectivity

Open the catalog to page 1

Printing MethodDirect Thermal; Thermal TransferPrint Resolution, dpi (dots/mm)203dpi (8dots/mm)305dpi (12dots/mm)600dpi (23,6dots/mm) Max. Print Area Width104 mm (4.1)Length400 mm (15.7Ԕ)Print Speed, mm/sec (ips)*150mm/sec (6ips)102mm/sec (4ips)76mm/sec (3ips) CONSUMABLES SPECIFICATION (Recommended to use printer supplies manufactured or certifi ed by SATO) Sensor TypeTransmissive sensor for gap, Refl ective sensor for I-markMedia TypeRoll paper (Outside wound!) & Fanfold media (max. stack height: 100mm)Media SizeWidth, mm 25 to 115mmLength, mm15 to 397mmThickness, mm0.08 to 0.19 mmMedia Roll...

Open the catalog to page 2
