SATO America
CL6 serie printer

CL6 serie printer

Product catalog summary

General Overview: The SATO CL6XXe is a high-speed industrial wide web printer designed for heavy-duty use. It offers easy connectivity and is Windows™ compatible, with XML-enabled printing capabilities. The printer is constructed for industrial environments and supports a print width of up to 6 inches.

Printing Specifications: The printer supports both direct thermal and thermal transfer printing methods. It offers print resolutions of 203 dpi and 305 dpi, with a maximum print area width of 152 mm (6.0 inches) and 165 mm (6.5 inches). The maximum print speed is up to 200 mm/sec (8 ips).

Consumables Specifications: Recommended to use SATO-manufactured or certified supplies. It includes a reflective sensor for pre-printed marks and an adjustable see-through sensor for die-cut labels. Media types include roll die-cut labels, pre-printed labels, plain paper stock, and tag stock.

Font and Symbologies: The printer supports internal bitmap fonts, outline fonts, and downloadable TrueType fonts. It can print various 1D and 2D barcode symbologies, including EAN, UPC, CODE 39, PDF417, QR Code, and Data Matrix.

Interface Characteristics: The printer is equipped with a 32-bit RISC processor and offers optional interfaces such as RS232C, IEEE 1284, LAN, WLAN, USB, and RS-422/485.

Operating Characteristics: Power requirements are 115V/220V with a frequency of 50/60 Hz. The operating environment ranges from 5° to 40°C with 15-85% relative humidity. Storage conditions are -5° to 60°C with up to 90% relative humidity.

Accessories and Additional Features: Available accessories include a label cutter, dispenser, rewinder, and expansion memory. The printer features self-diagnosis capabilities, including head check, paper end detection, and ribbon near-end detection.

Recommended Applications: The printer is suitable for shipping and inventory management, retail, and transportation/logistics. It supports RFID technology for high-frequency and ultra-high-frequency applications.

Catalog excerpts

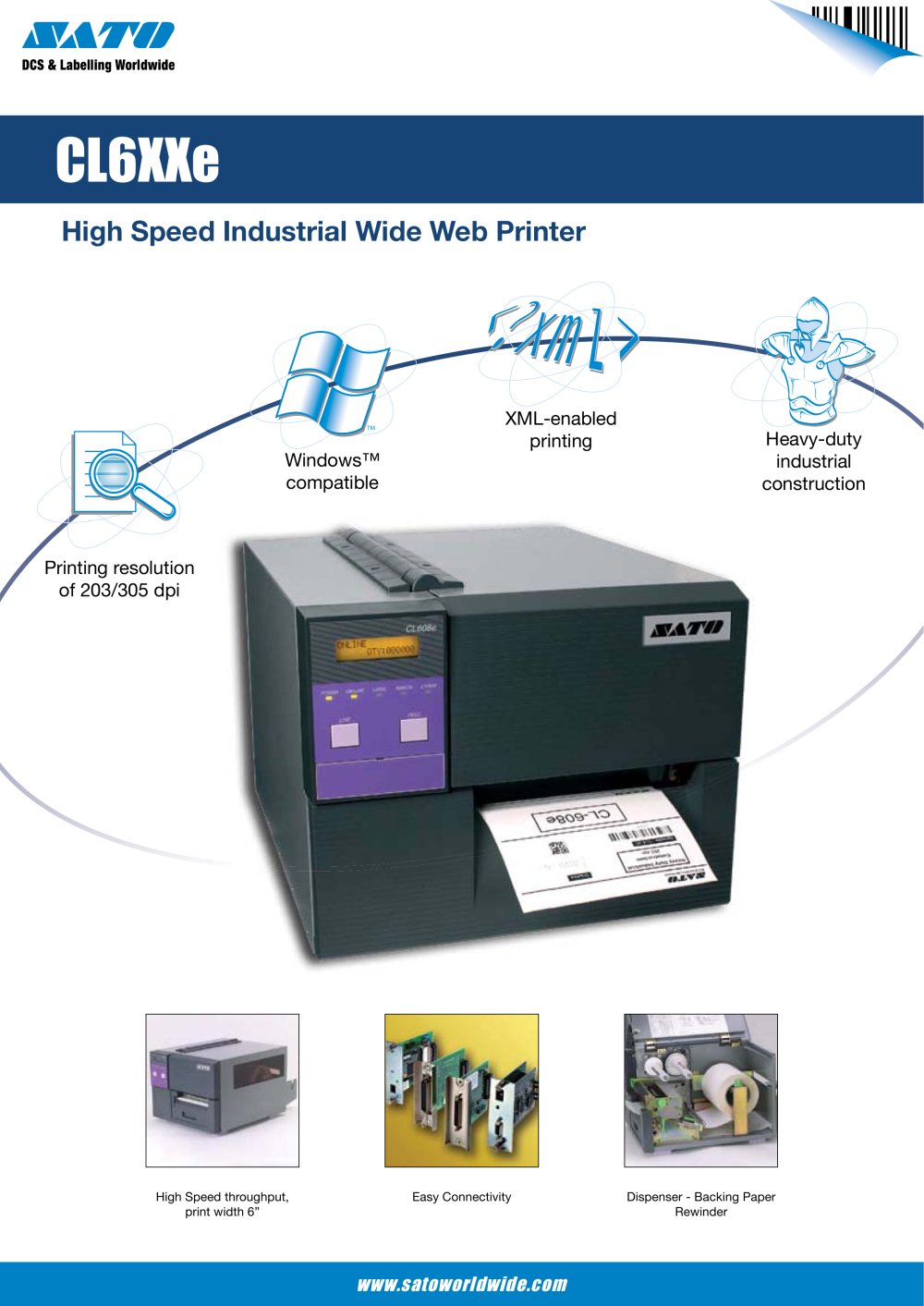

TM XML-enabled printing Heavy-duty industrial construction Windowscompatible Printing resolutionof 203/305 dpi > High Speed throughput, print width 6ٔEasy ConnectivityDispenser - Backing Paper Rewinder www.satoworldwide.com >

Open the catalog to page 1
