SATO America
CL4 RFID printer

CL4 RFID printer

Product catalog summary

General Overview: The document provides detailed specifications and applications for the SATO RFID Printer, specifically the CL 400e RFID model. It highlights the printer's compatibility with Windows and its easy connectivity features, emphasizing its use in heavy-duty industrial construction.

Recommended Applications:

Logistics/Warehouse: RFID tags streamline logistics by enabling real-time scanning, improving delivery precision, and reducing manpower.
Garment Industry: RFID tags enhance textile labeling, improve handling, ensure traceability, and act as a theft deterrent.
Library Information Systems: RFID tags facilitate efficient check-in/out processes, reduce human intervention, and enhance inventory management.
Product Traceability: RFID improves freight tracking, inventory control, and quality management across the supply chain, benefiting manufacturers, wholesalers, retailers, and consumers.

Printing Specifications:

Method: Direct or Thermal Transfer
Resolution: 8 dots/mm (203dpi) / 12 dots/mm (305dpi)
Max Print Area: Width 104 mm (4.1”), Length 1249 mm (49.2”) / 833 mm (32.8”)
Speed: Up to 150 mm/sec (6 ips)

Consumables Specifications:

Sensor Type: Movable transmissive and reflective sensors
Media Type: Roll or fan-fold die cut labels, plain paper, synthetics
Media Size: Width 22-131 mm, Length 6-1249 mm / 6-833 mm
Thickness: Max 0.25 mm
Outer Diameter: Max 218 mm
Ribbon: Inner Diameter 25.4 mm, Width Max 111 mm, Length 450 m

Font/Symbologies:

Fonts: 12 internal fonts, scalable TrueType® fonts
Barcode Symbologies: Linear and 2-Dimensional options including UPC, EAN, Code 39/93/128, QR Code, etc.
RFID Standards: 13.56 MHz label (ISO 15693), 868 MHz (multi protocol)

Interface Characteristics:

Processor: 32-bit RISC
Optional Interfaces: RS232C, IEEE1284, LAN, WLAN, USB

Operating Characteristics:

Power Requirements: 115V/220V, 50/60 Hz
Environment: Operating 5° to 40°C, Storage -5° to 60°C
Dimensions: W 271 mm x D 430 mm x H 321 mm, Weight 13 kg

Accessories: Cutter, Dispenser with Internal Backing Paper Rewinder, Real Time Clock, Memory Expansion, Rewinder

Other Features: Verification of encoded data, SSCC/SGTIN EPC encoding, Self Diagnosis Checking, RFID tag error features

Catalog excerpts

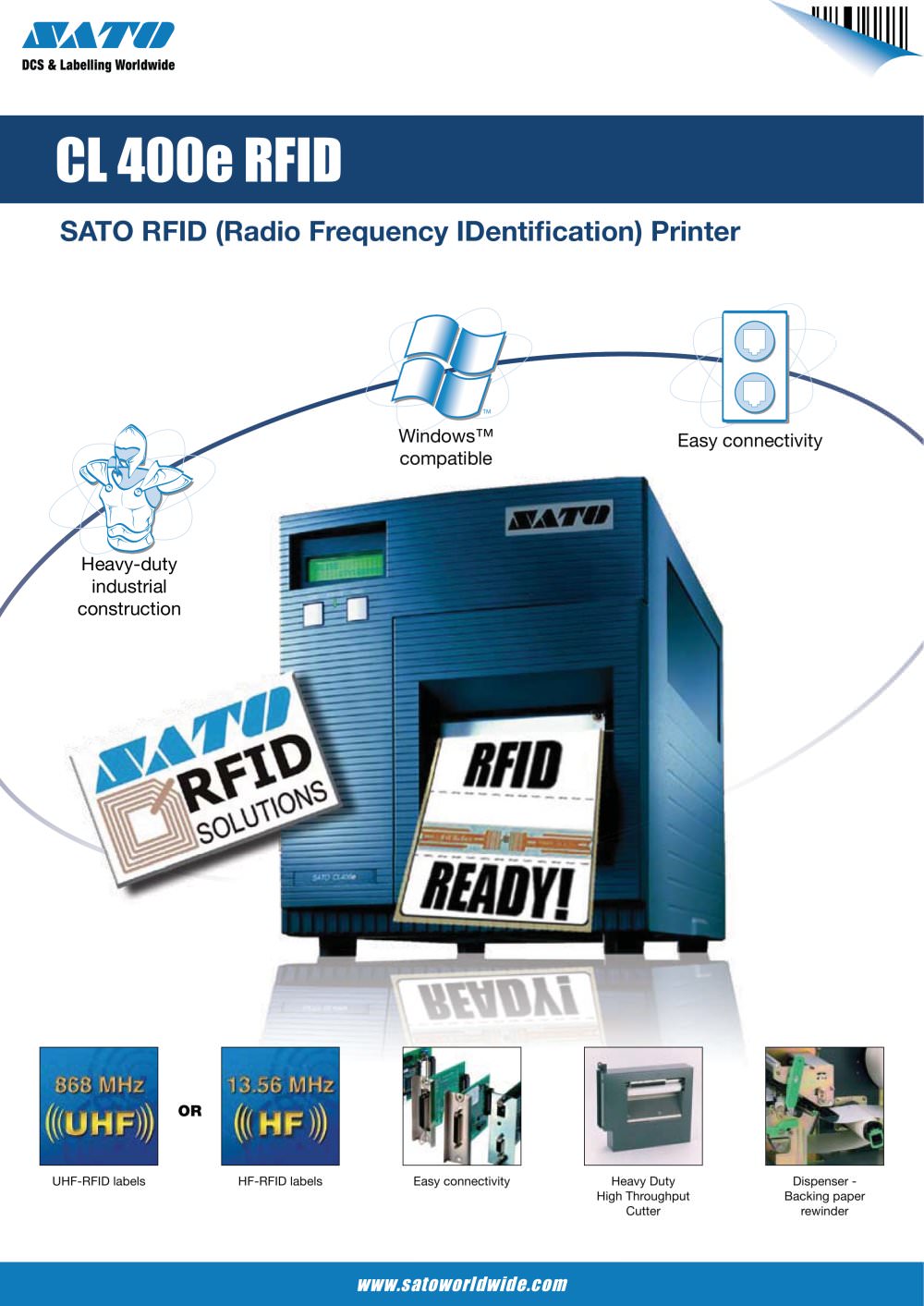

TM Windowscompatible Easy connectivity p Heavy-dutyindustrial construction H eav y -dut y i n dus tr ial c onstruct i on > OR UHF-RFID labels HF-RFID labels Heavy DutyHigh ThroughputCutter Dispenser - Backing paperrewinderEasy connectivity www.satoworldwide.com >

Open the catalog to page 1

Printing MethodDirect or Thermal TransferPrint Resolution, dots/mm (dpi)8 dots/mm (203dpi) / 12 dots/mm (305dpi)Max. Print AreaWidth, mm (inch)104 mm (4.1)Length, mm (inch)1249 mm (49.2Ԕ)833 mm (32.8)Print Speed, mm/secUp to 150 mm/sec (6 ips) CONSUMABLES SPECIFICATION (Recommended to use printer supplies manufactured or certified by SATO) Sensor TypeMovable transmissive sensor for die cut labels and tags. Reflective sensor for use with pre-printed sensing marks. Automatic or programmable setting of top of form.Media TypeRoll or fan-fold die cut labels, plain paper face stock and synthetics....

Open the catalog to page 2
