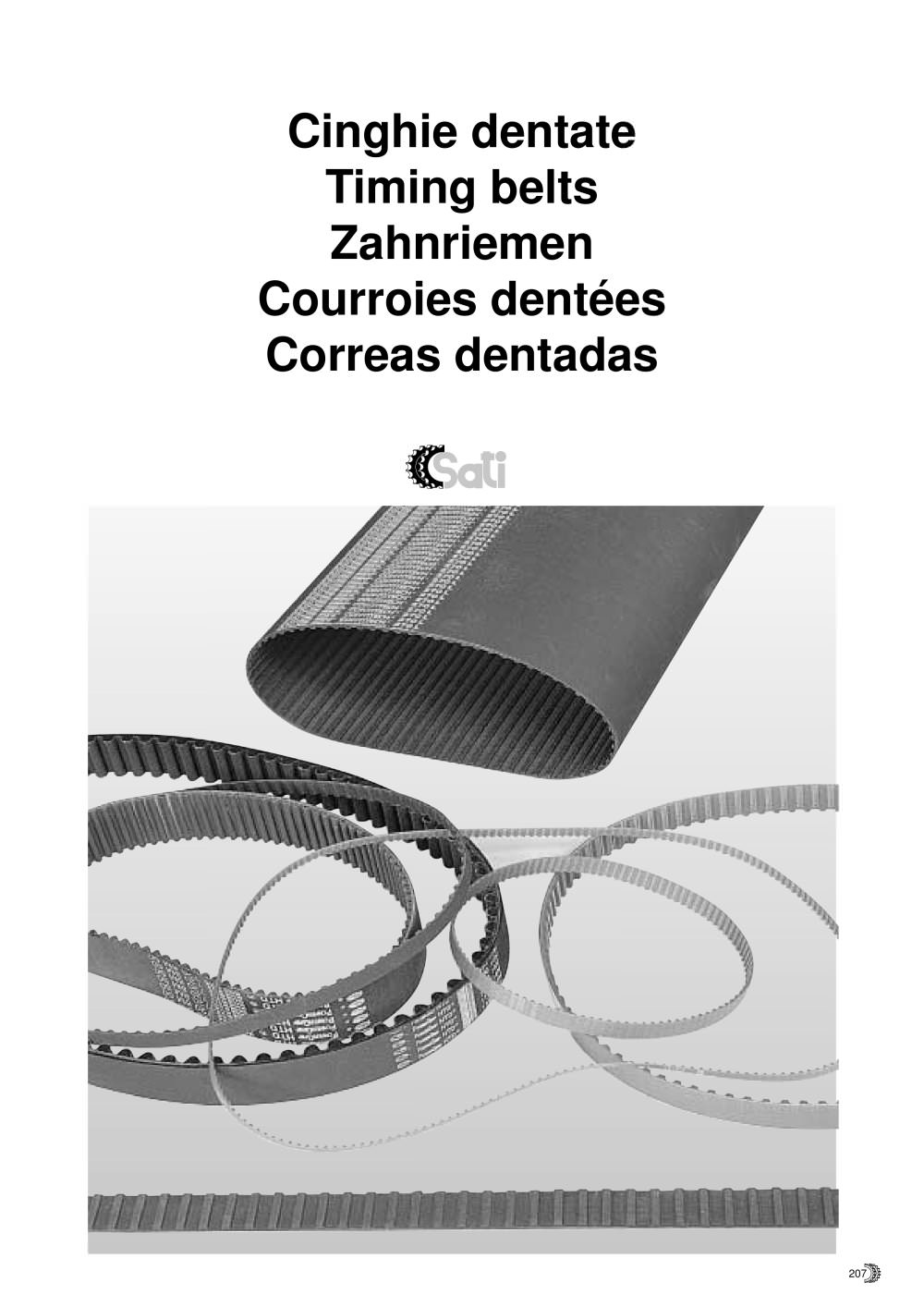

Timing belts imperial pitch

Product catalog summary

Overview: This document outlines the technical specifications and characteristics of timing belts, focusing on their construction, dimensional attributes, and typical applications.

Belt Construction Characteristics:

Resistive Insert: The belt's core is made from a high-strength, inextensible material, spirally wound to define the pitch line and bear loads.
Body of the Belt: Constructed from neoprene, it provides excellent resistance to fatigue, heat, and mineral oils.
Tooth Covering: A nylon fabric reduces friction and enhances transmission efficiency, offering increased lubrication during operation.

Dimensional Characteristics:

Pitch Line Length: Measured along the resistive insert axis.
Pitch: The distance between two contiguous teeth axes, essential for matching belt and pulley pitches.
Width: Determined by the power to be transmitted, with pulleys slightly wider to accommodate tolerances.

Definitions and Symbols:

lp: Pitch line length
P: Pitch
Lc: Belt width
Lp: Pulley width
Z: Number of teeth
Dp: Pulley pitch diameter
De: Outer pulley diameter

Common Applications:

Belt Pitch: Different pitches are suitable for applications like precision machinery, typewriters, calculators, and household appliances.

Specifications:
Belts operate within -25°C to +85°C and tolerate small oil amounts. Avoid sharp bending or tight wrapping to prevent reinforcement layer damage. All belts have a ground back, and for special applications, consult engineers for different thickness or tolerances.

Standard Tolerances:
Standard width tolerance for XL-L and H belts is specified in inches and millimeters. For XXH belts, the width tolerance is +8 mm for any width or length.

Nominal Thickness:
Nominal thickness on the tooth is specified for belt types (XL, L, H, XH, XXH) with tolerance degrees.

Recommendations:
For conditions not covered in the graph, contact technical support. For fixed axis-to-axis transmissions or special tolerances, consult technicians.

Graphical Data:
A graph is included for selecting belt pitch, showing corrected transmission power (Pc) in kW and revolutions per minute of the smallest pulley.

Catalog excerpts

CARACTERISTICASDIMENSIONALES Las caractersticas distintivasde este tipo de correa se indi- can de la siguiente manera:1) Longitud primitiva2) Tipo 3) AnchoEjemplo: 670 XH 300 El primer nmero indica lalongitud primitiva, expresada en dcimas de pulgada (vase la tabla de pg. 5-6). Las letras definen el paso y, por lo tanto, el tipo de correa (XL - 1/5" (5,00) - L = 3/8" (9,525), etc.). El 顺ltimo nmero indica el ancho de la correa y se expresa en centsimas de pulgada. DIMENSIONS: Les ꩩlments qui permettentde distinguer le type d'une courroie sont:1) La longueur primitive2) Le type 3) La largeurExemple:...

Open the catalog to page 2

10.000 > numero dei giri della puleggia minore / r.p.m. of smallest pulleys / Drehzahl der kleineren Reimenscheibenombre de tours de la petite poulie / n졺mero de revoluciones por minuto de la polea menor Potenza da trasmettere corretta (Pc) in KW / Correct transmission power (PC) in Kw / Antriebskraft (Pc) in kWPuissance transmettre correcte (Pc) en kW / Potencia para transmitir corregida (Pc) en KW Per condizioni di esercizio non comprese nel presente grafico interpellare i nostri tecniciContact our technicians for operating conditions not included in this graph Fr Betriebsbedingungen, die nicht...

Open the catalog to page 9
