SATI
Roller Chains

Roller Chains

Product catalog summary

Main Components of Roller Transmission Chains:
Roller transmission chains are composed of shaped side plates, roller bearing pins, and rollers that engage with gear wheels. Key dimensions include internal width (W), roller diameter (d), and roller diameter (D). The pitch (p) is the distance between pins. Accessories such as connecting and offset links require spring clips or cotters for attachment.

Figures and Illustrations:
Illustrations include typical chain pitch, connecting links with different locks, assembly of side plates, and differences between offset and traditional links.

Standards and Durability:
Chains adhere to European (ISO/R 606-1982, DIN 8187) and American (ANSI, DIN 8188) standards, with American standards focusing on fatigue resistance. Wear and fatigue can affect pitch and lead to breakage if workload exceeds specifications.

Supply and Customization:
Chains are supplied in 5m rolls with common pitches, but custom lengths are available. The number of pitches is typically odd, with connecting links making it even and offset links returning it to odd.

Technical Notes on Chain Length:
For chains forming a ring with an even number of pitches, specify the number of pitches and use a riveted link.

Example for Determining Chain Transmission:
The transmission ratio (τ) is calculated as the quotient of the driven wheel (Z2) over the driving wheel (Z1). Correction coefficients C1 and C2 adjust for load type and cyclical inputs.

Transmission Chain Specifications and Design Criteria:

1. Transmission Ratio Definition: τ = Z2/Z1.

2. Correction Coefficients: Coefficients C1 and C2 are used to parameterize transmission based on load type and cyclic activations.

3. Design Criteria for a Transmission Chain:

Ensure a 120° arc wrap around the driving wheel.
Maintain proper chain tension using idler sprockets if necessary.
Ensure correct lubrication to prevent wear.

4. Chain Length Determination: Theoretical chain length (Sv) is calculated using a specific formula involving center-to-center distance, teeth numbers, and pitch.

5. Lubrication and Environmental Considerations: Lubrication type depends on chain speed and dimensions, with specific types for different temperature environments.

6. Chain Types and Specifications: Specifications for simplex, duplex, and roller chains include dimensions, breaking load, and weight per meter, adhering to ISO standards.

Overview: The document details technical specifications for triplex, simplex, duplex, and roller chains in European and American series, including dimensions, weight, and load capacities, with ISO 9001 certification.

Specifications:

Chain Types: Triplex, Simplex, Duplex, Roller Chains.
Series: European, American, Stainless Steel.
Certifications: ISO 9001 accredited.

Dimensions and Measurements:

Designation: Metric and imperial units.
Parameters: Includes pitch (p), width (W), diameter (D).

Weight and Load Capacities:

Weight per Meter: Detailed for each chain type and size.
Breaking Load: Specified in Newtons (N) for each chain type and size.

Key Data from Tables:

Dimensions, weight per meter, and breaking load for each chain type.
Data organized by chain type and series with specific codes.

Recommendations:

Verify dimensions and load capacities for compatibility.
Select stainless steel for corrosive environments.

Catalog excerpts

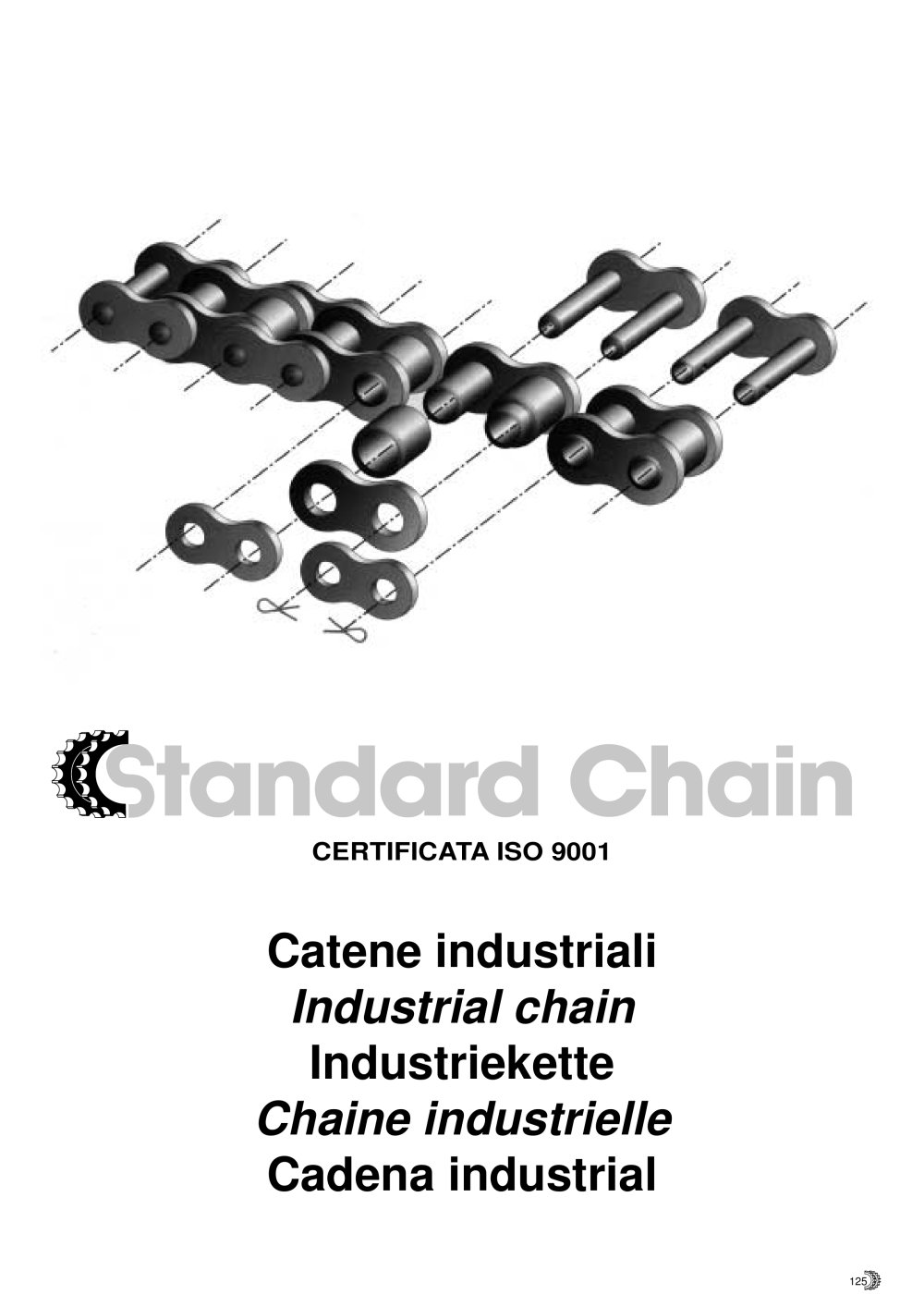

CERTIFICATA ISO 9001 Catene industriali Industrial chain Industriekette Chaine industrielle Cadena industrial > 125 size="-2">

Open the catalog to page 1

Fig. 1 TUTTE LE NOSTRE CATENE SONO PRESTIRATEALL OUR ROLLERCHAINS ARE PRE-LOADED ALLE UNSERE ROLLENKETTEN SIND VORGERECKT TOUTES NOS CHAINES SONT PRE-ETIREES TODA NUESTRA CADENAESTA PREESTIRADA I principali componenti di una catena di trasmissione a rulli, sono:Piastre laterali sagomate di larghezza interna > Fig. 2 (W) Perni porta rulli avente diametro (d) Rulli, che si accoppiano con l'ingranaggio, aventi diametro (D) La distanza dei perni ne determina il passo (p) Gli accessori pertinenti alla catena sono le maglie di giunzione , le false maglie (adue o tre rulli); per rendere solidali detti...

Open the catalog to page 2

Remarques techniques Une chane de transmission rouleaux secompose essentiellement de:plaques latrales profiles de largeur interne(W),pivots porte rouleaux, diamtre (d),rouleaux qui s騒accouplent lengrenage,diamҨtre (D),La distance entre les pivots dtermine le pas(p).Les accessoires indispensables la cha頮nesont les attaches rapides et les faux maillons( deux ou trois rouleaux); pour que ces partiessoient solidaires avec la chane, on utilise despince (s) ou, en alternative, des goupilles.La fig. 1 illustre le pas typique (p) de la chaமne;la fig. 2 illustre l'attache rapide avec blocage pince (s)...

Open the catalog to page 3

PACKAGES PER TYPE / PACKUNG PRO EINZELTEIL / EMBALLAGE DES DIFFERENTS ELEMENTS / ENVASES POR PIEZA > τ =Z2/Z1 INTRODUCTION: τ =Z2/Z1 VORAUSSETZUNG: PRELIMINAIRES: PREMISA: 3) C1 coefficient: 2) Coeficientes de correccin 1) Determining transmission ratio 2) Correction coefficients This is determined by the type of load the machine is subjected to depending on thework that must be performed and the typeand quantity of cyclical inputs by the driving wheel. ㏄ 1) Bestimmung desbersetzungsverhܤltnisses = Z2/Z1 1) Dfinition du rapport de transmission 3) Coeficiente C1: 1) Determinacin de la relaci鳳n...

Open the catalog to page 4

TAB. 1 PARTE CONDUTTRICE / DRIVING PART / ANTRIEBSEINHEIT /ELEMENT MENANT / PARTE CONDUCTORATipo di lavoro Ciclo alternato leggero Ciclo alternato medio > gentle cycle / weicher Ablaufcycle lger / ciclo dbil light alternate cycle / leichterWechselablauf / cycle altern驩lger / ciclo alterno ligero medium alternate cycle / mittlererWechselablauf / cycle alternmoyen ciclo / alterno medio Type of work / Art des ArbeitsgangsType de travail / Tipo de trabajo Carico costante > Constant load / Konstante BelastungCharge constante / Carga constante 11,41,8 1,11,51,9 Ciclo dolce 1,31,72 Carico discontinuo...

Open the catalog to page 5

2 4 102030405060708090100120 > C2 C2 C2 C2 C2 Koeffizient Coefficient Coefficient Coeficiente COEFFICIENTE .2 CRITERIOS DE LOS PROYECTOS DE UNATRANSMISIГN DE CADENA ) Una tensiгn apropiada de la cadena es labase para una buena transmisin; para ello, hay que utilizar poleas directrices dentadas u otros medios normalmente en comercio (esto cuando no sea posible regular la distancia). Fruto de la experiencia se considera que la flecha de flexinno tiene que ser superior al 1% de la dimensi㳳nde la distancia (la cota f se tiene que medir en la mitad de steltimo). 3) Una buena lubricaci麳n, adems de...

Open the catalog to page 6

Parametri da tener presente sono i seguenti: > Parameters to be remembered are the following:Dabei sind folgende Parameter zu bercksichtigen:Paramtres de r쨩frence: Parmetros que hay que tener en consideraci顳n: Ambiente freddoCold environment / Kalte UmgebungClimat froid / Ambiente froAmbiente normaleNormal environment / Normale UmgebungClimat normal / Ambiente normalAmbiente caldoWarm environment / Warme UmgebungClimat chaud / Ambiente calurosoAmbiente torridoHot environment / Heie UmgebungClimat torride / Ambiente muy calurosoAltissime temperatureVery high temperatures / HochtemperaturenTempퟩratures...

Open the catalog to page 7
