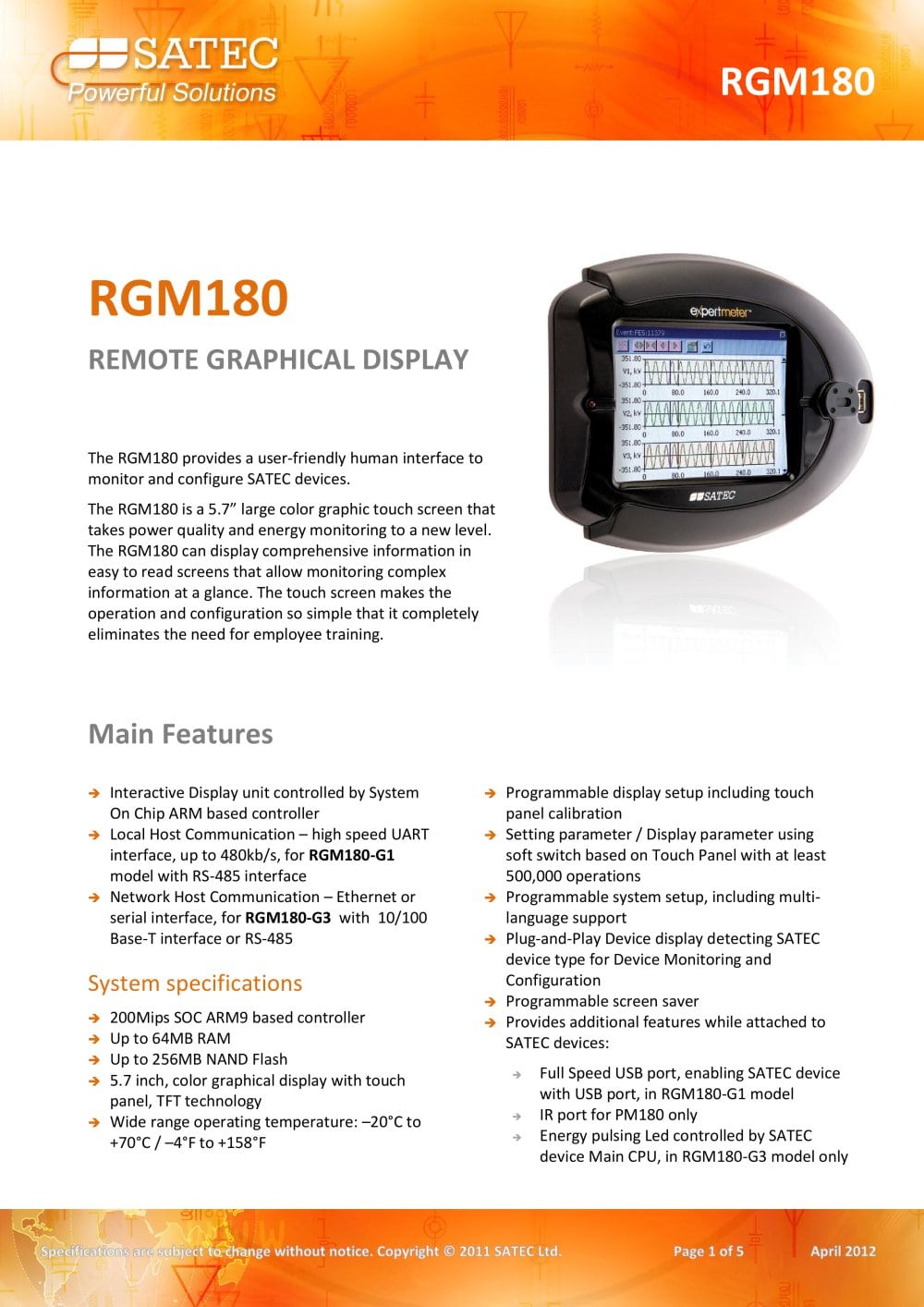

RGM180REMOTE GRAPHICAL DISPLAY The RGM180 provides a user-friendly human interface to monitor and configure SATEC devices. The RGM180 is a 5.7" large color graphic touch screen that takes power quality and energy monitoring to a new level. The RGM180 can display comprehensive information in easy to read screens that allow monitoring complex information at a glance. The touch screen makes the operation and configuration so simple that it completely eliminates the need for employee training. * Interactive Display unit controlled by System On Chip ARM based controller * Local Host Communication - high speed UART interface, up to 480kb/s, for RGM180-G1 model with RS-485 interface * Network Host Communication - Ethernet or serial interface, for RGM180-G3 with 10/100 Base-T interface or RS-485 System specifications * 200Mips SOC ARM9 based controller * Up to 64MB RAM * Up to 256MB NAND Flash * 5.7 inch, color graphical display with touch panel, TFT technology * Wide range operating temperature: -20°C to +70°C / -4°F to +158°F * Programmable display setup including touch panel calibration * Setting parameter / Display parameter using soft switch based on Touch Panel with at least 500,000 operations * Programmable system setup, including multilanguage support * Plug-and-Play Device display detecting SATEC device type for Device Monitoring and Configuration * Programmable screen saver * Provides additional features while attached to SATEC devices: * Full Speed USB port, enabling SATEC device with USB port, in RGM180-G1 model * IR port for PM180 only * Energy pulsing Led controlled by SATEC device Main CPU, in RGM180-G3 model only
Open the catalog to page 1RGM180 Models RGM180-G1 The RGM180-G1 controls and monitors information from a single SATEC eXpertMeter™. The RGM180-G1 can be connected directly without an additional power source to PM17x or ezPAC SA3x0. The PM17x is attached directly to the RGM180 (which replaces the LED display—as shown in the image on the left). The ezPAC is connected via cable, up to 10m long. Up to 1000m (slow baud rate) cable can be used with remote power supply for both ezPAC and PM17x direct connection. The RGM180-G1 adds to existing SATEC meter devices full speed USB 2.0 capabilities. RGM180-G3 The RGM180-G3...
Open the catalog to page 2RGM180 Technical SpecificationsCOMMUNICATION PORTS COM1 IR Communication Port - PM180 Device Only Protocols Modbus RTU/ASCII and DNP3.0 USB device port Isolation 2.5 KVAC @ 1mn USB connector DISPLAY Panel USB type A, vertical mount, straight PANEL DISPLAY Touch-Panel LCD graphic display, 1 Wh pulse led, IR port and USB Device/Host connector Type A Size 5.7" / 14.5mm Type TFT - color with Touch Panel Outline dimensions (WxHxD) 0.5 x 4 x 0.6" 13 x 102 x 14.5mm Active area (WxH) 4.5 x 3.4" NON-VOLATILE MEMORY For energy and tariff registers Basic 256MB logging, EV-PQ-DATA-WV...
Open the catalog to page 3SATEC owerful Solutions RGM180 Dielectric withstand insulation 3000 VDC@ 1mn Main Output voltage +12V DC ± 1% Dielectric withstand insulation 1500 VDC @ 1mn Power consumption 2W Operating Temperature range -40°C to + 85°C -40°F to +185°F TEMPERATURE LIMIT RANGE
Open the catalog to page 4RGM180 Order String RGM180 - GRAPHIC TOUCH SCREEN DISPLAY Display Direct connection to PM17x - 15 pin D-Type connector G1 Remote connection - 15 pin D-Type and RJ-45 G3 Cable No cable (direct connection to PM17x or PM180, or RJ45 connection) C00 10m/33 ft cable for PM130, EM133 or EM920. Requires Power Supply C01 10m/33 ft cable for PM17x or PM180. Requires Power Supply C02 10m/33 ft cable for EM720. Requires Power Supply C04 Power Supply None -
Open the catalog to page 5All SATEC catalogs and technical brochures
-
