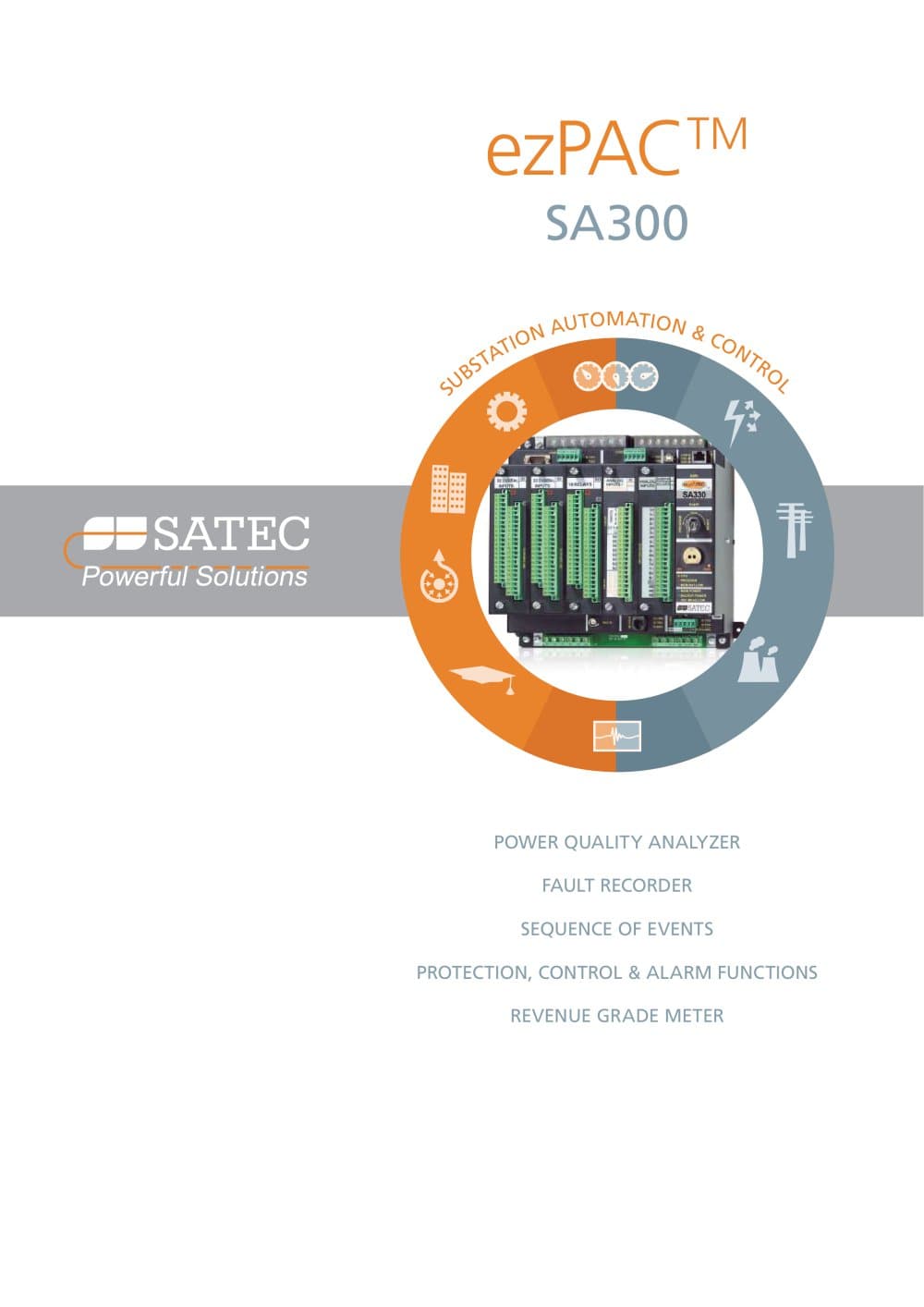

POWER QUALITY ANALYZER FAULT RECORDER SEQUENCE OF EVENTS PROTECTION, CONTROL & ALARM FUNCTIONS REVENUE GRADE METER

The Add-On Automation Solution CB PT 4 Channels of AC Current to 20 Amps (4X) Web-based Energy Management Service Serial Communication 4 Channels of AC Current to 150 Amps (30X) Power Analysis Software Dual Power Supply Up to Five Plug-in I/O Modules: Alarm Messages (SMS via eXpertpower™) Digital Inputs Relay Outputs Substation Battery Measurement Analog I/O Transient IRIG-B Time Sync GPS IR Port Remote Display Status Indication

The ezPAC™ SA300 is a part of SATEC's Power Intelligence Unit (PIU) Family Series, combining an advanced power analysis and control device. The SA300 Series is a fusion of many Intelligent Electronic Devices (IEDs) incorporated into a single powerful unit. It consolidates 6 functions to provide a complete solution for both substations and industrial automation: □ Revenue Grade Metering □ Power Quality Analyzer □ Distributed Fault Recorder □ Sequence of Events (SoE) □ Backup Protection equipment □ Device Control The unique modular expansion chassis of the ezPAC™ SA300 series ensures meeting the...

Sequence of Designed for an electrical utility substation or industrial environment, to record contact openings or closings of field devices such as electromechanical and microprocessor controlled relays. The Sequence of Events (SoE) Recorder can log four types of events: digital input events, relay output events, fault events and setpoint events. When displaying the SoE Log reports, PAS (see pg. 7) establishes links between the event and other database records where it finds a relationship between the recorded data and the event. Comprehensive display and analysis tools allow accurate display...

Cutting Edge Power Quality Analyzer & Recorder The ezPAC™ is the most advanced power quality analyzer and recorder on the market. The instrument is a product of SATEC's 25 years of experience in the creation of power quality instruments. The ezPAC™ is designed to fully comply with the most demanding industry standard, IEC 61000-430 Class A. It provides power quality reports and statistics according to EN50160, complimented by comprehensive power quality event/data log with waveforms available for detailed Power Quality event analysis. Redundant power supply allows full readiness for any power...

The ezPAC™ provides state-of-the-art fast transient recording capability. Transient pulses as short as 78ps at 50Hz (65ps at 60Hz) can be reliably recorded and analyzed. The ezPAC™ can record such short pulses by a separate electronic channel with a sampling rate of 256 samples/ cycle. The instrument can measure transient pulses with an amplitude of up to 2 kV (withstands up to 6 kV) and waveforms recording. eXpertpower™POWER QUALITY log The ezPAC™ SA300 is supported by eXpertpower™, SATEC's web-based energy management service. eXpertpower™ collects, archives, and analyzes energy and Power Quality...

HMI Remote Display Modules The ezPAC™ SA300 series offers you a choice of three The ezPAC™ display modules have a fast RS485 port and display options: the new color TFT Touch Panel LCD communicate with the SA300 series through the Modbus graphical display for local monitoring and setup, a RTU protocol. Remote displays can be located at distances multi-parameter LED display or a standard LED display. of up to 1.2 km from the device. Dual panel mounting: Round 4”; Square 96x96 DIN. RDM—LED Remote Consoles Both modules have digital six-digit windows with bright LEDs well suited for direct sunlight...

Fast Data Logging Recorder ° From V2 cycle RMS to 2-hour envelopes □ Programmable post fault on any internal and/or external trigger condition Waveform Capture □ Provides simultaneous capture for all voltage and current channels with choice of samples rate, up to 256 with transient option. Selectable pre-fault / post-fault recording length. Disturbance capture recording up to several minutes □ Transient capture (>78ps) Harmonic Analyzer □ Total Harmonic Distortion for Voltage and Current and up to the 63rd individual harmonic for V, I, P, Q □ Including directional power harmonics (Load or Source) □...

Input Ratings 3 Voltage Inputs: VI, V2, V3, VN □ Direct input and input via PT up to 828V AC line-to-line, up to 480V AC line-to-neutral □ Burden for 400V: <0.35 VA □ Burden for 120V: <0.03 VA □ Overvoltage withstand: 1000V AC continuous, 2500V AC for 1 sec. ° Galvanic isolation: 3500V AC / 1 min. □ Impulse dielectic withstand 6kV Auxiliary Voltage Inputs: V4, V4N □ Direct input and input via PT up to 480V AC □ Burden for 400V: <0.35 VA □ Burden for 120V: <0.03 VA □ Overvoltage withstand: 1000V AC continuous, 2500V AC for 1 sec. □ Galvanic isolation: 3500V AC / 1 min. □ Impulse dielectic withstand...

Parameter Voltage V1-V4 Fault current I1- I4 Full Scale@ Input Range Accuracy Range 120V x PT ratio @ 120V 400V x PT ratio @ 690V DC Voltage Active power Reactive power Apparent power Power factor Frequency Total Harmonic Distortion, THD V(I), %Vf (%If) Total Demand Distortion, TDD, % Active Energy Import & Export Reactive Energy Import & Export Apparent Energy Volt-Hours 0.002 |PF| < 0.9 and © 0.002 0.002 |PF| > 0.5 and © 0.002 0.35 |PF| > 0.5, I > 2% FSI I > 10% FSI Class 0.2 ANSI C12.20-1998, Current class 20 Class 0.2s IEC62053-22:2003 Class 0.2 under conditions as per ANSI C12.20-1998 Class...

Plug-In Modules The unique modular design of the ezPAC™ SA300 ensures its adaptation to the changing needs of today and tomorrow, through a selection of numerous plug-in options for multiple customer applications. DIGITAL INPUTS DI16 or DI32 (Total up to 128 DI) Optically isolated dry/wet contact Scan time: 1ms @ 60Hz, 1.25ms @ 50Hz 24/48/125/250V DC FAST ANALOG INPUT 8 Fast AI (Total up to 16 Fast AI) Options: □ 0-50mA □ 0-75mA □ ±10V Sampling at 32 samples/ cycle RELAY OUTPUTS RO8orRO16 (Total up to 64 RO) RO8 □ 6 relays rated at 10A/250V AC, 5A/125V DC (SPST Form A) □ 2 relays rated at 8A/250V...
