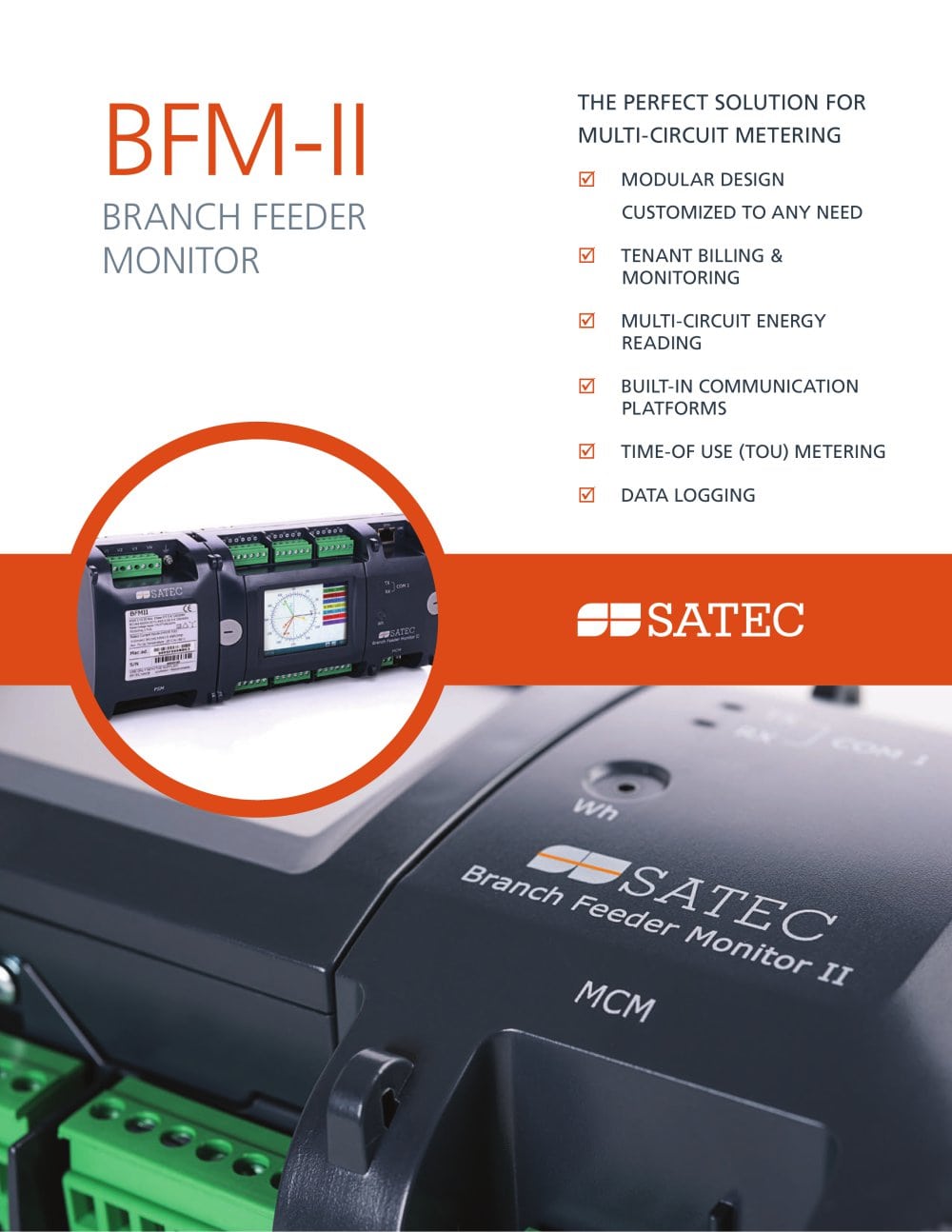

BFM136 Brochure - 1

BFM-II BRANCH FEEDER MONITOR THE PERFECT SOLUTION FOR MULTI-CIRCUIT METERING  MODULAR DESIGN CUSTOMIZED TO ANY NEED  TENANT BILLING & MONITORING  MULTI-CIRCUIT ENERGY READING  BUILT-IN COMMUNICATION PLATFORMS

Open the catalog to page 1
BFM136 Brochure - 2

BFM-II Branch Feeder Monitor 6 channel expansion module Voltage connection (common): 3 or 4 wire self-powered according to revenue meter requirement 18 channel expansion module Modular enclosure SATEC’s BFM-II is the second generation of Branch Feeder The BFM-II supports power quality monitoring to identify Monitor™, providing energy management for multi-point power existing and potential operation problems, such as overloading solutions. Ideal for both new and retrofit projects, the BFM-II or malfunctioning due to voltage or current harmonics, or automatically provides metering, demand and...

Open the catalog to page 2
BFM136 Brochure - 3

18 channels module configurable as 18 singlephase or 6 three-phase Optional cellular modem & 2nd COM port Standard Ethernet port 4 analog inputs (option) 18 digital inputs (option) Wall or DIN rail mounting Optional graphic color touch screen

Open the catalog to page 3
BFM136 Brochure - 4

□ Multi-channel submetering - up to 54 single-phase, 27 two-phase or 18 three-phase meters in a single device. Any combination of single-, two-, and three-phase consumers can be chosen up to a total of 54 current inputs. □ Automatic totalization energy from different consumers □ Modular design allows selection of 18, 24, 30, 36, 42 or 54 submeters □ Supports high accuracy current transformers with Class 0.5S accuracy □ 3-phase/2-phase/single-phase meters (true RMS, volts, amps, power, power factor, neutral current) □ Ampere/Volt demand meter □ Time-of-Use, 8 energy/demand registers x 8...

Open the catalog to page 4
BFM136 Brochure - 5

Accuracy: Solid Core: 0.1% / Split Core: 0.5% The BFM-II should be ordered with dedicated High Accuracy Current Sensors (HACS). All HACS are supplied with 8ft / 2.5m cable. Maximum cable length: 650ft / 200m. All HACS have a built-in automatic protection circuit for maximum safety, eliminating the need to use shorting bars. P/N RATING CORE OPENING * Note: CS05S is compatible with the RS5 version only. All other HACS are compatible with the non-RS5 version.

Open the catalog to page 5
BFM136 Brochure - 6

Large and medium facilities, such as commercial buildings, residential complexes, shopping centers, malls, data centers and universities are facing more and more competitive environment in which tenants are seeking for more services in lower costs. Tenant billing and monitoring is a great solution to increase revenues with a permanent revenue stream to the facility owner while providing better service to tenants. VALUE PROPOSITION Instead of tenants purchasing electricity from the utility, they purchase it from the facility owner (or energy trader), who purchases the electricity from the...

Open the catalog to page 6
BFM136 Brochure - 7

No change in cost. The charges by the facility owner are the same, or lower, than the utilities'. This means tenants can't lose. Bills according to consumption. Compared to facilities that charge based on floor area, monitoring is accurate and exactly reflects the real consumption, without any estimation or crosscharges between tenants. Accuracy. SATEC energy monitors are more accurate than utility meters. The periodic energy balancing ensures correct measurement at all times. Monitoring of energy expenses. Real time energy monitoring allows energy saving, reducing energy costs and...

Open the catalog to page 7
BFM136 Brochure - 8

The BFM-II is ideally designed to upgrade existing substations with electro-mechanical relays to provide real-time information and management lacking in these highly reliable devices. Many Distribution substations include conventional electromechanical protection relays with limited or no remote information. Until recently, upgrading such substations was too costly, and time consuming, which prevented upgrade. The introduction of the revolutionary BFM-II makes it simple and low-cost to upgrade, providing very short Return Of Investment (ROI). Implementing the BFM-II allows, without power...

Open the catalog to page 8
BFM136 Brochure - 9

Data Centers Energy consumption of data centers is constantly rising, The practice of monitoring energy is becoming prevalent and following the increase of computing performance. Monitoring modern data centers now include rack level monitoring at the the PUE (Power Usage Effectiveness—Total Facility Energy design stage. The BFM-II monitors up to 54 single-phase loads divided by the IT Equipment Energy) is essential. According to and is ideal for PDU branch circuit monitoring, allowing for the US DoE (Department of Energy), data centers can achieve energy saving and offering high...

Open the catalog to page 9
BFM136 Brochure - 10

ExpertPower™ For automated monitoring, complete billing service, and more advanced analysis options, SATEC offers ExpertPower™, the web-based energy management system. This service provides automatic monitoring, billing and analysis for electric power systems. ExpertPower™ delivers total visibility for entire power systems over the internet, providing alarms, power diagrams, power profiles and demands, events logging, history and graphs. For more information on our service, see SATEC ExpertPower™ brochure. ENERGY MANAGEMENT DASHBOARD ENERGY INTELLIGENCE The summary TOU (Time of Use) page...

Open the catalog to page 10
BFM136 Brochure - 11

Software Integration PAS For remote reading and control, the PAS provides real-time access to data, The BFM-II operates as up to 54 separate BFM-II is supported by SATEC PAS downloading scheduler and automatic modbus slaves for simple integration. software, designed for remote setup export to .mdb files for MS Access, MS and data viewing and analysis. Excel and database integration. BFM-II SETUP ENERGY DAILY PROFILE BFM-II SETUP: CHANNEL ASSIGNMENTS BFM-II SETUP: ENERGY—TOU Third-Party Software Integration In addition to SATEC software solutions is available for the user, including the...

Open the catalog to page 11
BFM136 Brochure - 12

ENERGY MEASUREMENTS (PER SUBMETER) Import/export active energy total Import/export reactive energy total Apparent energy total Active, reactive, apparent energy TOU system (6 tariffs) AVERAGE MEASURED VALUES (per feeder) Neutral current for 3-phase feeders L-N voltage per phase L-L per line Current per phase Voltage & current angles per phase kW per phase kW total per submeter kvar per phase kvar total per submeter Power factor per phase Power factor total per submeter kVA per phase kVA total per submeter Frequency Neutral current for 3-phase submeter PRESENT DEMAND Volts per phase Amperes...

Open the catalog to page 12
