switchboards SYS-24 air insulated 12-24KV
switchboards SYS-24 air insulated 12-24KV

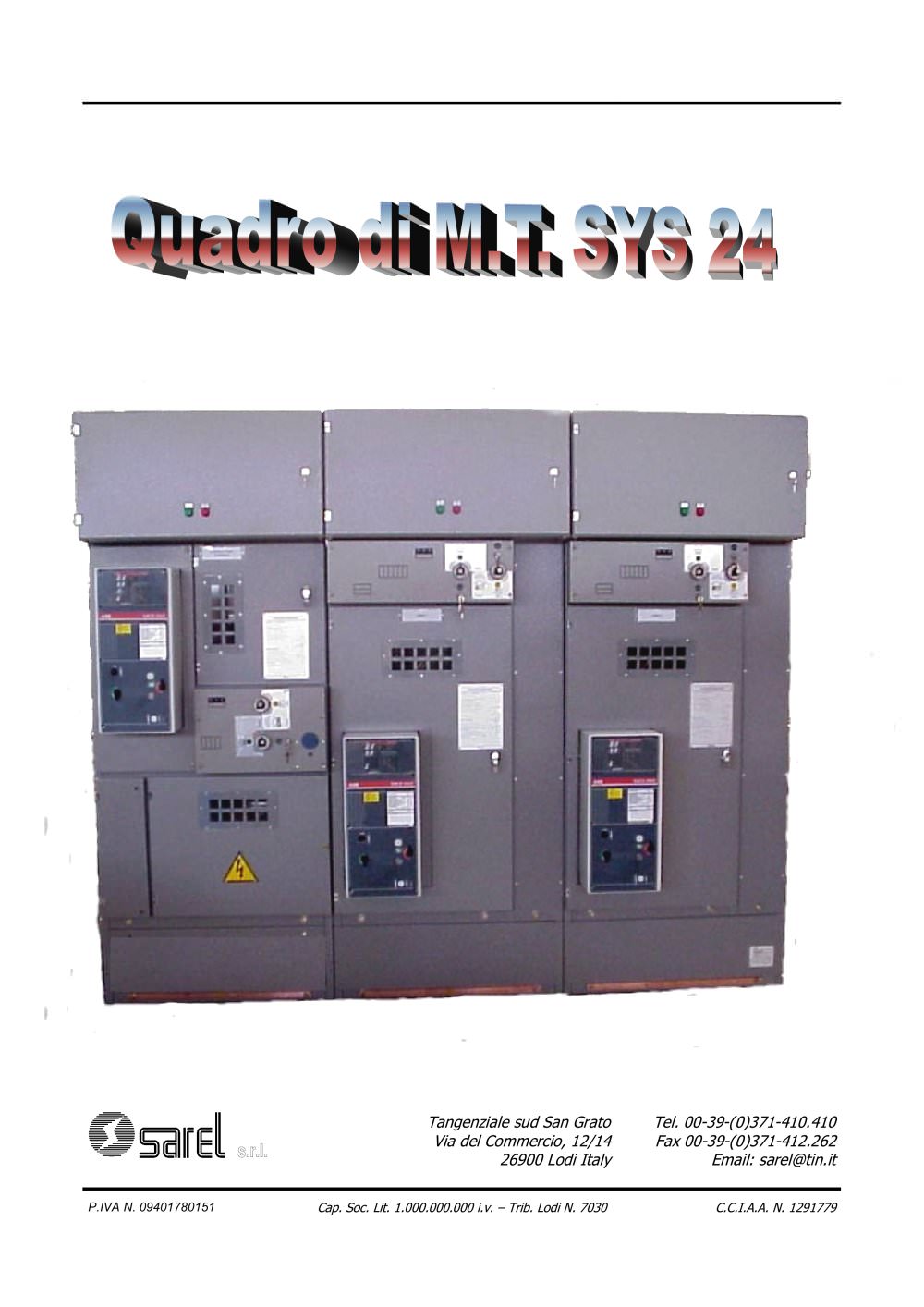

The SYS 24 medium voltage switchboard is designed for electrical systems with a rated voltage up to 24 kV. It includes standard panels with rotary switches (SVR and IMR series) and SF6 circuit breakers, suitable for various distribution systems.
The panels have an external protection degree of IP30 and an internal protection degree of IP20, with higher protection levels available upon request.
Mechanical interlocks ensure operator safety by guiding operational sequences. The rotary switch with IPH2 protection prevents accidental contact with live parts, and grounded switch bushings in the open position prevent current flow, complying with CEI 17-9 and IEC 265 standards.
The SYS 24 switchboard complies with CEI 17-6, Italian D.P.R. n° 547, and IEC 265 and 129 standards.
Transparent windows allow internal inspection while in service, and maintenance is facilitated by easy access with the door open.
Panels have lifting rings for transport and can be installed against a wall with front access. Floor fixing is recommended.
Steel components are treated before painting, with the standard color being RAL 7030. Other colors are available upon request.
The switchboard supports rated voltages of 24 kV, with various current ratings and short-time current capacities.
Optional accessories include instrument compartments, internal lighting, heater resistance, voltage and current transformers, and more, with specific accessories for disconnectors, switch-disconnectors, earth switches, and circuit breakers.
Operating conditions include ambient temperatures between 5°C and 40°C, altitudes below 1000 meters, and relative humidity under 95%.
Specifications for standard panels include dimensions and configurations, categorized by type such as ITD and HAD, with flexibility in design to meet different requirements.
Specifications for transformer boxes include dimensions and maximum transformer power capacity in kVA, with features like front-hinged doors, Arel-type locks, perforated sheet metal roofs, and grounding circuits.
Information on additional components such as instrument boxes and phase distance specifications, highlighting system adaptability to various operational needs.
A table for selecting medium voltage fuses based on operating voltage and transformer power, following DIN 43265 standards.
A disclaimer notes that due to ongoing developments in materials and standards, the information is subject to revision and confirmation by the manufacturer.
Catalog excerpts
P.IVA N. 09401780151 Cap. Soc. Lit. 1.000.000.000 i.v. Trib. Lodi N. 7030 C.C.I.A.A. N. 1291779 >
Open the catalog to page 1
Il quadro di media tensione SYS 24 Ҩ adatto per essere installato in sistemi elettrici con tensione nominale fino a 24 kV. La vasta gamma di scomparti normalizzati , che prevedono limpiego di sezionatori e sezionatori sottocarico del tipo ғrotativo della serie SVR e IMR e di interruttori in SF6 , permette di soddisfare le esigenze relative a qualsiasi schema di distribuzione. M.V. switchboard SYS 24 is suitable to be installed in electrical system with rated voltage up to 24 kV. The wide range of standard panels provided with off-load and on-load ԓrotary switches series SVR and IMR and SF6 circuit...
Open the catalog to page 3
Tutte le apparecchiature di acciaio sono trattate con processo di decappaggio prima della verniciatura La colorazione standard RAL 7030 a polveri epossidiche a forno polimerizzato a 180 C (altri colori su richiesta). All steel sheet are submitted to treatment before painting. Standard colour is RAL 7030 in epoxy powder polymerized oven at 180谰 C (other colours upon request). > Ciascun pannello provvisto di golfari di sollevamento per il trasporto. Il quadro SYS 24 pu essere addossato direttamente a parete in quanto tutte le apparecchiature sono facilmente accessibili dal fronte del pannello stesso....
Open the catalog to page 4
Limiti di temperatura ambientale : > 5 C < 40а C Altitudine rispetto al mare : < 1000 m Umidit relativa : < 95 % Enviromental air temperature : > 5 C < 40ర C Altitude on the sea level : < 1000 m Relative umidity : < 95 % > - Cella strumenti - > I nstrument compartment - Illuminazione interna per le unit con apparecchiature - Internal lighting for feeding compartment - Resistenza anticondensa con termistore - Heater resistence with thermistor - Isolatori con derivatori capacitivi e dispositivo di segnalazione presenza tensione - Capacitive deviders with voltage indication - Voltage and current...
Open the catalog to page 5
Cofano superiore arrivo cavi dallalto > Upper box for incoming cables Canala laterale arrivo cavi dal basso > Side box for cable riser Arrivo semplice in cavo arrivo cavi del basso > Simple incoming cables Arrivo semplice in sbarra arrivo cavi dal basso > Simple incoming bars Risalita semplice in cavo > Simple cable riser Risalita semplice in sbarra > Simple bus riser Arrivo con sezionatore di terra > Incoming panel with earth switch > Arrivo/partenza con sezionatore a vuoto , terre a valle interbloccate > Incoming/outgoing with off-load switch , interlocked lower earth switch > Arrivo/partenza...
Open the catalog to page 6
Protezione trasformatore con sezionatore sottocarico rovesciato , terre a valle interbloccate , terre a monte indipendenti e portafusibili > Transformer protection with reversed on-load switch , interlocked lower earth switch , indipendent upper earth switch and fuse base > Misure con sezionatore a vuoto , terre a valle interbloccate e portafusibili completo di TV Metering panel with off-load switch , interlocked lower earth switch and fuse base complete of VT > Misure con sezionatore a vuoto , terre a valle interbloccate e portafusibili completo di TV e TA > Metering panel witth off-load switch...
Open the catalog to page 7
tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial Black", sans-serif; } .font2 { font:7.00pt "Courier New", monospace; } .font3 { font:4.00pt "Georgia", serif; } .font4 { font:5.00pt "Georgia", serif; } .font5 { font:7.00pt "Georgia", serif; } .font6 { font:17.00pt "Georgia", serif; } .font7 { font:26.00pt "Georgia", serif; } .font8 { font:5.00pt "Palatino Linotype", serif; } .font9 { font:4.00pt "Times New Roman", serif; } .font10 { font:5.00pt "Times New Roman", serif; } .font11 { font:4.00pt "Trebuchet MS", sans-serif;...
Open the catalog to page 8
tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial Black", sans-serif; } .font1 { font:10.00pt "Arial Black", sans-serif; } .font2 { font:4.00pt "Georgia", serif; } .font3 { font:6.00pt "Georgia", serif; } .font4 { font:7.00pt "Georgia", serif; } .font5 { font:8.00pt "Georgia", serif; } .font6 { font:16.00pt "Georgia", serif; } .font7 { font:26.00pt "Georgia", serif; } .font8 { font:6.00pt "Impact", sans-serif; } .font9 { font:7.00pt "Palatino Linotype", serif; } .font10 { font:6.00pt "Trebuchet MS", sans-serif; } .font11 { font:8.00pt "Trebuchet MS", sans-serif; }...
Open the catalog to page 9
tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:26.00pt "Arial", sans-serif; } .font1 { font:4.00pt "Georgia", serif; } .font2 { font:6.00pt "Georgia", serif; } .font3 { font:26.00pt "Georgia", serif; } .font4 { font:39.00pt "Georgia", serif; } .font5 { font:4.00pt "Palatino Linotype", serif; } .font6 { font:5.00pt "Times New Roman", serif; } .font7 { font:6.00pt "Times New Roman", serif; } .font8 { font:4.00pt "Trebuchet MS", sans-serif; } .font9 { font:6.00pt "Trebuchet MS", sans-serif; } .font10 { font:9.00pt "Trebuchet MS", sans-serif; } .font11 { font:14.00pt "Trebuchet...
Open the catalog to page 10
tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial Black", sans-serif; } .font2 { font:10.00pt "Arial Black", sans-serif; } .font3 { font:7.00pt "Courier New", monospace; } .font4 { font:4.00pt "Georgia", serif; } .font5 { font:7.00pt "Georgia", serif; } .font6 { font:10.00pt "Georgia", serif; } .font7 { font:16.00pt "Georgia", serif; } .font8 { font:17.00pt "Georgia", serif; } .font9 { font:26.00pt "Georgia", serif; } .font10 { font:4.00pt "Palatino Linotype", serif; } .font11 { font:4.00pt "Times New Roman", serif; } .font12...
