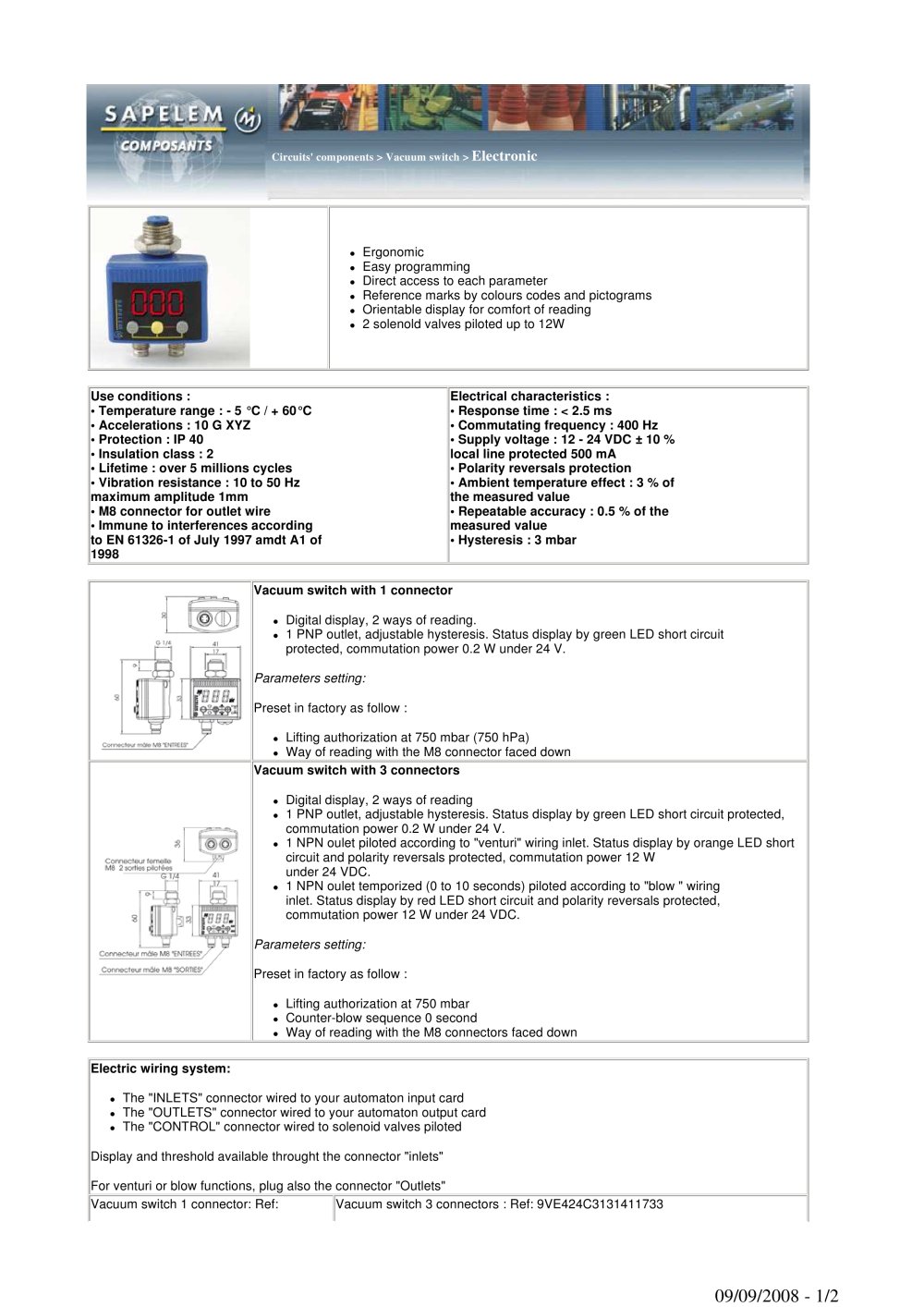

Vacuum switch
1 / 2Pages

Circuits' components > Vacuum switch > Ergonomic Easy programming Direct access to each parameter Reference marks by colours codes and pictograms Orientable display for comfort of reading 2 solenold valves piloted up to 12W Use conditions : Temperature range : - 5 հ C / + 60 C ? Accelerations : 10 G XYZ ? Protection : IP 40 ? Insulation class : 2 ? Lifetime : over 5 millions cycles ? Vibration resistance : 10 to 50 Hz maximum amplitude 1mm ? M8 connector for outlet wire ? Immune to interferences according to EN 61326-1 of July 1997 amdt A1 of 1998 Electrical characteristics : ? Response time : < 2.5 ms ? Commutating frequency : 400 Hz ? Supply voltage : 12 - 24 VDC б 10 % local line protected 500 mA ? Polarity reversals protection ? Ambient temperature effect : 3 % of the measured value ? Repeatable accuracy : 0.5 % of the measured value ? Hysteresis : 3 mbar Vacuum switch with 1 connector Digital display, 2 ways of reading. Preset in factory as follow : 1 PNP outlet, adjustable hysteresis. Status display by green LED short circuit protected, commutation power 0.2 W under 24 V. Parameters setting: Lifting authorization at 750 mbar (750 hPa) Way of reading with the M8 connector faced down Vacuum switch with 3 connectors Digital display, 2 ways of reading 1 PNP outlet, adjustable hysteresis. Status display by green LED short circuit protected, commutation power 0.2 W under 24 V. 1 NPN oulet piloted according to "venturi" wiring inlet. Status display by orange LED short circuit and polarity reversals protected, commutation power 12 W under 24 VDC. Preset in factory as follow : Parameters setting: 1 NPN oulet temporized (0 to 10 seconds) piloted according to "blow " wiring inlet. Status display by red LED short circuit and polarity reversals protected, commutation power 12 W under 24 VDC. Lifting authorization at 750 mbar Counter-blow sequence 0 second Way of reading with the M8 connectors faced down Electric wiring system: The "INLETS" connector wired to your automaton input card The "OUTLETS" connector wired to your automaton output card The "CONTROL" connector wired to solenoid valves piloted Display and threshold available throught the connector "inlets" For venturi or blow functions, plug also the connector "Outlets" Vacuum switch 1 connector: Ref: Vacuum switch 3 connectors : Ref: 9VE424C3131411733 >

9VE424C3131411711 Inlets: Inlets: Outlets: 1.24Vcc 2.No connected 3.Threshold outlet 4.Mass (0V) 1.24Vcc 2.No connected 3.Threshold outlet 4.Mass (0V) 1.24Vcc 2.Venturi inlet 3.Blow inlet 4.Mass (0V) Pilot controlled: 1.24Vcc solenoid valve venturi 2.0 VCC solenoid valve venturi 3.0 VCC solenoid valve blow 4.24 VCC solenoid valve blow The vacuum switch software is programming as follow: Working condition according to Inlets: NC Version or Bistable NO Version Inlets status "Venturi" Outlet "Blow"Outlet "Venturi" Outlet "Blow "Outlet "Venturi" Inlets "Blow " Inlets 0 0 1 "Venturi" Inlets...
