Overview: The document provides technical specifications and details for various types of vacuum pumps, including dry vanes, turbines, and lubricated vanes vacuum pumps. It includes data on suction flow rates, vacuum levels, power requirements, noise levels, and weights for different models.

1. Dry Vanes Vacuum Pumps:

Available in capacities of 4 or 8 m3/h and 10 to 40 m3/h.
Designed to supply a vacuum network with an 80% vacuum for various uses.
Includes a vacuum filter and regulation valve.
Specifications include suction flow rates at 50 Hz and 60 Hz, vacuum levels, power requirements, noise levels, and weights for models such as PVSA02.0004 and PVSA02.0040.

2. Turbines:

High suction cup flow generation under reduced vacuum, suitable for gripping light and porous products.
Includes a vacuum filter and regulation valve.
Models like PVCA020075 and PVCA120225 are detailed with suction flow rates, vacuum levels, power requirements, noise levels, and weights.

3. Lubricated Vanes Vacuum Pumps:

Used for vacuum generation for suction cups on tight products and in vacuum conditioning machines or thermoforming processes.
Includes a vacuum filter and regulation valve.
Models such as PVLA010006 and PVLA040250 are specified with suction flow rates, vacuum levels, power requirements, noise levels, and weights.

Key Components:

F*: Vacuum filter
R*: Vacuum regulation valve
V*: Vacuum connection
S*: Exhaust silencer

Conclusion: The document provides comprehensive technical data for selecting the appropriate vacuum pump model based on specific requirements such as flow rate, power consumption, and noise level.

Catalog excerpts

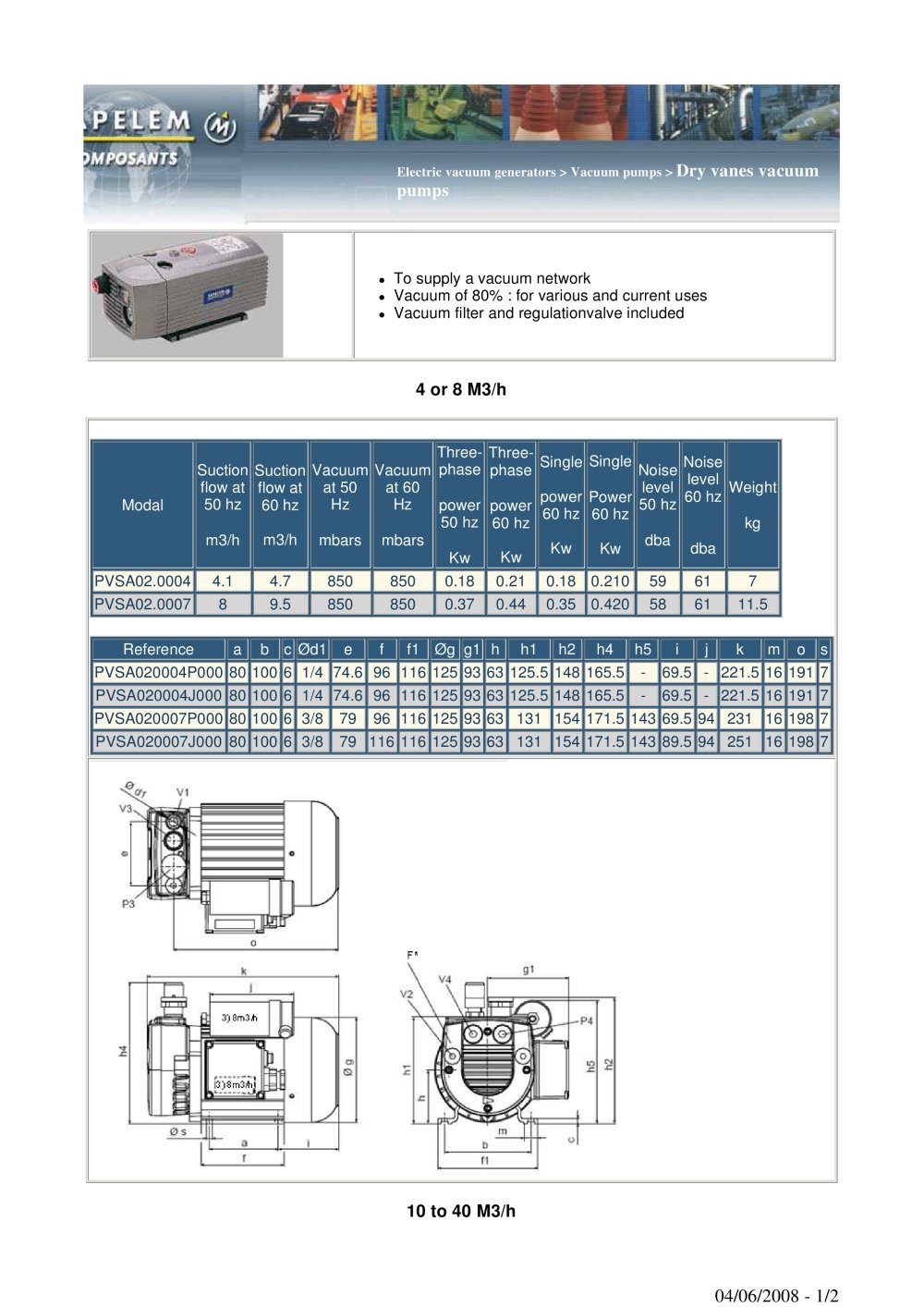

Electric vacuum generators > Vacuum pumps > To supply a vacuum network Vacuum of 80% : for various and current uses Vacuum filter and regulationvalve included >

Open the catalog to page 1

Electric vacuum generators > Vacuum pumps >

Open the catalog to page 3

Electric vacuum generators > Vacuum pumps > Vacuum generation for suction cups on tight products Use on vacuum conditioning machines or thermoforming process Vacuum filter and regulation valve included Suction flow at 50 hz m3/h Suction flow at 60 hz m3/h Vacuum at 50 Hz mbars Vacuum at 60 Hz mbars Three-phase power 50 hz Kw Three-phase power60 hz Kw Singlepower60 hz Kw Single power60 hz Kw Noise level 50 hz dba Noise level 60 hz dba Weightkg Modal PVLA010006 6.5 7.5 997 997 0.25 0.3 0.3 0.36 48 49 14 Suction flow at 50 hz m3/h Suction flow at 60 hz m3/h Vacuum at 50 Hz mbars Vacuum at 60 Hz...

Open the catalog to page 6
