Vacuum filter
1 / 1 PageView full catalog
Vacuum filter
Product catalog summary
Overview: This document provides technical specifications and details for vacuum filters, focusing on their components, particularly the transparent plastic filter feed-through.
Main Features:
- Protection of the vacuum generator.
- Low drop of load, ensuring efficient operation.
- Capability for counter-blow, enhancing filter longevity.
Product Specifications:
- Complete filters and spare cartridges are available.
- Various models are listed with specific references, maximum flow rates, filtration levels, connection sizes, and weights.
Key Specifications Table:
| Reference | Maximum Flow (Nm3/h) | Filtration Level (Microns) | Connection | Weight (g) |
|---|---|---|---|---|
| 9MF001803018 | 2.5 | 30 | 1/4 | 250 |
| 9MF003303014 | 33.0 | 30 | 1/4 | 250 |
| 9MF005103038 | 51.0 | 30 | 3/8 | 250 |
| 9MC005103000 | 51.0 | 30 | - | - |
| 9MF011403012 | 114.0 | 30 | 1/2 | 600 |
Spare Cartridges:
- Reference 9MC011400500 is compatible with filter 9MF011403012 and has a filtration level of 5 microns.
- Reference 9MC011403000 is compatible with filter 9MF011403012 and has a filtration level of 30 microns.
Date of Document: 09/09/2008
See more
Catalog excerpts

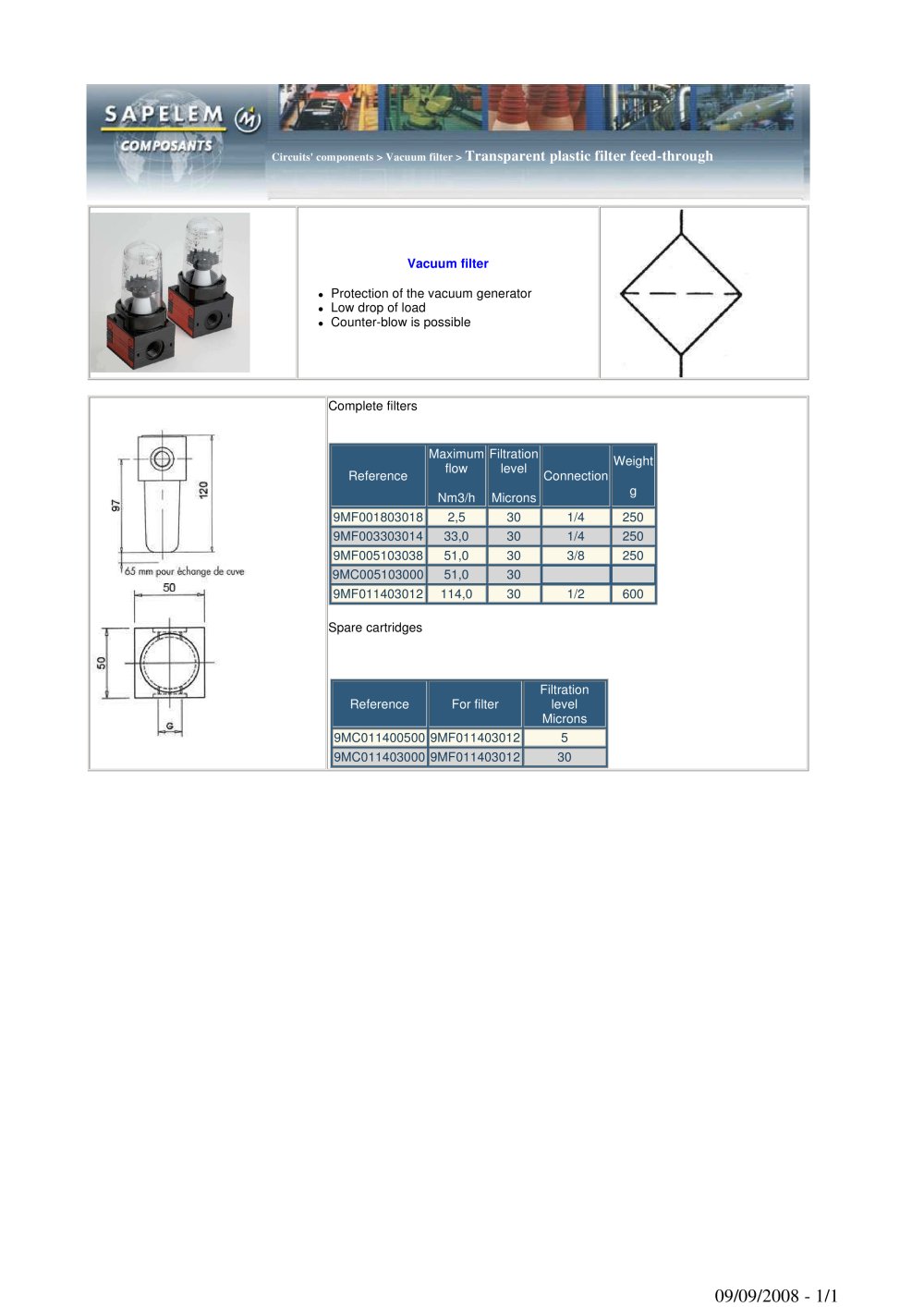

Circuits' components > Vacuum filter > Vacuum filter Protection of the vacuum generator Low drop of load Counter-blow is possible Complete filters Spare cartridges Maximum flow Nm3/h Filtration level Microns Weightg Reference Connection 9MF001803018 2,5 30 1/4 250 9MF003303014 33,0 30 1/4 250 9MF005103038 51,0 30 3/8 250 9MC005103000 51,0 30 9MF011403012 114,0 30 1/2 600 Filtration level Microns Reference For filter 9MC011400500 9MF011403012 5 9MC011403000 9MF011403012 30 >
