Product catalog summary
Overview: The document provides technical specifications for non-rotating spring systems used in grippers. These systems are designed to adjust level differences and maintain the direction of parts. The material used is nickel-plated brass.
Key Features:
- Threaded fitting with snap-connector.
- Non-rotating capability to maintain part orientation.
Specifications:
| Reference | G1 | G | C | A | B | D | E | F | H |
|---|---|---|---|---|---|---|---|---|---|
| 9FT10153130518A | M5 | 1/8 | 15 | 76 | 23 | 6 | M12x100 | 38.5 | 2 |
| 9FT10253130518A | M5 | 1/8 | 25 | 86 | 23 | 6 | M12x100 | 48.5 | 2 |
| 9FT20253131818A | 1/8 | 1/8 | 25 | 113 | 42 | 14 | M18X100 | 50 | 5 |
| 9FT20253131814A | 1/8 | 1/4 | 25 | 112 | 42 | 8 | M18X100 | 49.5 | 5 |
| 9FT20403131818A | 1/8 | 1/8 | 40 | 127 | 42 | 14 | M18X100 | 73 | 5 |
| 9FT20403131814A | 1/8 | 1/8 | 40 | 127 | 42 | 8 | M18X100 | 72.5 | 5 |
| 9FT30403131438A | 1/4 | 3/8 | 40 | 158 | 50 | 14 | M28X150 | 83 | 6 |
| 9FT30403131414A | 1/4 | 1/4 | 40 | 158 | 50 | 14 | M28X150 | 83 | 6 |
| 9FT30603131438A | 1/4 | 3/8 | 60 | 178 | 50 | 14 | M28X150 | 103 | 6 |
| 9FT30603131438 | 1/4 | 3/8 | 60 | 178 | 50 | 14 | M28X150 | 103 | 6 |
| 9FT20603131818A | 1/8 | 1/8 | 60 | 147 | 42 | 14 | M18X100 | 93 | 5 |
| 9FT20603131814A | 1/8 | 1/4 | 60 | 147 | 42 | 8 | M18X100 | 84 | 5 |
Additional Specifications:
| Reference | G1 | G | C | A | B | D | E | F | H |
|---|---|---|---|---|---|---|---|---|---|
| 9FT10153150418A | Ø4 | 1/8 | 15 | 91 | 23 | 6 | M12x100 | 38.5 | 2 |
| 9FT10253150418A | Ø4 | 1/8 | 25 | 101 | 23 | 6 | M12x100 | 48.5 | 2 |
| 9FT20253150814A | Ø8 | 1/4 | 25 | 132 | 42 | 14 | M18X100 | 50 | 5 |
| 9FT20403150814A | Ø8 | 1/4 | 40 | 147 | 42 | 14 | M18X100 | 73 | 5 |
| 9FT20253150818A | Ø8 | 1/8 | 40 | 132 | 42 | 10 | M18X100 | 49.5 | 5 |
| 9FT30403150814A | Ø8 | 1/4 | 40 | 174 | 50 | 14 | M28X150 | 83 | 6 |
| 9FT20603150814A | Ø8 | 1/4 | 60 | 168 | 42 | 14 | M18X100 | 93 | 5 |
| 9FT20603150818A | Ø8 | 1/8 | 60 | 168 | 42 | 10 | M18X100 | 84 | 5 |
Date: 09/09/2008
See more
Catalog excerpts

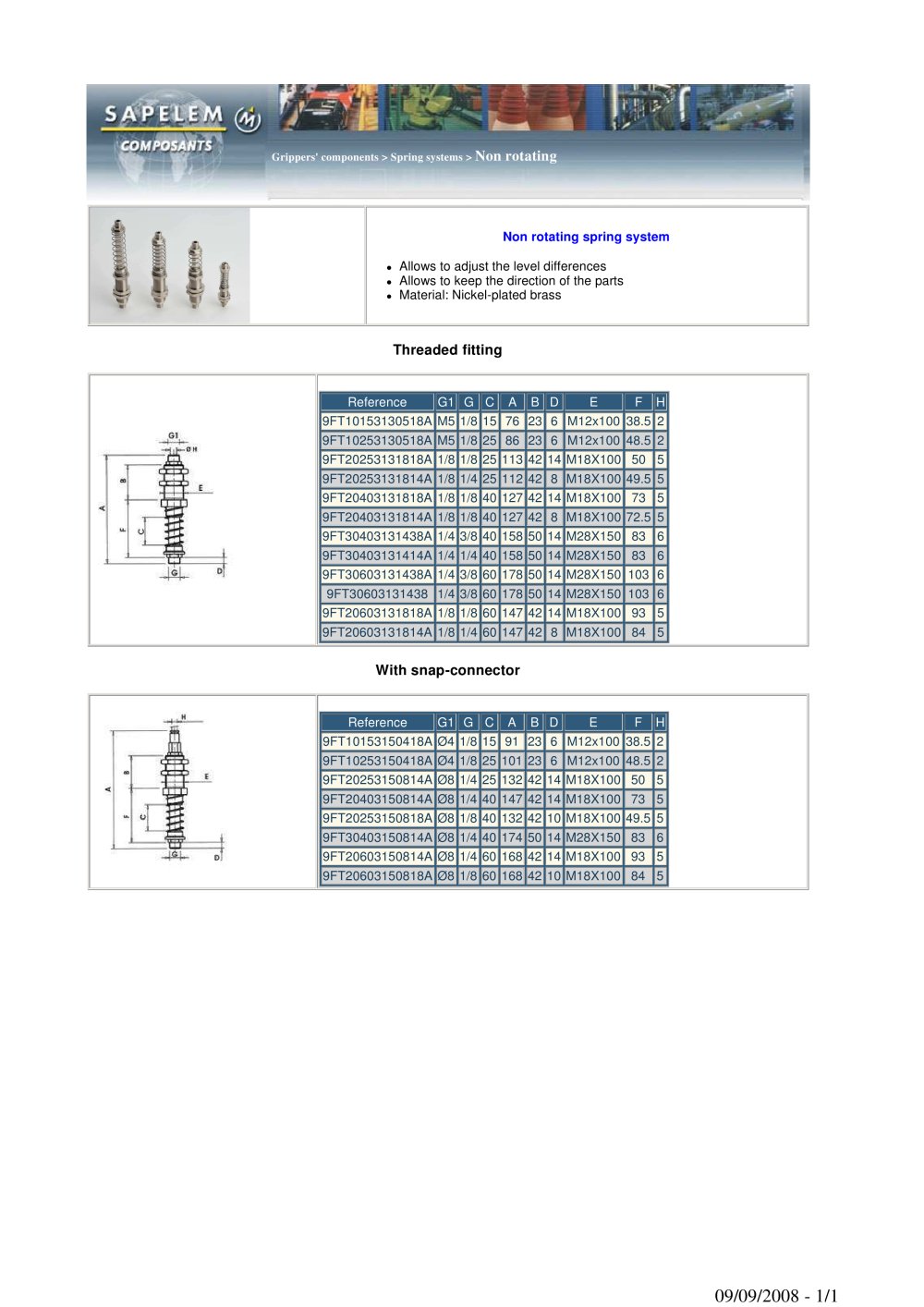

Grippers' components > Spring systems > Non rotating spring system Allows to adjust the level differences Allows to keep the direction of the parts Material: Nickel-plated brass >
