Overview: This document provides technical specifications and characteristics of the Polylobed series 81P oblong suction cups used in robotics. It includes details on both the without bellow series 81L and with bellow series 81S.

Without Bellow Series 81L:

Features best flexibility and rigid holding.
Includes a stop for part positioning and high flexibility of approach.
Suitable for parts that need to be turned upside down.
Available in two sizes: 88 and 107 mm in length.
Weight Load Limit (WLL) for Nitrile: 3.00 kg for 88 mm, 3.50 kg for 107 mm.
References include options with and without feeler.

With Bellow Series 81S:

Designed for high production rates and handling parts that need to be turned upside down.
Available in sizes 50 and 65 mm in length.
WLL for Nitrile: 3.40 kg for both sizes; for Silicone: 2.70 kg for 50 mm, 4.40 kg for 65 mm.
References provided for both Nitrile and Silicone materials.

Additional Specifications:

Adaptor M10/1/4 available for both series.
Flexibility of approach is emphasized for handling long, narrow, and cylindrical products.
Detailed dimensions and weight specifications are provided for each size and material type.

Catalog excerpts

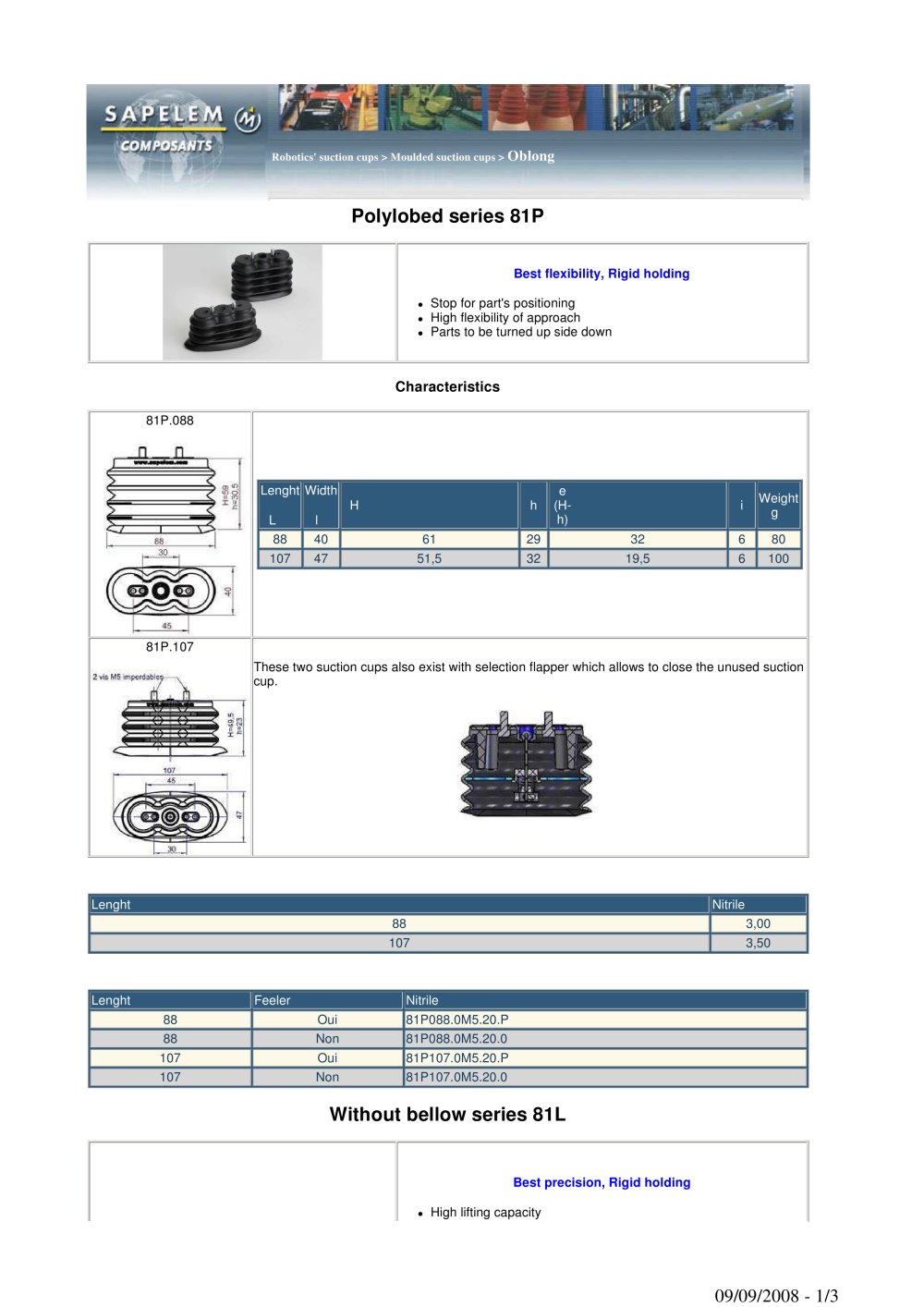

Robotics' suction cups > Moulded suction cups > Best flexibility, Rigid holding Stop for part's positioning High flexibility of approach Parts to be turned up side down > 81P.088 LenghtL Widthl e (H-h) H h i Weight g 88 40 61 29 32 6 80 107 47 51,5 32 19,5 6 100 81P.107 These two suction cups also exist with selection flapper which allows to close the unused suction cup. WLL in kg Lenght Nitrile 88 3,00 107 3,50 References Lenght Feeler Nitrile 88 Oui 81P088.0M5.20.P 88 Non 81P088.0M5.20.0 107 Oui 81P107.0M5.20.P 107 Non 81P107.0M5.20.0 > Best precision, Rigid holding High lifting capacity >

Open the catalog to page 1

High production rate Parts to be turned up side down > Flexibility of approach Long and narrow products' handling Flexibility Cylindrical products' handling >

Open the catalog to page 2
