Modular ejector

Modular ejector

Product catalog summary

Overview: The document provides detailed specifications and configurations for the SMX series of pneumatic vacuum generators. It outlines the standard and optional equipment available for different models, as well as performance metrics such as vacuum levels, suction flow, and consumption flow.

Specifications:

Standard Equipment (S): Includes vacuum generation, on-off pilot, automatic blow, silencer, and self-regulation.
Optional Equipment (O): Piloted blow, nonreturn valve, electronic vacuum switch, second silencer, M8/M12 wires, and sparkproof carter.

Performance Metrics:

Models are categorized by vacuum levels of 40%, 55%, and 90%.
Each model has specific suction and consumption flow rates, measured in Nl/min.
For example, the SMX9L model achieves a 90% vacuum level with a suction flow of 200.0 Nl/min and a consumption flow of 317.0 Nl/min.

Model Configurations:

SMX.e: Vacuum generator alone.
SMX.r: Includes automatic blow.
SMX.d: Distributor with electric control, available with or without a vacuum switch.
SMX.p: Distributor with pneumatic control, featuring on-off and blow functions.
SMX.dr: Electric distributor with automatic blow.
SMX.pr: Pneumatic distributor with automatic blow.
SMX.a: Self-regulated air saving model.

Model References:

Each model has a unique reference code, with variations for configurations with or without a vacuum switch.
For instance, the SMX9L model without a vacuum switch is referenced as SMX9L00000, while with a vacuum switch, it is SMX9L00C10.

Performance Options:

Models are available with different valve configurations, including on-off NC (normally closed), on-off NO (normally open), and bistable options.
Performance is specified for each configuration, with reference codes provided for ordering.

Catalog excerpts

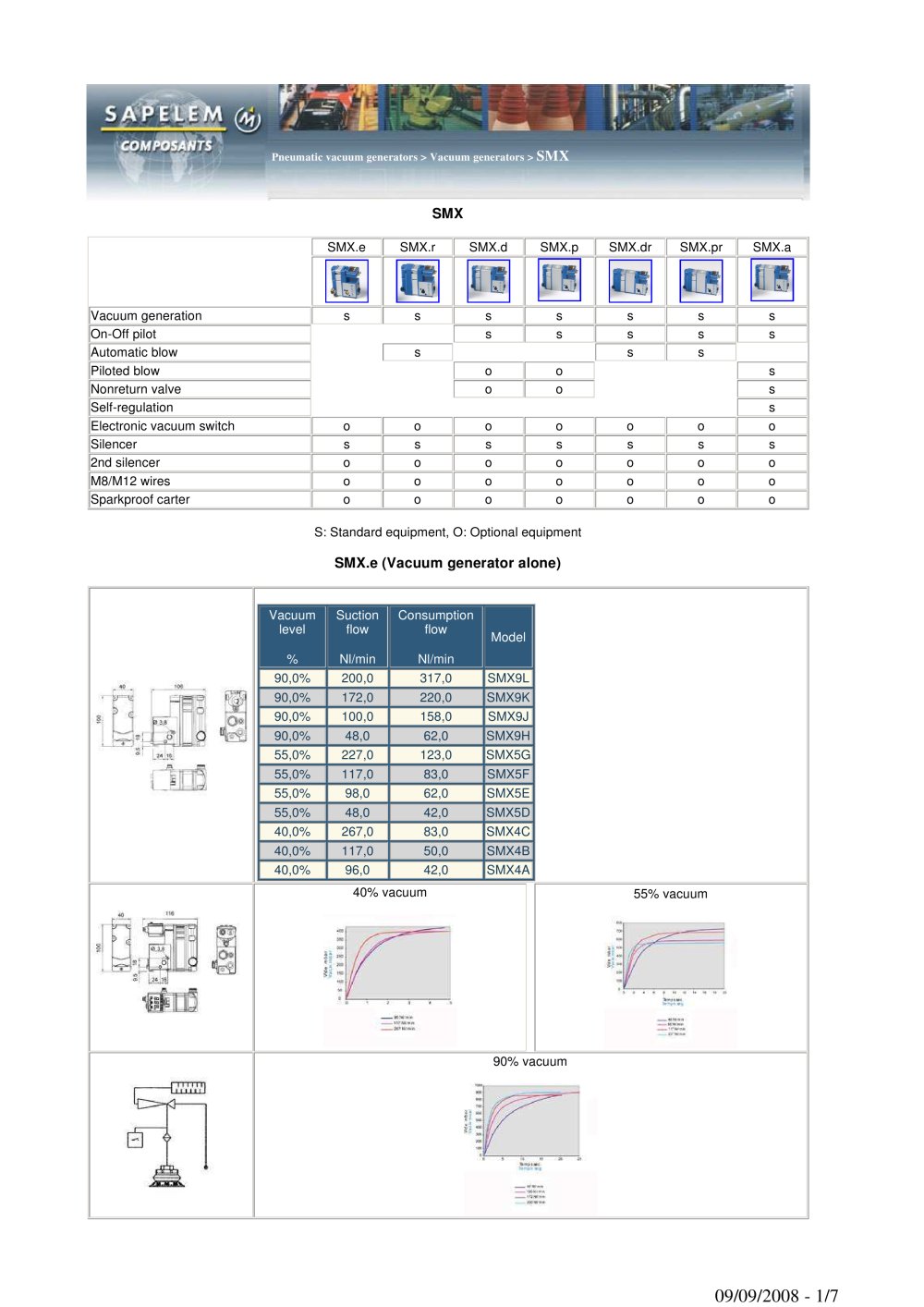

Pneumatic vacuum generators > Vacuum generators > SMX.e SMX.r SMX.d SMX.p SMX.dr SMX.pr SMX.a Vacuum generation s s s s s s s On-Off pilot s s s s s Automatic blow s s s Piloted blow o o s Nonreturn valve o o s Self-regulation s Electronic vacuum switch o o o o o o o Silencer s s s s s s s 2nd silencer o o o o o o o M8/M12 wires o o o o o o o Sparkproof carter o o o o o o o S: Standard equipment, O: Optional equipment >

Open the catalog to page 1

90% vacuum SMX.d with 2 On-Off solenoid valves + Blow Performance Valve On-Off NC On -Off NO SMX9H Oui SMX9HGAC40 SMX9HHAC50 SMX9J Oui SMX9JGAC40 SMX9JHAC50 SMX9K Oui SMX9KGAC40 SMX9KHAC50 SMX9L Oui SMX9LGAC40 SMX9LHAC50 >

Open the catalog to page 7
