Inflatable fingers

Product catalog summary

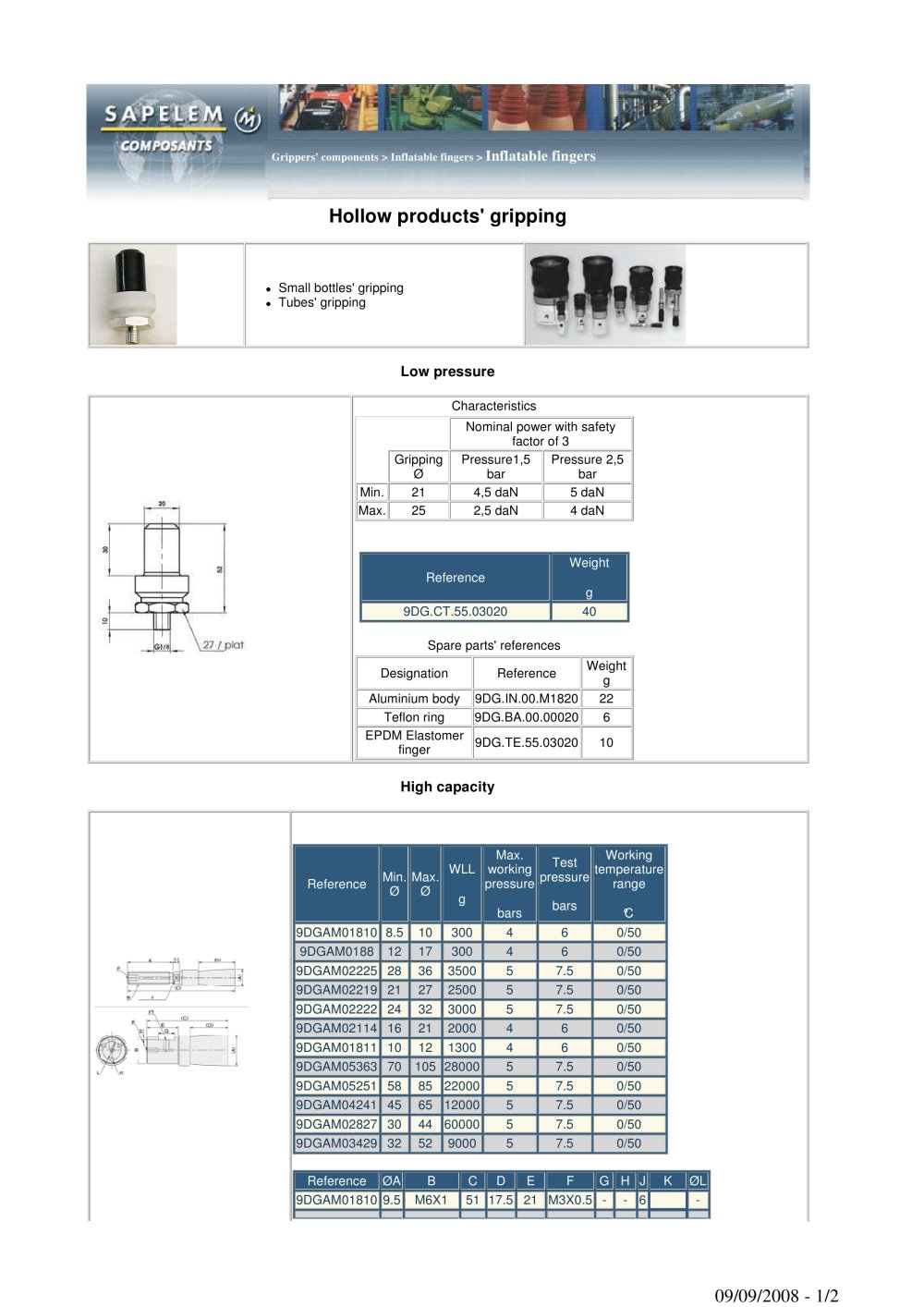

Overview: The document provides technical specifications and details for inflatable fingers used in grippers, focusing on their application in gripping hollow products such as small bottles and tubes. It includes information on pressure capacities, spare parts, and specific references for different models.

Specifications:

Pressure Capacities: The inflatable fingers operate at low pressure with high capacity, suitable for gripping small bottles and tubes.
Nominal Power: The nominal power is calculated with a safety factor of 3.
Gripping Diameter and Pressure: Minimum gripping diameter is 21 mm with pressures of 1.5 bar (4.5 daN) and 2.5 bar (5 daN). Maximum gripping diameter is 25 mm with pressures of 1.5 bar (2.5 daN) and 2.5 bar (4 daN).

Spare Parts:

References and Weights: The document lists spare parts with their references and weights, including an aluminium body (22 g), Teflon ring (6 g), and EPDM elastomer finger (10 g).

Product References and Specifications:

Various models are listed with their minimum and maximum diameters, working load limits (WLL), maximum working pressures, test pressures, and working temperature ranges (0 to 50°C).
Specific references include dimensions and thread specifications for each model.

Applications:

Gripping of external products, rods, and bottles by the neck is highlighted, with specific references for each application.
