Individual Ejectors
1 / 6 PagesView full catalog
Individual Ejectors
Product catalog summary
Overview: This document provides technical specifications for pneumatic vacuum generators, specifically focusing on ejecto-connectors and single ejectors. It includes details on various models, their configurations, and performance metrics.
1. Ejecto-Connectors:
- Types: Short body and long body options, with or without vacuum gripping and blow features.
- Key Features: Independent vacuum for each suction cup, quick installation, air-saving, and fast response time.
- Specifications: Includes nozzle diameter, suction flow, consumption flow, maximum vacuum, noise level, and weight for each model.
2. Single Ejectors:
- Configurations: Male threaded spindle, orientable elbow, and a wide choice of connectors for modularity.
- Key Features: Independent vacuum generation, modularity, and easy fitting with snap connectors.
- Specifications: Details include nozzle diameter, suction flow, consumption flow, maximum vacuum, noise level, and weight.
3. Performance Metrics:
- Nozzle Diameter: Ranges from 0.45 mm to 1.6 mm.
- Suction Flow: Varies from 7.2 Nl/min to 115 Nl/min depending on the model.
- Consumption Flow: Ranges from 9.0 Nl/min to 150 Nl/min.
- Maximum Vacuum: Typically around 760 to 810 mBars.
- Noise Level: Between 55 dBA to 85 dBA.
- Weight: Varies from 10 g to 162 g.
4. Additional Features:
- Silencers: Options include standard, incolmatable, and non-silenced versions.
- Modularity: Various connectors and spindle options for customization.
Conclusion: The document provides comprehensive technical details for selecting and configuring pneumatic vacuum generators suitable for different industrial applications, emphasizing modularity, efficiency, and ease of installation.
See more
Catalog excerpts
Pneumatic vacuum generators > Vacuum generators >

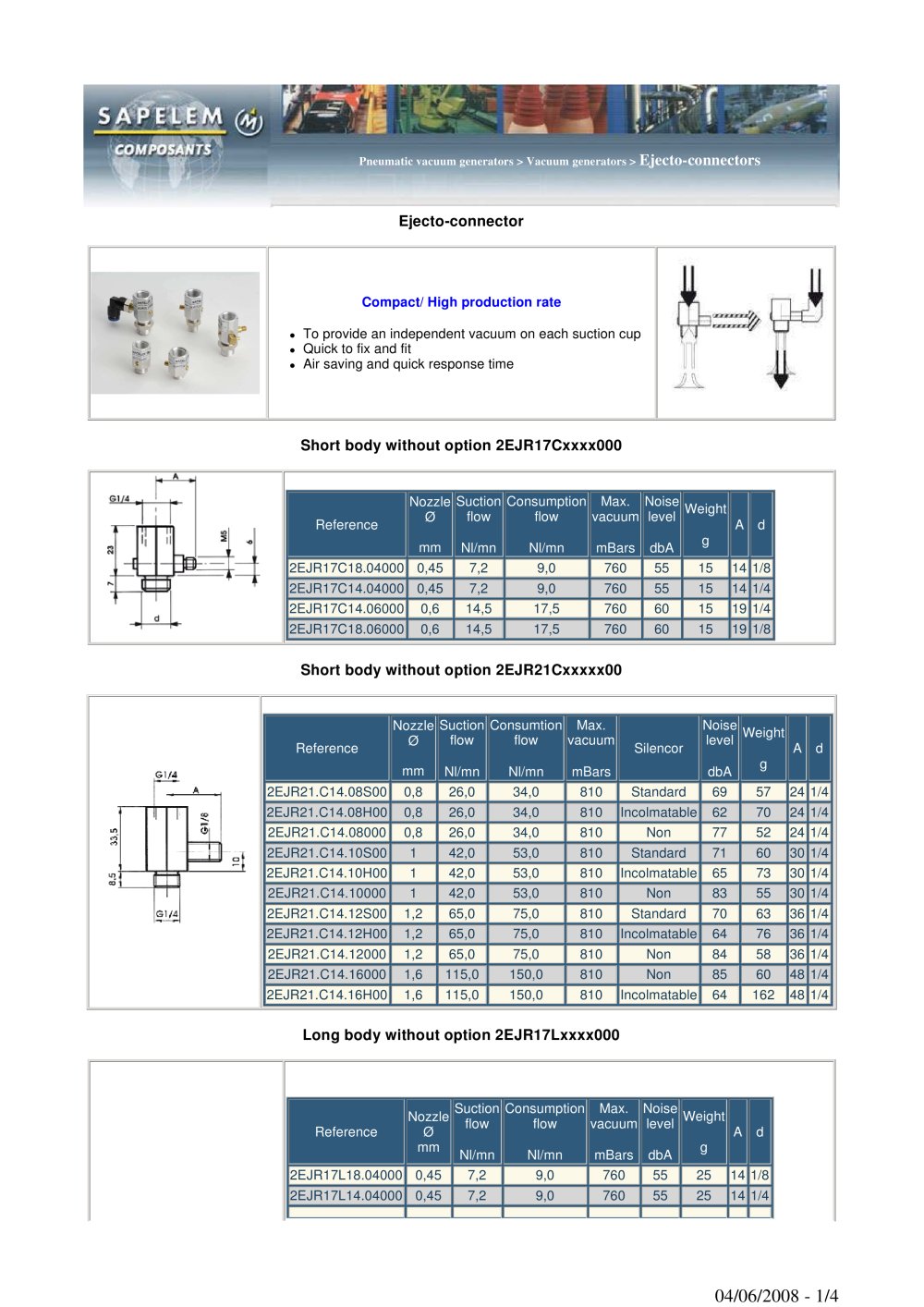

Open the catalog to page 1
Pneumatic vacuum generators > Vacuum generators > Compact/ Wide choice of connectors Independent vacuum generation for each suction cup Modularity thanks tothe choice of many vacuum connectors Easy to fit thanks to the snap connectors >
