BIB Memory Burn-in Test System SMG2-600-CB-W
BIB Memory Burn-in Test System SMG2-600-CB-W
- Temperature Range: -10°C to +150°C with a fluctuation of ±0.5°C at steady state.
- Temperature Deviation: ±2°C based on average sensor readings.
- Temperature Uniformity: ≤±1.5°C unpowered, ≤±3.0°C powered within -10°C to +130°C range.
- Heat-Up and Pull-Down Times: Various times specified for different temperature ranges, e.g., +25°C to +100°C in ≤30 min.
- Stabilization Time: DUT surface temperatures stabilize within 12 minutes after reaching setpoint.
- Dimensions: Internal: 600 x 1320 x 730 mm; Overall: 4000 x 2500 x 2200 mm.
- Power Requirements: AC 380 V, 50 Hz, with a maximum operating power of 2 × 56 kW.
- Noise Level: ≤72 dB(A) measured at 1.5 m distance.
Catalog excerpts

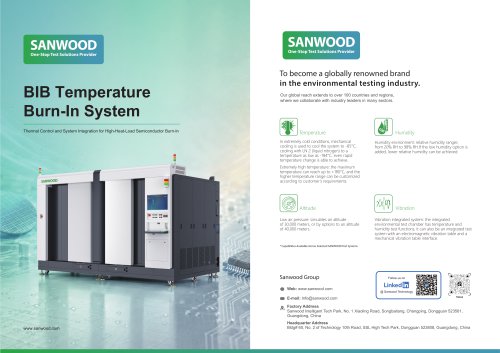

BIB Temperature Burn-In System Thermal Control and System Integration for High-Heat-Load Semiconductor Burn-In To become a globally renowned brand in the environmental testing industry. Our global reach extends to over 100 countries and regions, where we collaborate with industry leaders in many sectors. Temperature In extremely cold conditions, mechanical cooling is used to cool the system to -85°C, cooling with LN 2 (liquid nitrogen) to a temperature as low as -184°C, even rapid temperature change is able to achieve. Humidity Humidity environment: relative humidity ranges from 20% RH to 98% RH.If the low humidity option is added, lower relative humidity can be achieved. Extremely high temperature: the maximum temperature can reach up to +180°C, and the higher temperature range can be customized according to customer’s requirements. Altitude Low air pressure: simulates an altitude of 30,000 meters, or by options to an altitude of 40,000 meters. Vibration Vibration integrated system: the integrated environmental test chamber has temperature and humidity test functions, it can also be an integrated test system with an electromagnetic vibration table and a mechanical vibration table interface. * Capabilities Available Across Selected SANWOOD Test Systems Sanwood Group Web: www.sanwood.com E-mail: [email protected] @ Sanwood Technology Tiktok Factory Address Sanwood Intelligent Tech Park, No. 1 Xiaoling Road, Songbaitang, Changping, Dongguan 523561, Guangdong, China Headquarter Address Bldg# 60, No. 2 of Technology 10th Road, SSL High Tech Park, Dongguan 523808, Guangdong, Chi
Open the catalog to page 1
System Configuration and Key Components Multi-Protocol Communication Interfaces Specifications Model Temperature Range Temperature Fluctuation ±0.5°C, at steady state with a full, unpowered BIB load Temperature Deviation ±2°C, based on the average temperature deviation at each individual sensor Temperature Uniformity ≤±1.5°C at steady state with a full, unpowered BIB load; applicable range: -10°C to +130°C ≤±3.0°C at steady state with a full, powered BIB load; applicable range: -10°C to +130°C Heat-Up Time +25°C to +100°C: ≤30 min; +100°C to +125°C: ≤20 min; -10°C to +100°C: ≤40 min, with the...
