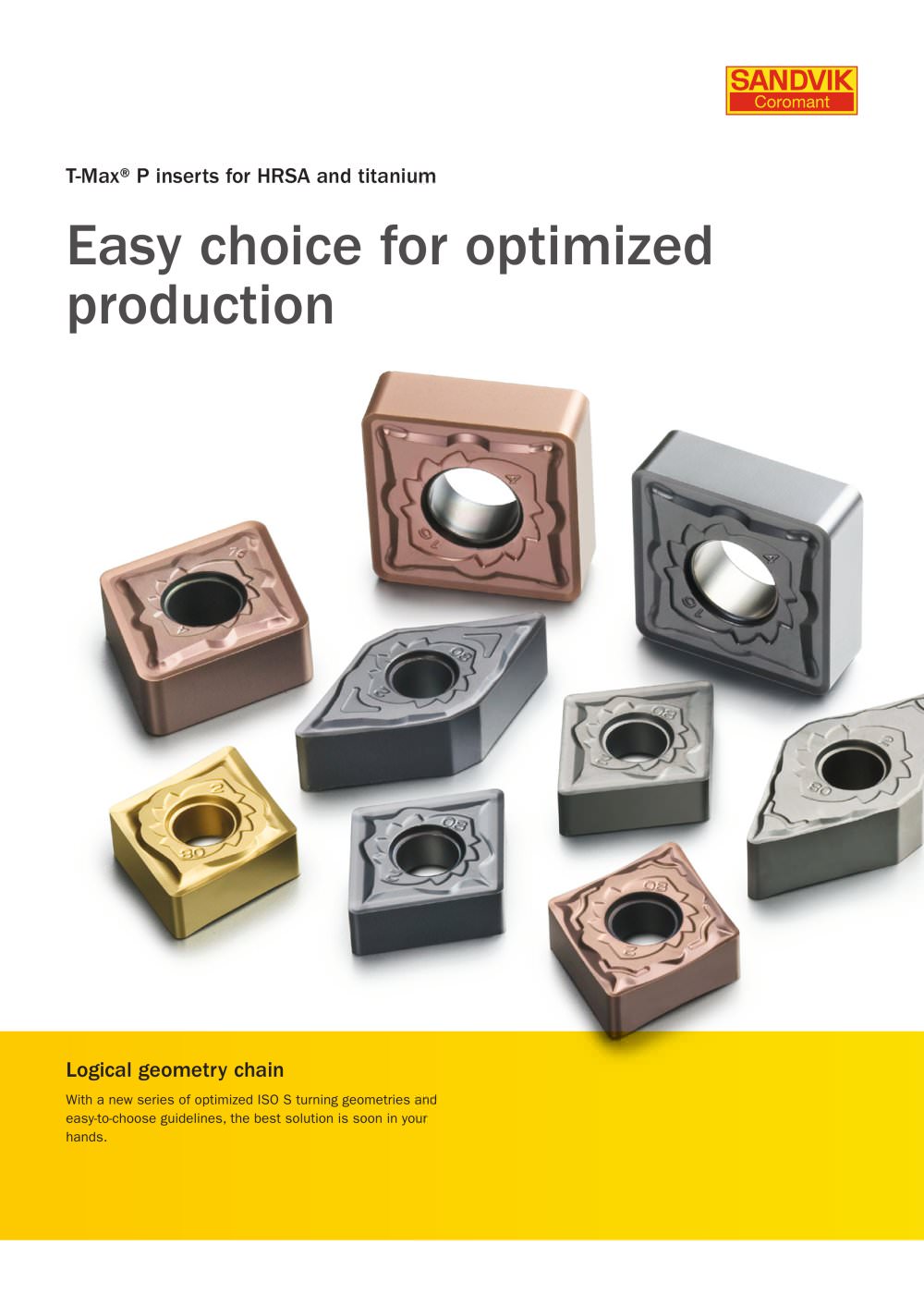

Easy choice for optimized production T-Max® P inserts for HRSA and titanium Logical geometry chain With a new series of optimized ISO S turning geometries and easy-to-choose guidelines, the best solution is soon in your hands.

Open the catalog to page 1

4. 3. 1. 2. Easy to choose insert geometries The new ISO S insert geometries are designed to handle depths of cut from 0.2 to 10 mm (0.008 to 0.393 inch) with excellent chip control and low tool pressure. Inserts: Double-sided T-Max® P inserts Insert styles: S, C, D, T, V, W Nose radii: 0.4 – 1.6 mm Insert grades: GC1105, GC1115, GC1125, S05F, H13A -SMR for secure and reliable production Applications • Medium to light roughing • Continuous, interrupted and demanding cuts • Forged and cast skin Features and benefits • Security • Highest edge line toughness • Chip control • High feed rate...

Open the catalog to page 2

-SGF for highest surface quality demands Applications • Finish to semi-finish turning with highest accuracy and lowest tool pressure Features and benefits • Periphery ground with sharpest edge line • Extreme accuracy • Lowest tool pressure • Chip control • Highest quality surface integrity Finishing with –SGF -SM the perfect geometry for roughing titanium Applications • First choice for titanium alloys • Geometry for light roughing in HRSA • Continuous and interrupted cuts • Large depths of cut • High feed rates Features and benefits • Strong cutting edge • Outstanding performance in...

Open the catalog to page 3

Your local Sandvik Coromant distributor: For more information please check our catalogue supplement, visit www.aero-knowledge.com or www.sandvik.coromant.com Benefits • Optimized production • First rate process security • Fulfills surface quality demands • Low noise level • Low tool pressure Improved performance with new –SMR geometry Component: Fastener Operation: Semi-finish, interrupted cut Workpiece material: Inconel 718 Insert: Competitor/ CNMG120408-SMR 1105 Coolant: Emulsion Cutting data ap mm (inch) 0.9 (0.035) vc m/min (ft/min) 60 (200) fn mm/rev (inch/rev) 0.08 (0.003) Tc sec 48...
