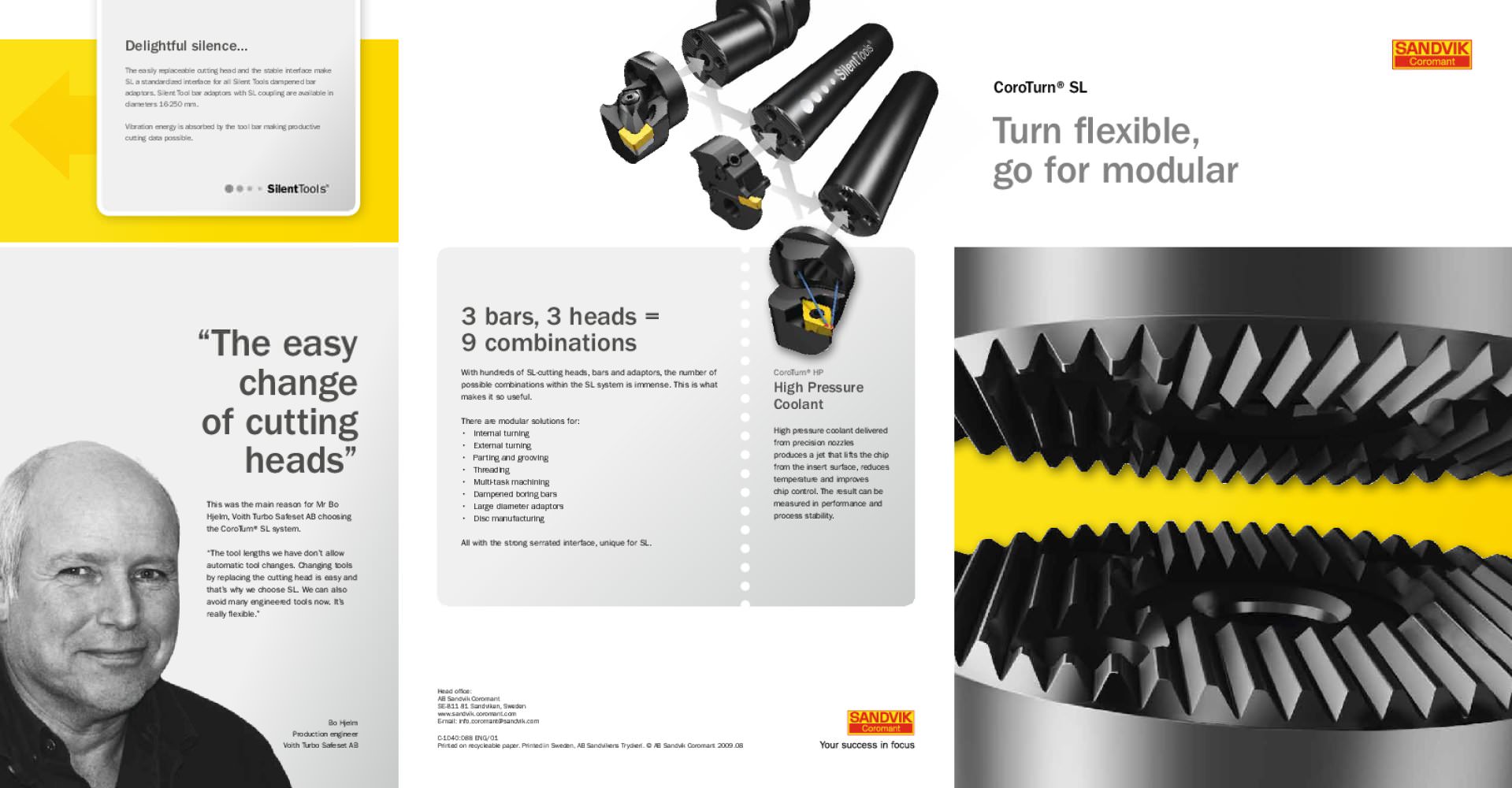

CoroTurn® SL - 1

SilentTools® This was the main reason for Mr Bo Hjelm, Voith Turbo Safeset AB choosing the CoroTurn® SL system. “The tool lengths we have don’t allow automatic tool changes. Changing tools by replacing the cutting head is easy and that’s why we choose SL. We can also avoid many engineered tools now. It’s really flexible.” “The easy change of cutting heads” Bo Hjelm Production engineer Voith Turbo Safeset AB CoroTurn® SL Turn flexible, go for modular Delightful silence... The easily replaceable cutting head and the stable interface make SL a standardized interface for all Silent Tools dampened bar adaptors. Silent Tool bar adaptors with SL coupling are available in diameters 16-250 mm. Vibration energy is absorbed by the tool bar making productive cutting data possible. 3 bars, 3 heads = 9 combinations With hundreds of SL-cutting heads, bars and adaptors, the number of possible combinations within the SL system is immense. This is what makes it so useful. There are modular solutions for: • Internal turning • External turning • Parting and grooving • Threading • Multi-task machining • Dampened boring bars • Large diameter adaptors • Disc manufacturing All with the strong serrated interface, unique for SL. CoroTurn® HP High Pressure Coolant High pressure coolant delivered from precision nozzles produces a jet that lifts the chip from the insert surface, reduces temperature and improves chip control. The result can be measured in performance and process stability. Head office: AB Sandvik Coromant SE-811 81 Sandviken, Sweden www.sandvik.coromant.com E-mail: info.coromant@sandvik.com C-1040:088 ENG/01 Printed on recycleable paper. Printed in Sweden, AB Sandvikens Tryckeri. © AB Sandvik Coromant 2009.08

Open the catalog to page 1
CoroTurn® SL - 2

CoroTurn® SL quick change The SL quick change system is available for boring bars from 80 mm diameter. It makes tool change even more rapid and adds valuable adjustability. Slide the light front end into the coupling and adjust the f1-dimension. • Adjustable • Reduced set-up times • Coolant directed to the cutting edge CoroTurn® SL70 Slid e to ad just! Related SL-products: Reduced inventory is one direct result of using the SL tool system where a tool is the combination of a bar and a cutting head. The combination possibilities are unlimited. The CoroTurn® SL-system covers bars from the...

Open the catalog to page 2
