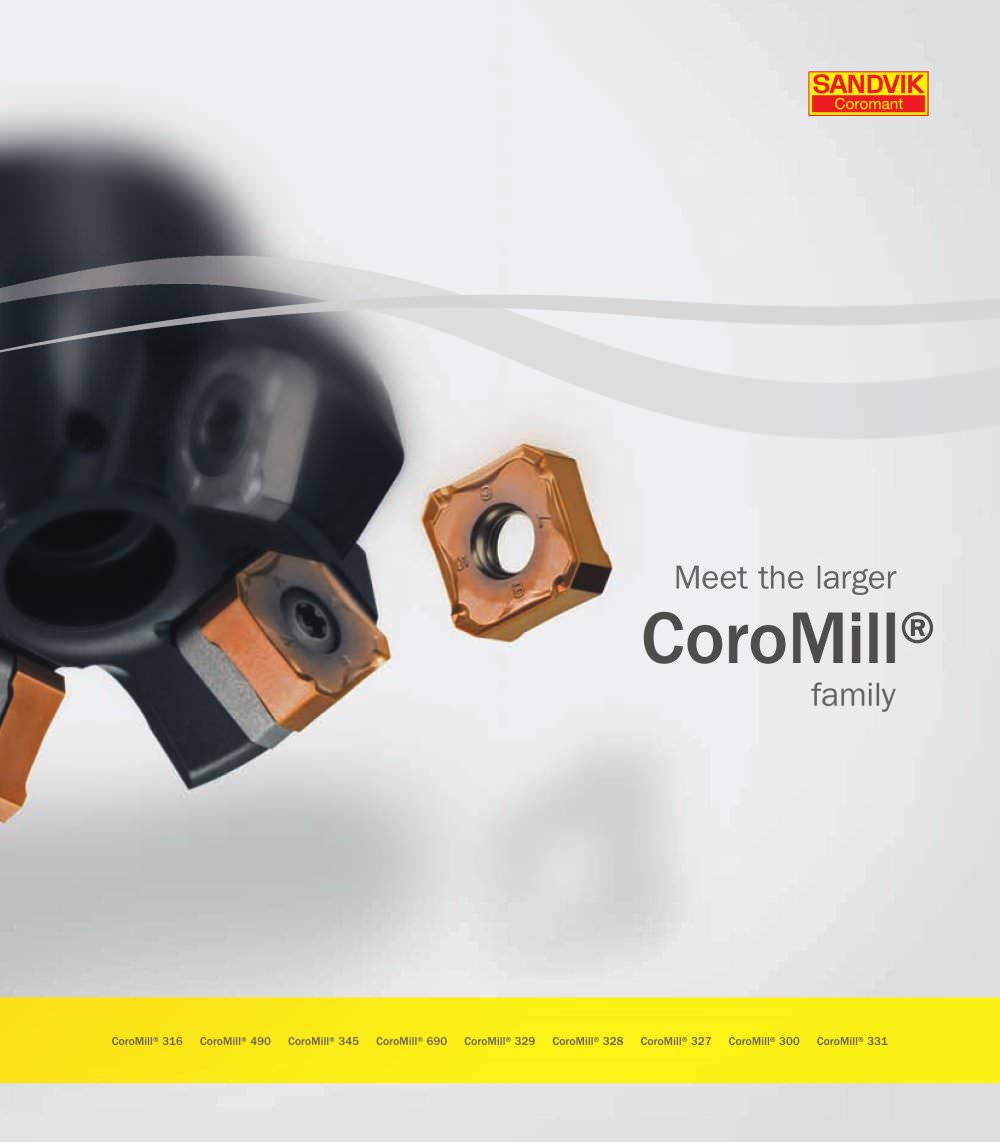

Meet the larger CoroMill® family CoroMill® 316 CoroMill® 490 CoroMill® 345 CoroMill® 690 CoroMill® 329 CoroMill® 328 CoroMill® 327 CoroMill® 300 CoroMill® 331

Open the catalog to page 1

Achieve your goals with the latest milling line-up... CoroMill® 316 CoroMill® 345 CoroMill® 490 The squareshoulder concept The 45º face mill The unique exchangeablehead concept

Open the catalog to page 2

CoroMill® 329 CoroMill® 300 CoroMill® 690 The face and profi le solution The number one for titanium The slot and grooving cutter CoroMill® 327 The groovemilling solution CoroMill® 328 The circlip grooving solution CoroMill® 331 The slot and face milling cutter

Open the catalog to page 3

CoroMill® 690 CoroMill® 690 For 2-D profi ling, contouring and edging titanium. Resists axial forces for continuous machining to drive down costs-per-part. The CoroMill® solution CoroMill delivers a competitive edge for the most technically demanding industries. Take aerospace for example: experience tells us that only the right tooling will do the job, a smart combination of cutters, grades and geometries for your every milling need. That is the CoroMill promise. Side milling (long-edge) COMPONENT: LANDING GEAR BEAM

Open the catalog to page 4

CoroMill® 300 CoroMill® 316 CoroMill® 316 The high performing, exchangeable-head milling system; balances 5-axis capability with productivity in all material groups. CoroMill® 300 For face milling, profi ling and pocketing; round inserts reduce notch wear and allow high feed rates. Effective pocket milling performance Circular interpolation in a hole

Open the catalog to page 5

CoroMill® 490 A choice for every component Milling has evolved. The need to adapt to many operations, shapes and surfaces makes it a diffi cult process to optimize, but we think CoroMill has the answer. Put us to the test, you’ll get more than you thought possible. CoroMill® 490 For deep or shallow square-shoulder milling. Secure 4-edge inserts give the highest precision and exact component surface. Cost-effective edging! OMPONENT: PUMP HOUSE

Open the catalog to page 6

CoroMill® 345 CoroMill® 331 CoroMill® 329 CoroMill® 327 CoroMill® 328 CoroMill® 345 For high feed face milling with soft cutting action. A cost-effi cient solution at small to medium depths of cut. CoroMill® 327 Internal grooving, chamfering and threading in holes over 10 mm dia. 3 - 6 effective cutting edges. CoroMill® 328 General grooving, circlip grooving, threading and chamfering in holes over 39 mm dia. CoroMill® 329 For narrow slots and cutting-off operations. First choice for grooves to 18 mm depth of cut, with secure clamping of CoroCut® inserts. Face milling to mirror finish!...

Open the catalog to page 7

Head offi ce: AB Sandvik Coromant SE-811 81 Sandviken, Sweden www.sandvik.coromant.com E-mail: info.coromant@sandvik.com C-1140:535 ENG/01 © AB Sandvik Coromant 2009.07 Think CoroMill. Secure your future productivity
