Samsung S3C2680

Product catalog summary

Overview
Samsung's Wireless USB solution, based on Ultra Wide Band (UWB) technology, offers seamless wireless data transmission at speeds up to 480 Mbps. This technology is designed to replace traditional wired USB connections with wireless ones, providing convenience and efficiency in various consumer products.

High-Speed Wireless Data Transmission
The solution supports data transmission at 480 Mbps within a 3-meter range and Full HD video transmission within a 5-meter range. It operates within the 3.1GHz to 10.6GHz frequency band.

Ease of Use
The wireless USB capability directly replaces wired USB connections and is backward compatible. It ensures secure connections through data encryption.

Power Efficiency
The chipset utilizes 65nm low power process technology, with a single 1.2V supply, resulting in low power consumption: 565mW peak and 300mW average.

Application Scenarios
The technology can be embedded in SD cards, used as USB dongles, or integrated into motherboards, making it versatile for various devices like digital cameras, smartphones, tablets, and TVs.

Technical Specifications
The S5M8311 features a Zero-IF architecture MB-OFDM UWB RF Transceiver, covering multiple band-groups and supporting all Time Frequency Codes. The S3C2680 includes an ARM926EJ-S processor with various memory and interface options.

Conclusion
Samsung's Wireless USB and WiMedia Chipset Solution provides a high-speed, low-power, and versatile wireless connectivity option, suitable for a wide range of consumer electronics.

Catalog excerpts

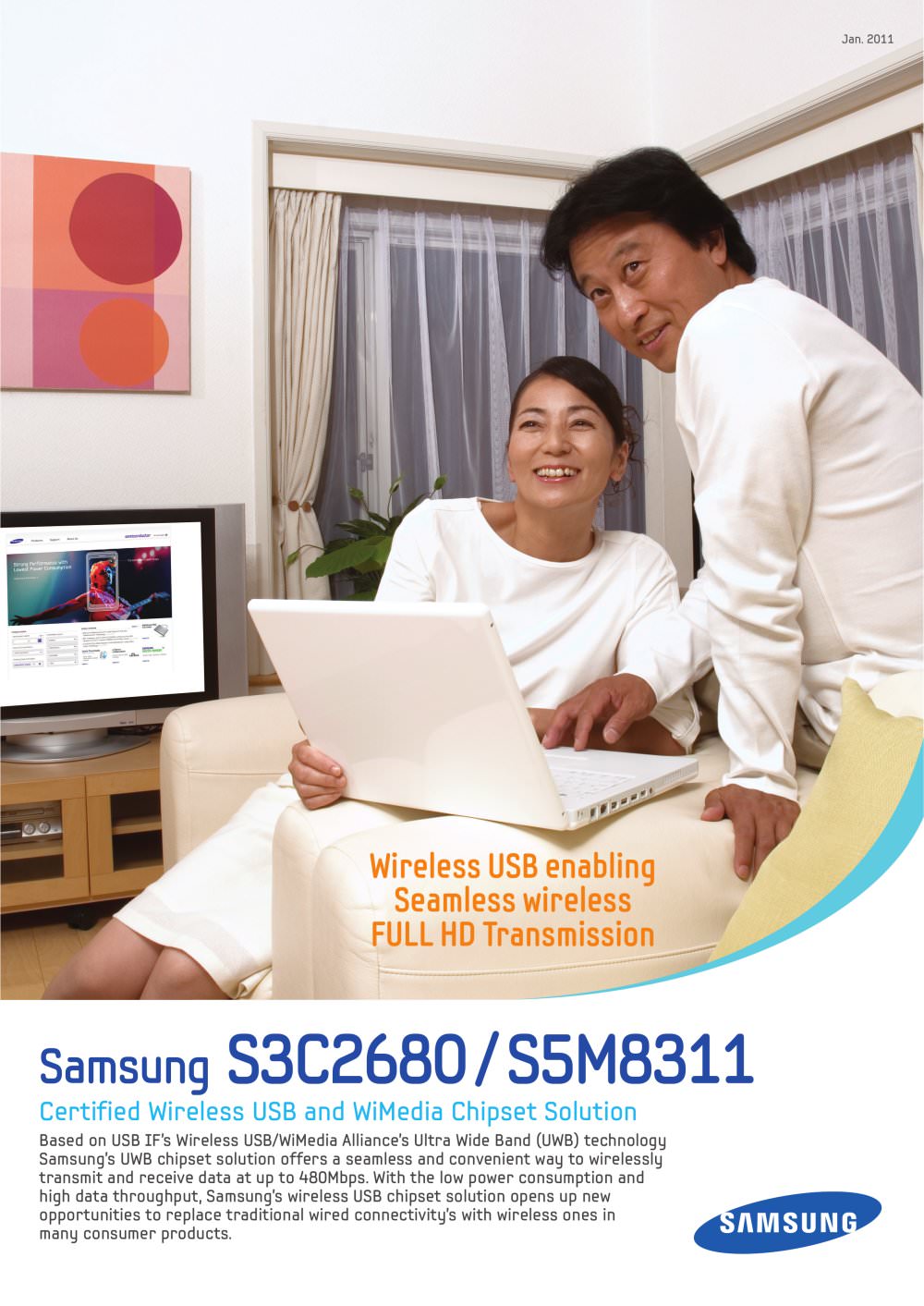

Jan. 2011 Samsung S3C2680 / S5M8311 Certified Wireless USB and WiMedia Chipset Solution Based on USB IF's Wireless USB/WiMedia Alliance's Ultra Wide Band (UWB) technology Samsung's UWB chipset solution offers a seamless and convenient way to wirelessly transmit and receive data at up to 480Mbps. With the low power consumption and high data throughput, Samsung's wireless USB chipset solution opens up new opportunities to replace traditional wired connectivity's with wireless ones in ^*^H many consumer products. ^eIIJ

Open the catalog to page 1

Samsung S3C2680/ S5M8311 Certified Wireless USB and WiMedia Chipset Solution Key Features & Benefits High Speed Wireless Data Transmission - 480 Mbps within 3 meter distance. Full HD Video transmission within 5 meters. - Support 3.1GHz~10.6 GHz frequency band Ease of Use ABC 123 - Direct replacement of wired USB with wireless USB capability - Backward compatible to wired USB - Secure Connection: low overhead security through data encryption Excellent Power Savings - 65nm low power process technology (S3C2680) - 1.2V Single supply (S5M8311) - Low Power Consumption: S3C2680 (Modem)+S5M8311 (RF)=565mW...

Open the catalog to page 2
