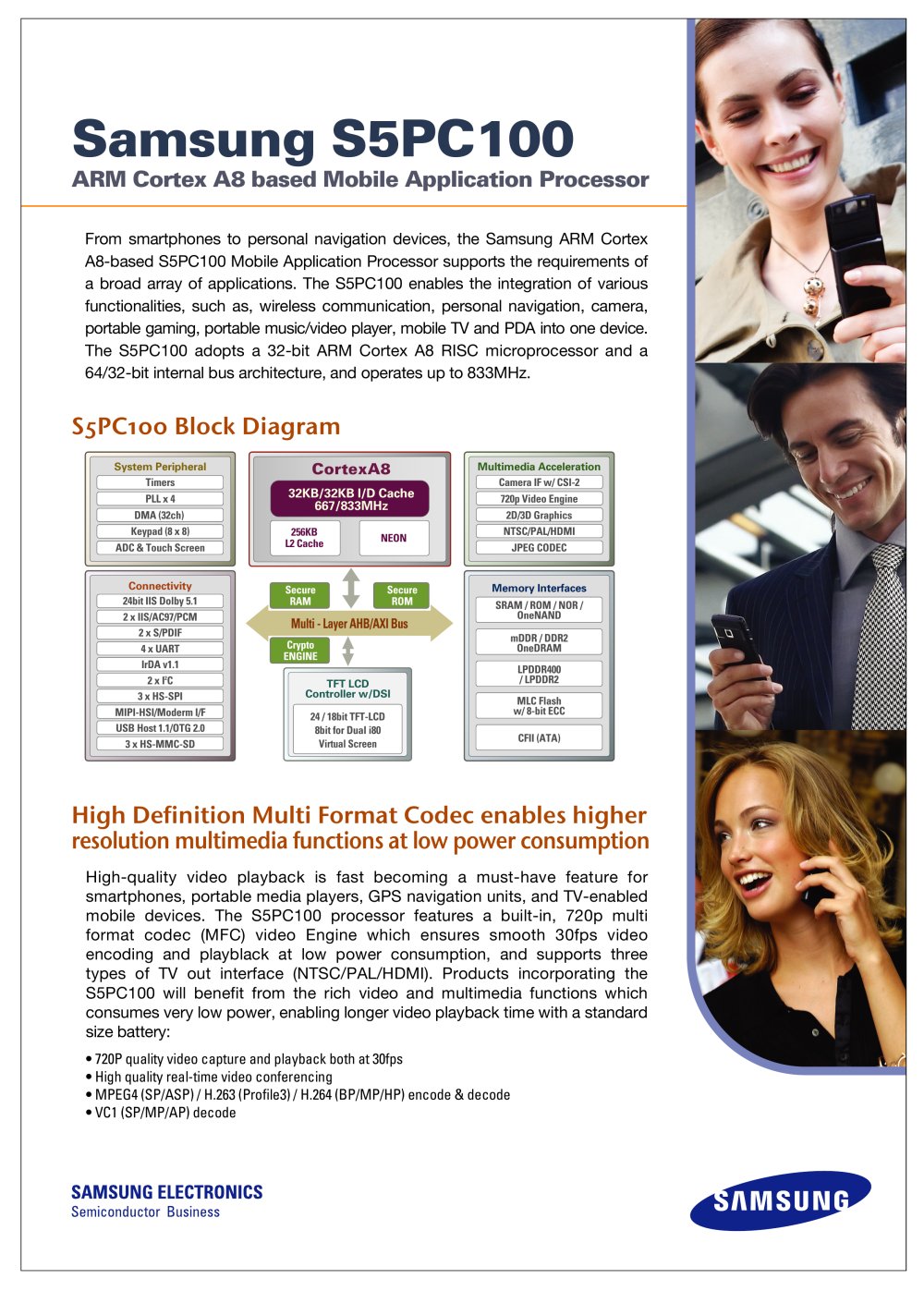

Samsung S5PC100 ARM Cortex A8 based Mobile Application Processor From smartphones to personal navigation devices, the Samsung ARM Cortex A8-based S5PC100 Mobile Application Processor supports the requirements of a broad array of applications. The S5PC100 enables the integration of various functionalities, such as, wireless communication, personal navigation, camera, portable gaming, portable music/video player, mobile TV and PDA into one device. The S5PC100 adopts a 32-bit ARM Cortex A8 RISC microprocessor and a 64/32-bit internal bus architecture, and operates up to 833MHz. CortexA8 Multimedia Acceleration Camera IF w/ CSI-2 32KB/32KB I/D Cache 667/833MHz 720p Video Engine 2D/3D Graphics NTSC/PAL/HDMI JPEG CODEC 256KB L2 Cache NEON t Memory Interfaces SRAM / ROM / NOR / OneNAND mDDR / DDR2 OneDRAM Connectivity 24bit IIS Dolby 5.1 2 x IIS/AC97/PCM 2 x S/PDIF 4 x UART Secure RAM Secure ROM Multi - Layer AHB/AXI Bus IrDA v1.1 LPDDR400 / LPDDR2 MLC Flash w/ 8-bit ECC CFII (ATA) 2 x I2C 3 x HS-SPI TFT LCD Controller w/DSI 24 / 18bit TFT-LCD 8bit for Dual i80 Virtual Screen MIPI-HSI/Moderm I/F USB Host 1.1/OTG 2.0 3 x HS-MMC-SD High Dfinition Multi Format Codec enables higher resolution multimedia functions at low power consumption High-quality video playback is fast becoming a must-have feature for smartphones, portable media players, GPS navigation units, and TV-enabled mobile devices. The S5PC100 processor features a built-in, 720p multi format codec (MFC) video Engine which ensures smooth 30fps video encoding and playblack at low power consumption, and supports three types of TV out interface (NTSC/PAL/HDMI). Products incorporating the S5PC100 will benefit from the rich video and multimedia functions which consumes very low power, enabling longer video playback time with a standard size battery: 720P quality video capture and playback both at 30fps 镕 High quality real-time video conferencing MPEG4 (SP/ASP) / H.263 (Profile3) / H.264 (BP/MP/HP) encode & decode Օ VC1 (SP/MP/AP) decode SAMSUNG ELECTRONICS Semiconductor Business

Samsung S5PC100 ARM Cortex A8 based Mobile Application Processor Additional S5PC100 Advantages The S5PC100 mobile application processor provides a cost-effective, low power, high-performance solution for any portable designs: Cortex A8 Based Application Processor: The S5PC100 is a highly optimized ARM Cortex A8 based application processor targeted for low power portable designs. The ARM subsystem includes separate 32KB Instruction and 32KB data caches, 256KB L2 caches, as well as a full MMU to handle virtual memory management. The Cortex A8 also provides support for JAVA acceleration, and includes...
