Product Datasheet: OPTIMUS Series

Product catalog summary

Overview: The document provides detailed information about the OPTIMUS series of DC energy compact systems by SALICRU, designed for telecommunications. These systems are rectifiers intended to supply small to medium power rates for telecommunication equipment, available in 300W and 700W modules.

Specifications: The systems can be configured with multiple rectifiers, battery, or outgoing distribution breakers to meet various power supply needs. They are compatible with 19” or ETSI cabinets and can connect up to two subracks in parallel for higher energy consumption applications. The main subrack can house up to three plug-in rectifiers, a supervision and control unit (MS-100), an outgoing distribution unit with eight breakers, an alarm card, and two battery string breakers.

Features: Key features include high-density power, easy installation and maintenance, high Mean Time Between Failures (MTBF), high efficiency, and low operating and maintenance costs. The systems support single or three-phase mains and have a modular design for scalability.

Technical Specifications: The systems offer a nominal output of 230V with a power factor close to one. They include various connectivity options such as RJ-45, RS-232, and RS-485 ports. The systems are protected against overtemperature and transients, with a dielectric strength of 1500 Vac for input and 800 Vac for output.

Environmental and Safety Standards: The systems comply with safety standards EN 60950-1 and EMC standard ETS 300386-2. They are marked with CE and certified for quality and environmental management under ISO 9001 and ISO 14001 by TÜV.

Applications: These systems are ideal for ensuring uninterrupted power supply to critical telecommunication systems, with features like battery charge current limiting and modularity for future upgrades.

Additional Options: Optional features include an LCD panel, monitoring software for Windows, and an RS-485 to TCP-IP converter.

Catalog excerpts

UNINTERRUPTIBLE POWER SUPPLY (UPS) + VOLTAGE STABILIZERS AND POWER LINE CONDITIONERS + SWITCH MODE POWER SUPPLY + INDUSTRIAL POWER SUPPLY + LIGHTING FLOW DIMMER STABILIZERS + STATIC INVERTERS SALICRU The DC energy systems of OPTIMUS series of SALICRU are rectifiers specially designed to supply small and medium power rates ofTelecommunication equipment. Manufactured in versions of 300 and 700W per module, it can be set as in quantity of rectifiers as batteryor outgoing distribution breakers in order to be adapted to all the power supply requirements.They are ready to be fitted in 19 or ETSI cabinets, being able to connect up to 2 subracks in parallel for those applications with higherenergy consumption. The main subrack has, in the maximum configuration, 3 plug-in rectifiers, supervision and control unit MS-100, outgoingdistribution unit with 8 breakers of different sizes, alarm card and 2 breakers to connect 2 battery strings.All the values and parameters of the system, as well as the alarm category can be set through a LCD panel or PC software(options). The DC energy systems of > Optimus 300 W Optimus 700 W Ready for single or three phase mains. High density power. Easy installation and maintenance. High Mean Time Between Failures (MTBF). High efficiency. Low operating and maintenance costs. Battery charge current with limit. Outgoing distribution unit plug-in type (8 breakers). Battery unit plug-in type (2 breakers).Ready to connect any kind of batteries. Front input / output connectors. Alarm card. Breaker size up to 30 A (OPTIMUS 300) or 60 A (OPTIMUS 700). Modularity: Up to 3 rectifiers plug-in type per subrack. Input power factor close to one. > LCD panel MS-100 Control Power supplyand alarm unit OPTIMUS series of SALICRU provides a high performance power supply to the always critical telecommunicationsystems, guaranteeing its perfect operating without any unexpected break. Besides, thanks to its modular nature, it can be upgradedaccording to your needs, improving your investment. > SALICRU SWITCH MODE POWER SUPPLY size="-3">

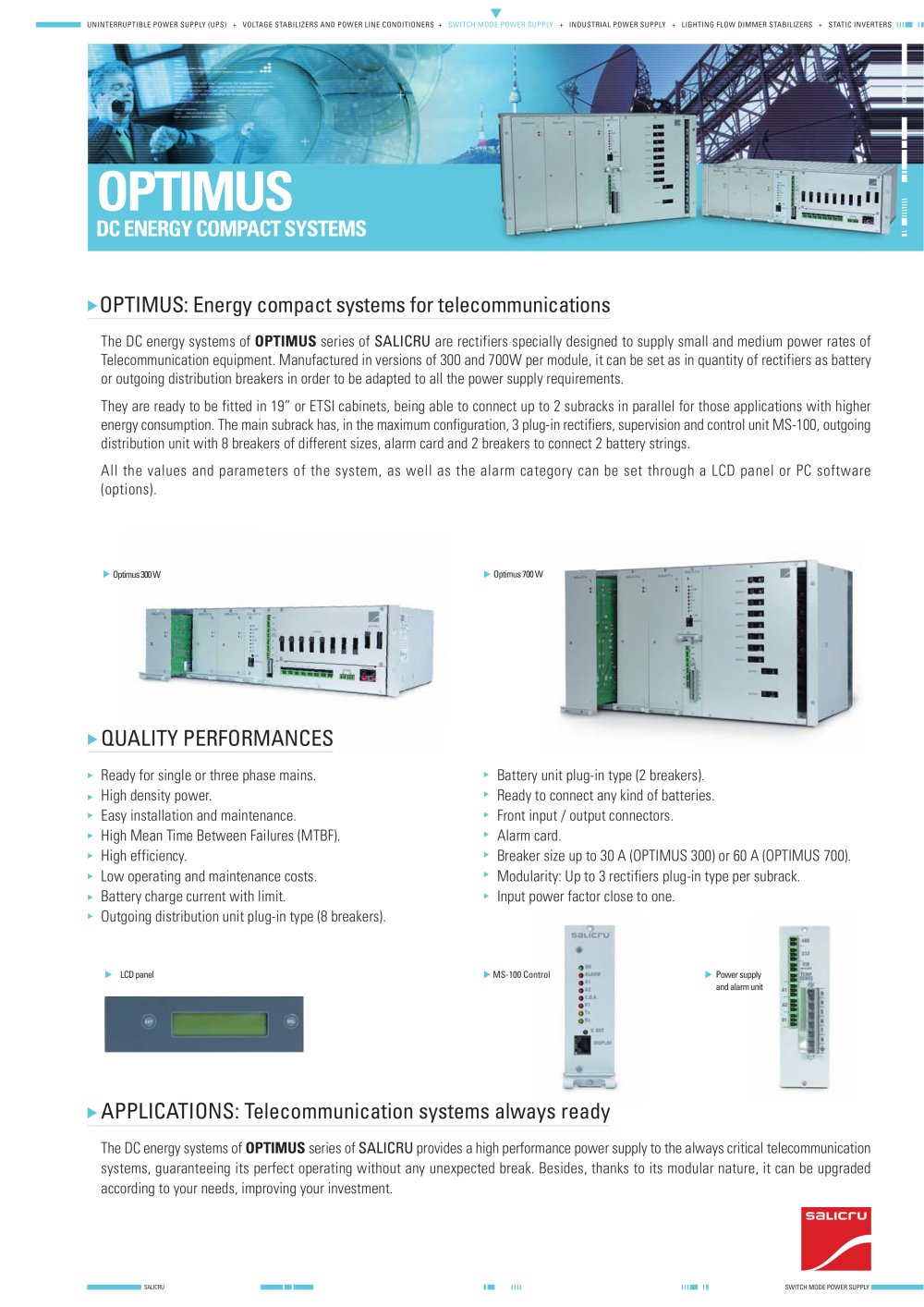

Open the catalog to page 1

15%1,4 A> 85% (50% to 100% of the load)Input fuse 10 A and overtemperature- 48 V to - 60 V300 W Against 5 kV transients ( 8 / 20 impulses 1. RJ-45 connector for LCD panel or ComputerOptions. > 2. 10 plug-in connections (8 for outgoing distribution and 2 for batteries). > 3. AC mains connector. > INPUT AC voltage AccuracyMaximum subrack power 230 V> 0,862,1 A50 / 60 Hz- 48 V 4. Alarm output: Urgent (A1), Non-urgent (A2) and Information (O1). > Power factorNominal current Maximum current Efficiency FrequencyProtectionDC voltage Voltage adjustment Voltage range > 0,953,6 A6,4 A> 90% (10% to 100%...

Open the catalog to page 2
