Product Datasheet: FAC P Series

Product Datasheet: FAC P Series
2Pages

Catalog excerpts

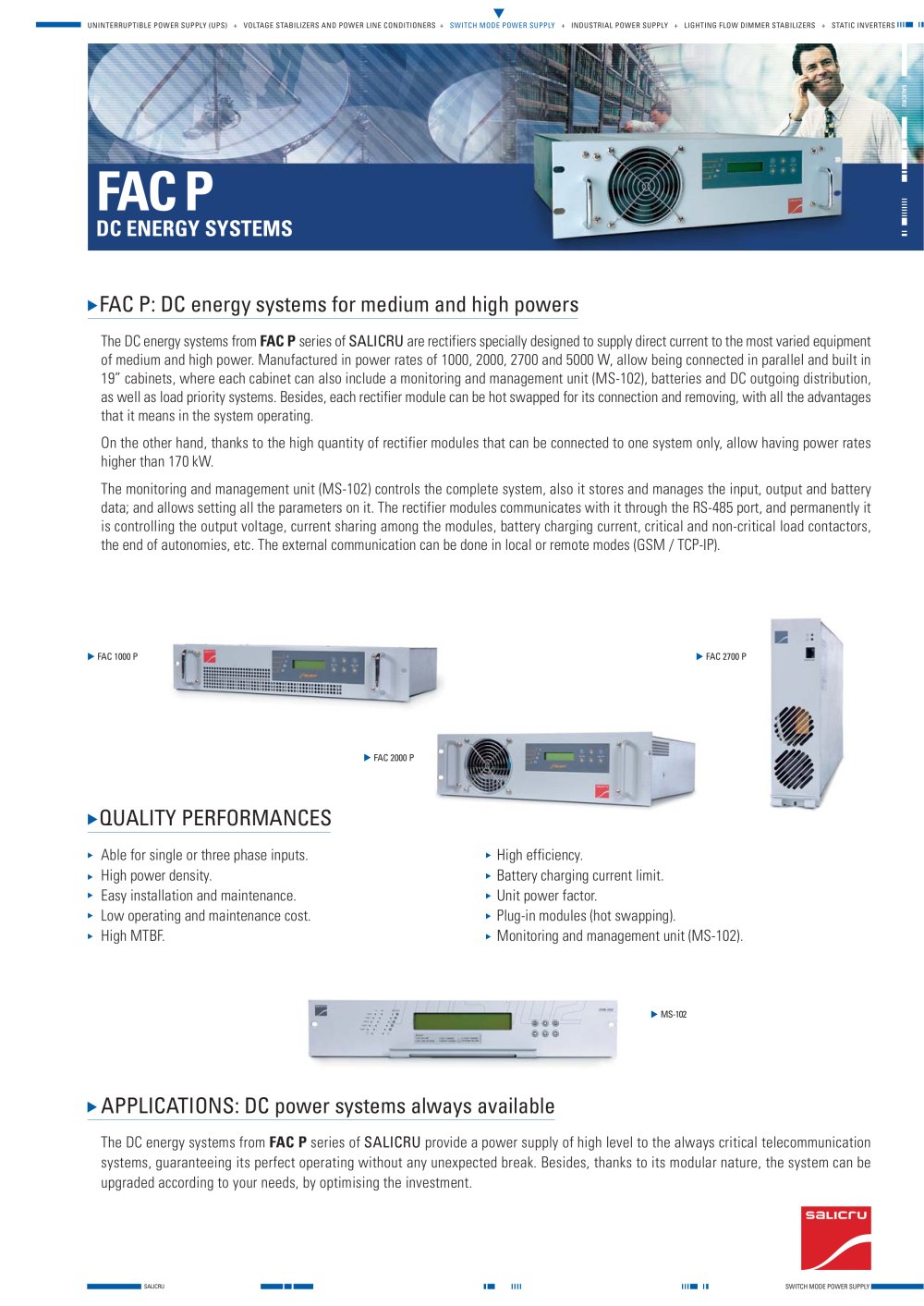

UNINTERRUPTIBLE POWER SUPPLY (UPS) + VOLTAGE STABILIZERS AND POWER LINE CONDITIONERS + SWITCH MODE POWER SUPPLY + INDUSTRIAL POWER SUPPLY + LIGHTING FLOW DIMMER STABILIZERS + STATIC INVERTERS SALICRU The DC energy systems from FAC P series of SALICRU are rectifiers specially designed to supply direct current to the most varied equipmentof medium and high power. Manufactured in power rates of 1000, 2000, 2700 and 5000 W, allow being connected in parallel and built in19 cabinets, where each cabinet can also include a monitoring and management unit (MS-102), batteries and DC outgoing distribution,as well as load priority systems. Besides, each rectifier module can be hot swapped for its connection and removing, with all the advantagesthat it means in the system operating.On the other hand, thanks to the high quantity of rectifier modules that can be connected to one system only, allow having power rateshigher than 170 kW.The monitoring and management unit (MS-102) controls the complete system, also it stores and manages the input, output and batterydata; and allows setting all the parameters on it. The rectifier modules communicates with it through the RS-485 port, and permanently itis controlling the output voltage, current sharing among the modules, battery charging current, critical and non-critical load contactors,the end of autonomies, etc. The external communication can be done in local or remote modes (GSM / TCP-IP). The DC energy systems from > FAC 1000 P FAC 2700 P FAC 2000 P Able for single or three phase inputs. High power density. Easy installation and maintenance. Low operating and maintenance cost. High MTBF.High efficiency.Battery charging current limit. Unit power factor. Plug-in modules (hot swapping). Monitoring and management unit (MS-102). > MS-102 FAC P series of SALICRU provide a power supply of high level to the always critical telecommunicationsystems, guaranteeing its perfect operating without any unexpected break. Besides, thanks to its modular nature, the system can beupgraded according to your needs, by optimising the investment. > SALICRU SWITCH MODE POWER SUPPLY size="-3">

Open the catalog to page 1

< 1 mV< 3 mV Up to 80% in 4 hours (0,2 C) 1000 W Active parallel > Power factor corrector (PFC)TypeCharging curveCharging current Yes > (1) ProtectionRecharging time Against 5 kV peaks (8 / 20 s )Pb-Ca or Ni-CdI / U constant0,1 to 0,3 C adjustableAgainst overvoltages and undervoltagesIP20< 50 dBOperating temperatureForcedRelative humidityMaximum operating altitudeMean Time To Repair (MTTR)LCD panel- 20 C > ProtectionsProtection degree accordingwith the standardsAcoustic noise at 1 metre > Dielectric strengthInsulationStorage temperature 2000 V at 1 minute> 20 M Cooling General alarm...

Open the catalog to page 2
